Page 18

•
2/1 and 2/2 40 GbE rear-panel ports
•
2/3 and 2/4 40 GbE rear-panel ports
•
3/1-4 and 3/5-8 4x10 GbE rear-panel breakout ports
NOTE
You can add an ICX6650-2P40G-LIC-POD license to any configuration.
1
2/1-2: Any pair of QSFP+ ports—2x40
GbE ports (2/1-2, 2/3-4), 2 4x10 GbE
ports (3/1-4,3/5-8)
2
2/4
3
3/1-8: 4x10 GbE breakout ports (3/1-4,
3/5-8)

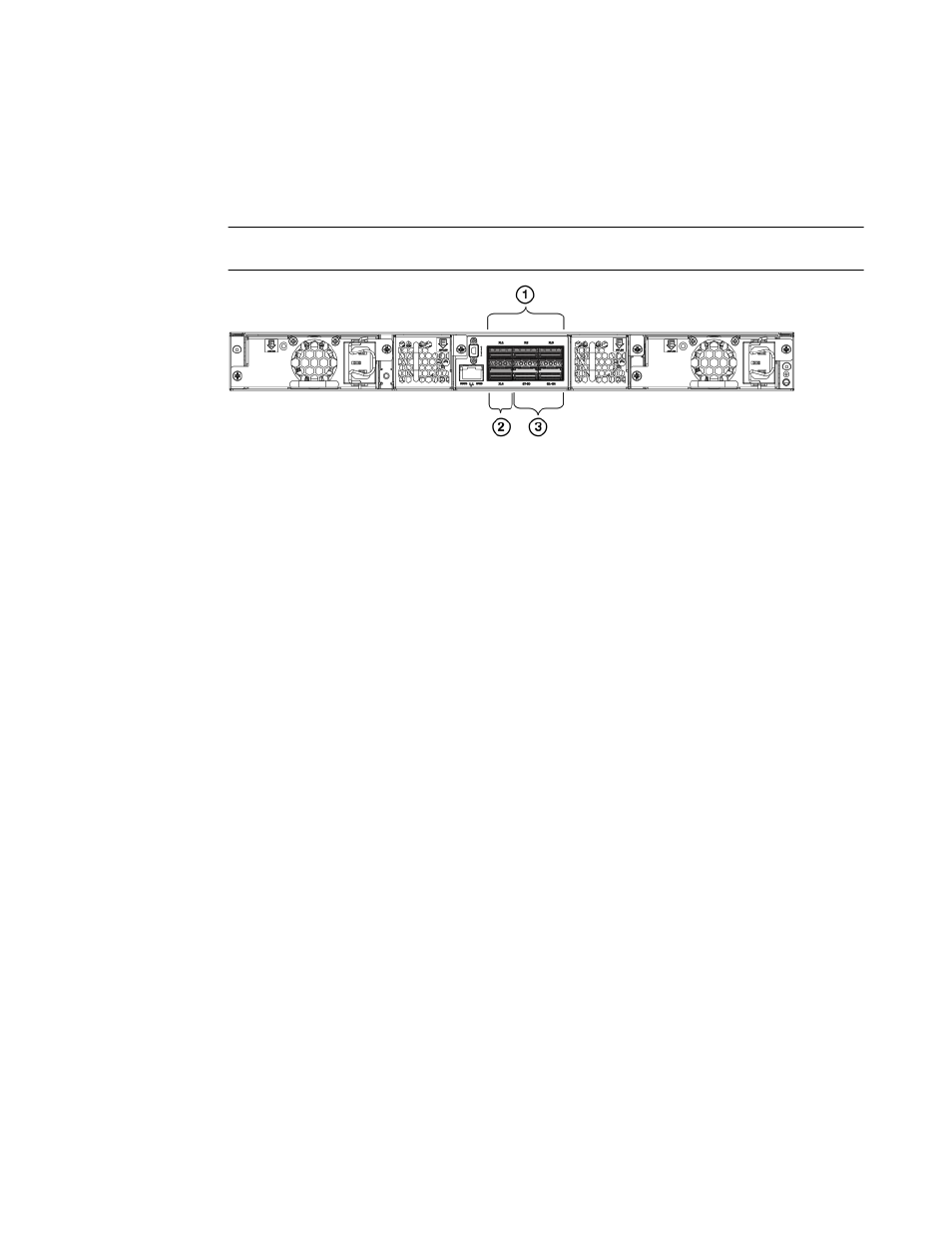

FIGURE 4 Brocade ICX 6650 rear-panel ports
The breakout ports support one of the following options:
•
Direct-attached QSPF+ to 4 SFP+ copper breakout cables (Part number 40G-QSFP-4SFP-C-/
0101/0301/0501)
•
Breakout-capable SR4 QSPF+ optical transceiver (Part number 40G-QSFP-SR4-INT)
No trial licenses are available with Ports on Demand licensing.
Brocade ICX 6650 slot and Ethernet port numbering
Many CLI commands require users to enter port numbers as part of the command syntax, and many
show command outputs display port numbers. The port numbers are entered and displayed in stack-
unit/slot number/port number format. In all Brocade ICX 6650 inputs and outputs, the stack-unit
number is always 1.
Brocade ICX 6650 slot and Ethernet port numbering
16
Brocade ICX 6650 Hardware Installation Guide
53-1003083-01
