The Brocade ICX 6650 contains the following slots and Ethernet ports:
•

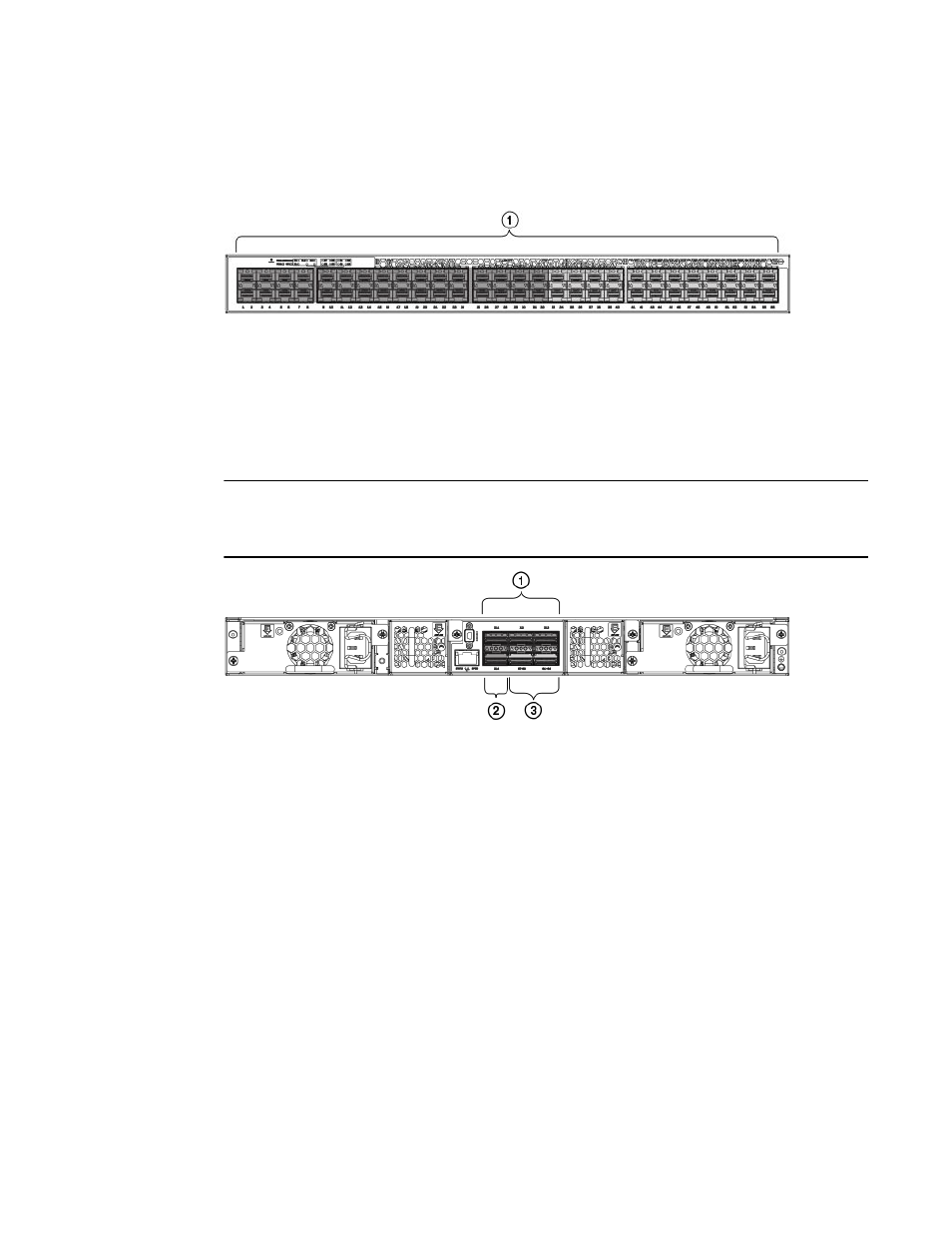

Slot 1 is located on the front of the Brocade ICX 6650 switch and contains ports 1 through 56,
which are 1/10 GbE SFP+ ports. Refer to the following figure.
1
Slot 1
FIGURE 5 Brocade ICX 6650 front-panel ports
•
Slot 2 is located on the rear of the Brocade ICX 6650 switch and contains ports 1 through 3 on the
top row and port 4 on the bottom row. These ports are 40 GbE QSFP+ ports. Refer to the following
figure.
NOTE
The QSFP+ 40GbE LR4 optical transceiver is supported in ports 1 and 2 only. When the module is
inserted into a stack-unit/slot number/port number combination that is not 1/2/1 or 1/2/2, the following
error message displays: “QSFP LR-4 optics not supported on port port-number.”
1
Slot 2
2
Slot 2
3
Slot 3
FIGURE 6 Brocade ICX 6650 rear-panel ports
•
Slot 3 is located on the rear of the Brocade ICX 6650 switch and contains ports 1 through 8. These
ports are 4x10 GbE breakout ports and require the use of a breakout cable. Refer to the previous
figure.
Supported transceivers and cables
The Brocade ICX 6650 supports the following transceivers and cables:
•
1 GbE
Supported transceivers and cables
Brocade ICX 6650 Hardware Installation Guide
17
