QSFP+ to 4 SFP+ (4x10 GbE) direct-attach copper breakout cables
•
QSFP+ (MTP 1x8 or 1x12) optical breakout cables

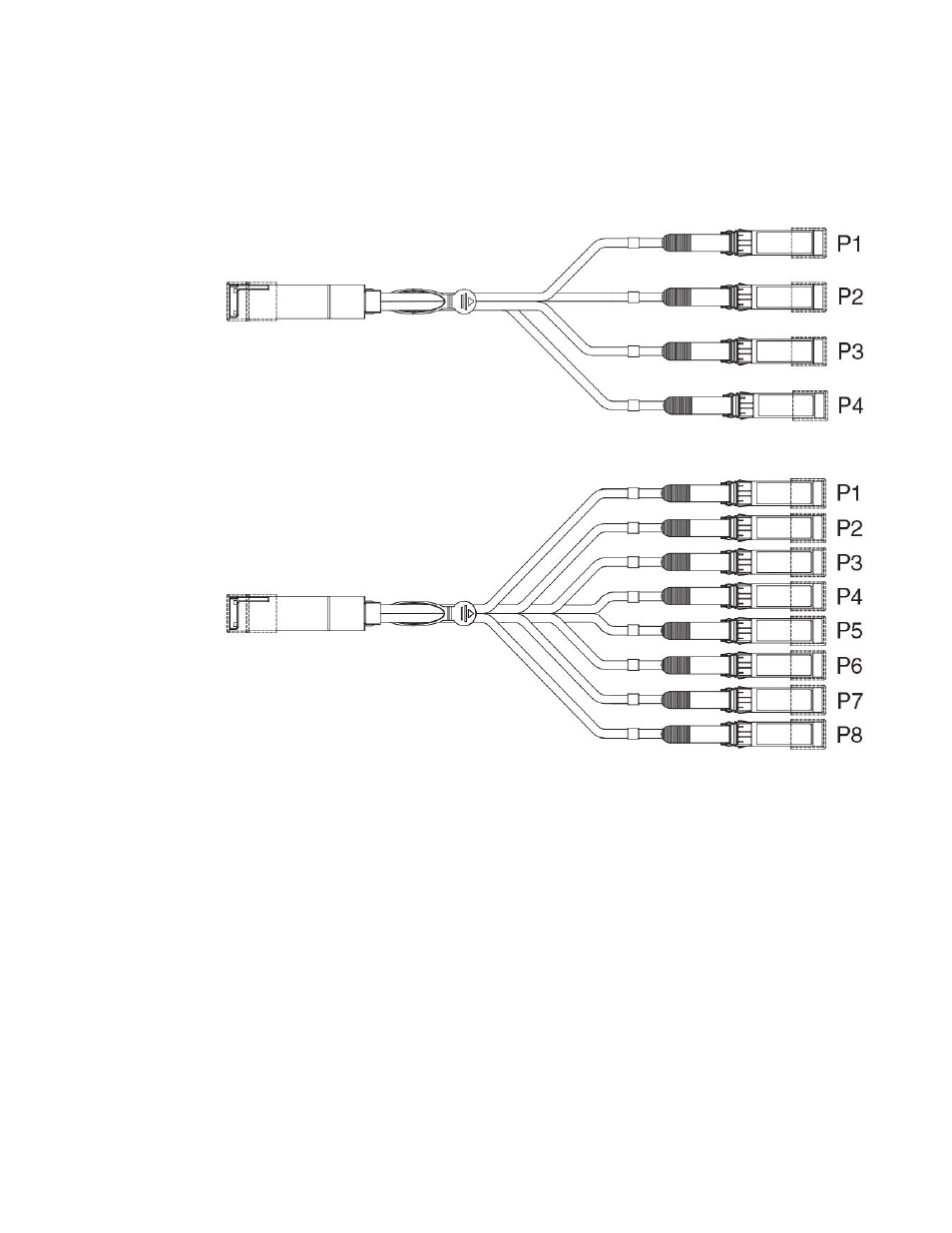

FIGURE 7 QSFP+ to 4 SFP+ (4x10 GbE) direct-attach copper breakout cable
FIGURE 8 QSFP+ (MTP 1x8 or 1x12) optical breakout cable
Brocade ICX 6650 Overview
Brocade ICX 6650 Hardware Installation Guide
19
53-1003083-01
