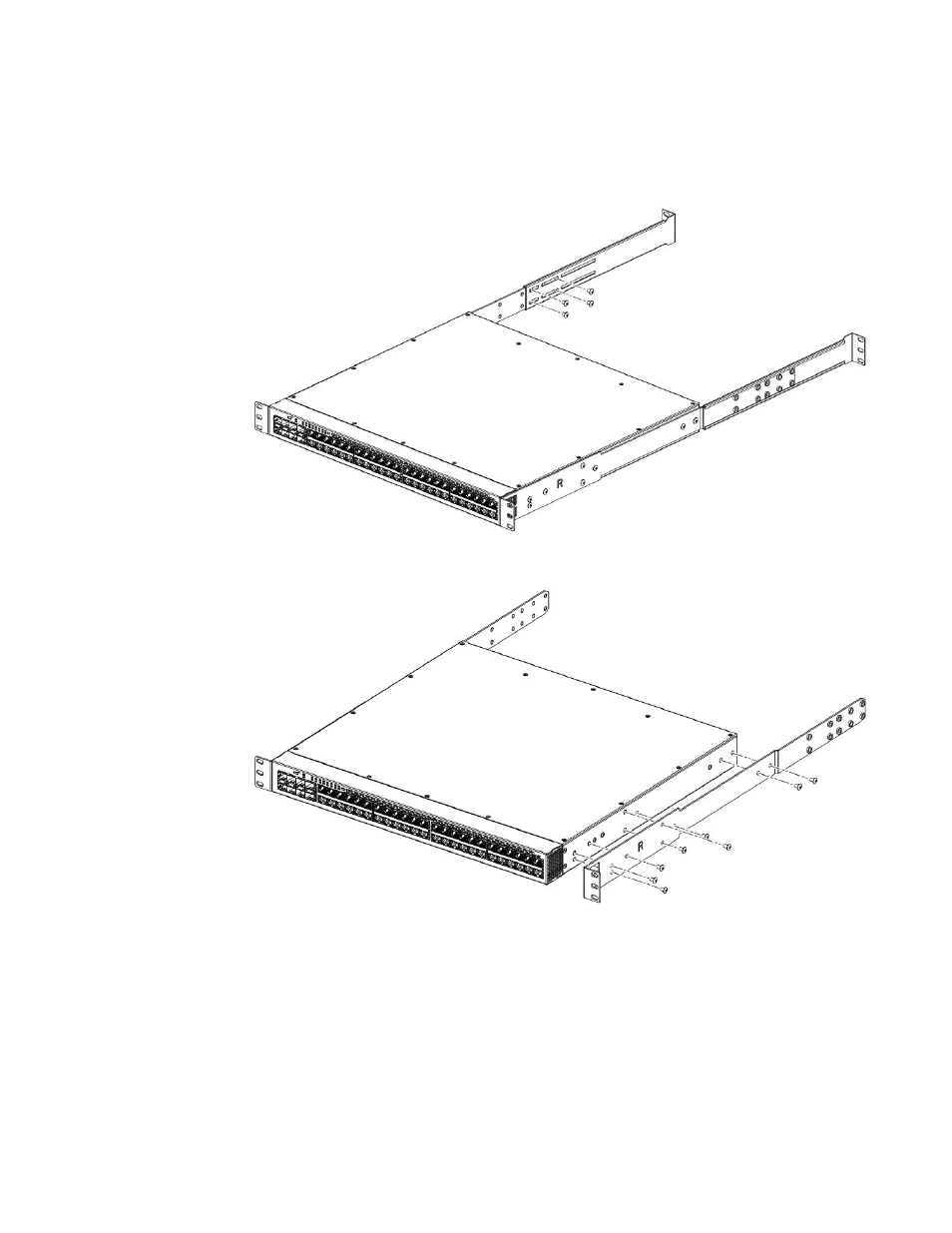

The following figures show exploded views of the optional 4-post rack mount kit.
FIGURE 13 Optional 4-post rack mount kit, rear attachment
FIGURE 14 Optional 4-post rack mount kit, side attachment
4. Position the switch in the cabinet, providing temporary support under the switch until the rail kit is
secured to the cabinet.
5. Attach the front right bracket to the rail rack using two 10-32 x 5/8 in. screws and the appropriate
round-hole or square-hole retainer nuts.
6. Repeat step 5 to attach the left front bracket to the left front rack rail and tighten all 10-32 x 5/8 in.
screws to a torque of 25 in-lb (29 cm-kg).
7. Attach the rear right bracket to the rail rack using two 10-32 x 5/8 in. screws and the appropriate
round-hole or square-hole retainer nuts.
8. Repeat step 7 to attach the rear left bracket to the rail rack and tighten all 10-32 x 5/8 in. screws to
a torque of 25 in-lb (29 cm-kg).
Proceed to
Attaching a PC or terminal on page 32.
