Brocade ICX 6650 Hardware Installation Guide User Manual
Page 40
4.
Insert the DC power supply source wires into the DC wiring assembly, matching the terminals.

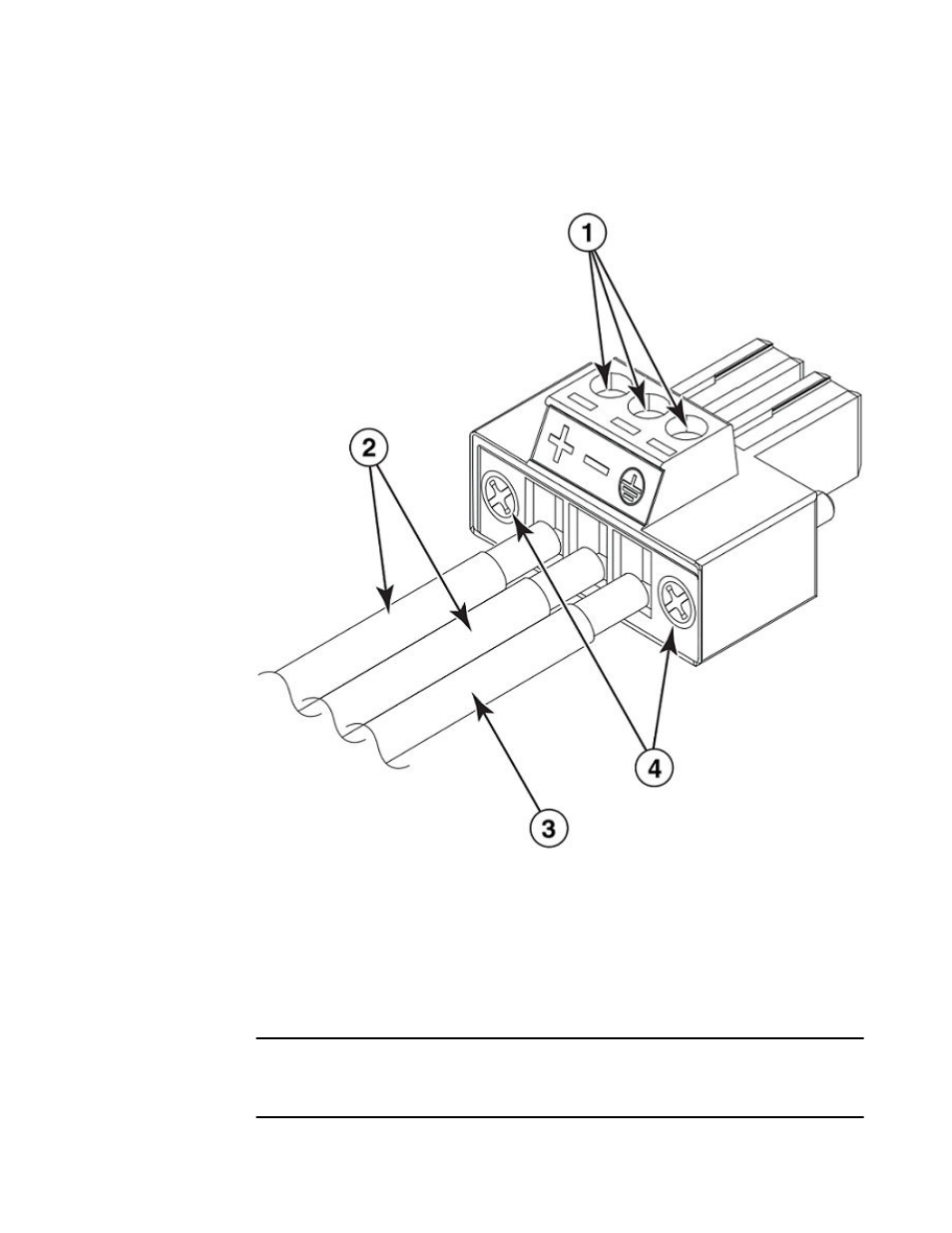

FIGURE 18 DC power supply wiring assembly
1 Wire tightening screws
2 DC power source wires
3 Earth ground wire
4 Assembly screws
5.
Use the wire tightening screws to secure the wires.
6.
Insert the earth ground wire into the ground terminal on the DC wiring assembly.
ATTENTION
This equipment installation must meet NEC/CEC Code requirements. Consult local authorities for
regulations.
Installing the Brocade ICX 6650
38
Brocade ICX 6650 Hardware Installation Guide
53-1003083-01
