Eight 32-10 retainer nuts (for square-hole rack rails). Refer to item 2 in the following figure.

Eight 32-10 retainer nuts (for round-hole rack rails). Refer to item 3 in the following figure.

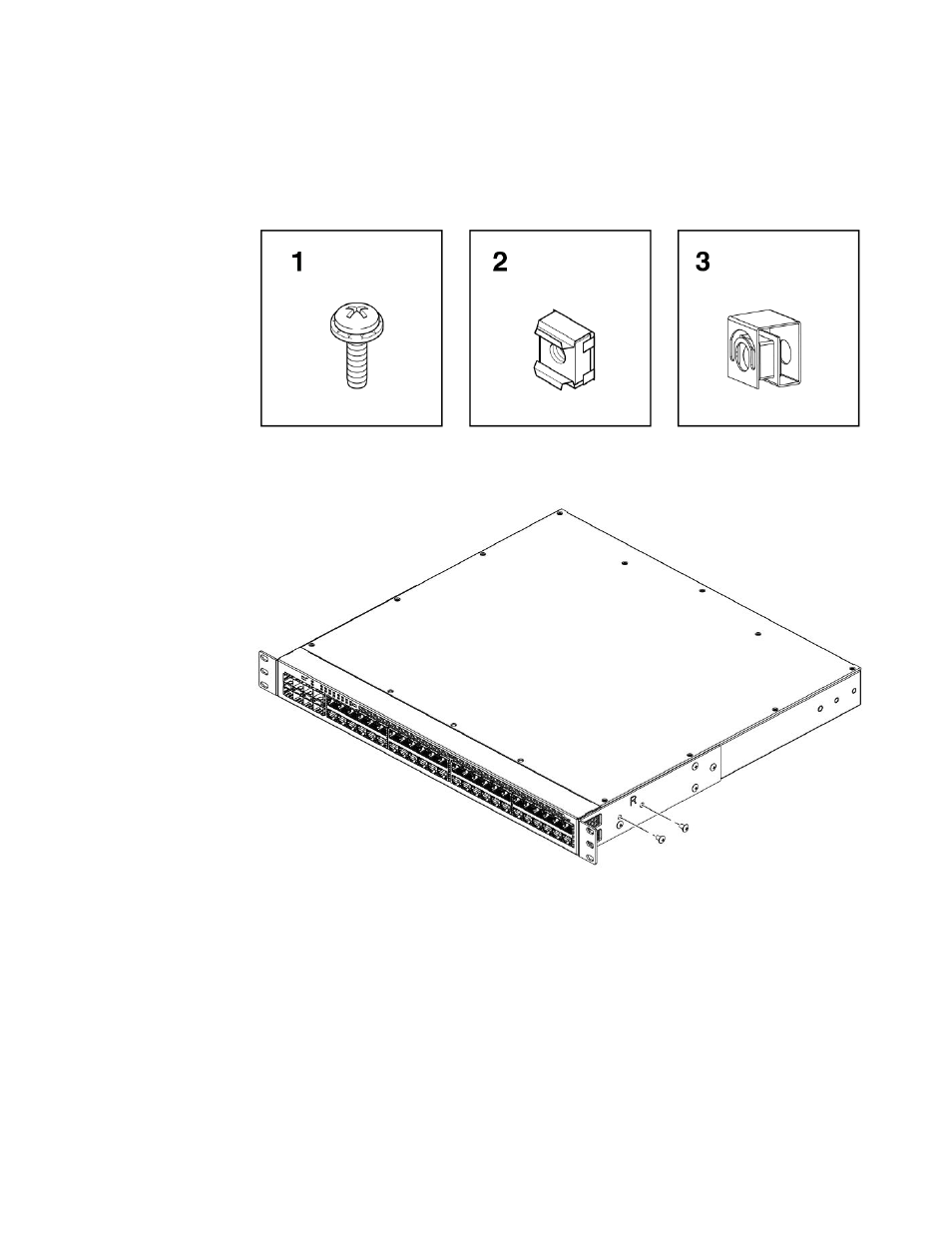

FIGURE 9 2-post screws and retainer nuts

2.

Attach the mounting brackets to the sides of the device using the 8-32 x 5/16 in. screws.

FIGURE 10 Attaching the mounting brackets for aBrocade ICX 6650

3.

Position the device in the cabinet, providing temporary support under the switch until the rail kit is
secured to the cabinet.
