In the following figure, the up-arrow port status LEDs for the 1/10 GbE ports correspond to the upper,
odd-numbered ports; the down-arrow port status LEDs correspond to the lower, even-numbered ports.

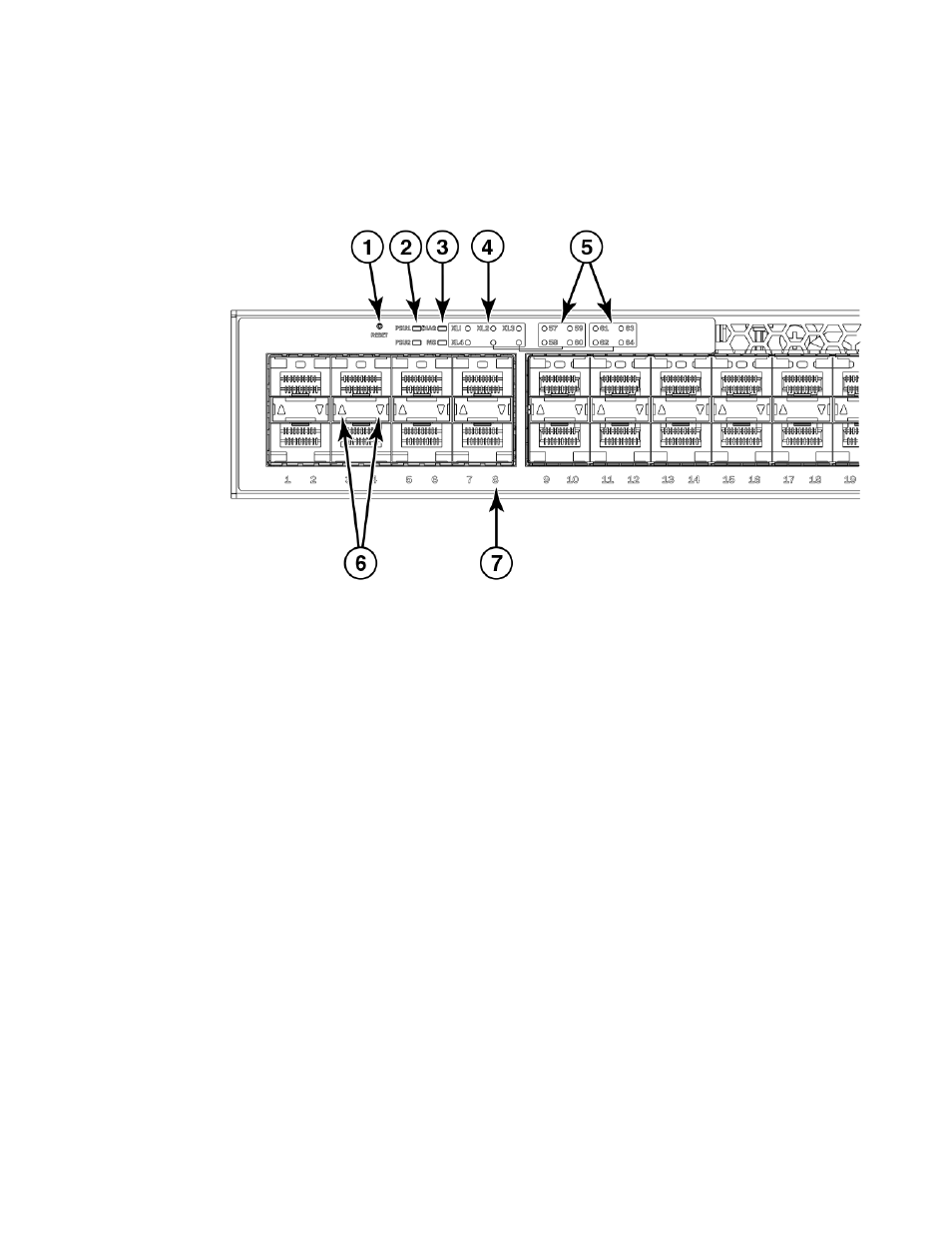

FIGURE 20 Brocade ICX 6650 front panel LEDs and port numbering

1.

Push button reset

2.

PSU1 and PSU2 status LEDs

3.

DIAG and MS status LEDs

4.

40 GbE QSFP rear port status/activity LEDs

5.

4x10 GbE QSFP-to-SFP breakout port status/activity LEDs

6.

1/10 GbE port status LEDs

7.

Port numbering (odd-numbered port at top, even-numbered port at bottom)

Brocade ICX 6650 rear panel LEDs

The Brocade ICX 6650 has the following LEDs on the rear panel:

Brocade ICX 6650 rear panel LEDs
