Brocade ICX 6650 Hardware Installation Guide User Manual
Page 39
1.
Remove the previously installed power supply from the appropriate slot by removing the chassis
attachment screws located in the upper right and lower left of the power supply unit using a flat-
head screwdriver.

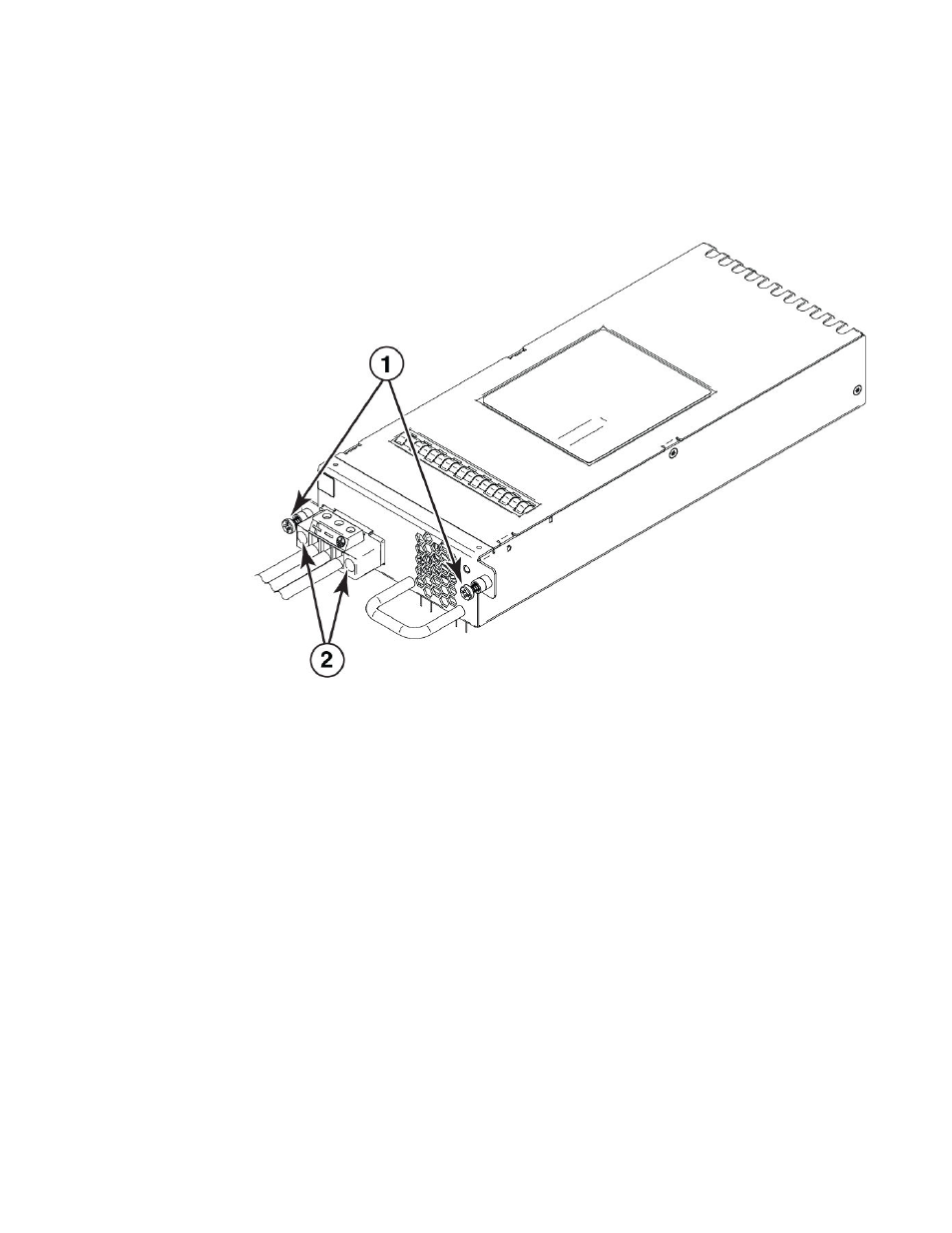

FIGURE 17 DC power supply screws
1 Chassis attachment screws
2 Assembly screws
2.
Before opening the package that contains the DC power supply, touch the bag of the switch casing
to discharge any potential static electricity. Brocade recommends using an ESD wrist strap during
installation.
3.
Remove the DC power supply from the anti-static shielded bag.
Installing the Brocade ICX 6650
Brocade ICX 6650 Hardware Installation Guide
37
53-1003083-01
