Switching between Remote and Local Modes
The soft key menu does not show REM/LOC, if Control > Contact input-registration/
AUX(Alarm mode... > Remote setting is set to Off. Remote input cannot be used for the
target setpoint when the secondary loop of cascade control is selected or during program
control. Thus, there is no remote/local switching in these cases.
1.
Use the
arrow keys
to move the cursor to the desired control loop.
2.
Press the
REM/LOC soft key
.

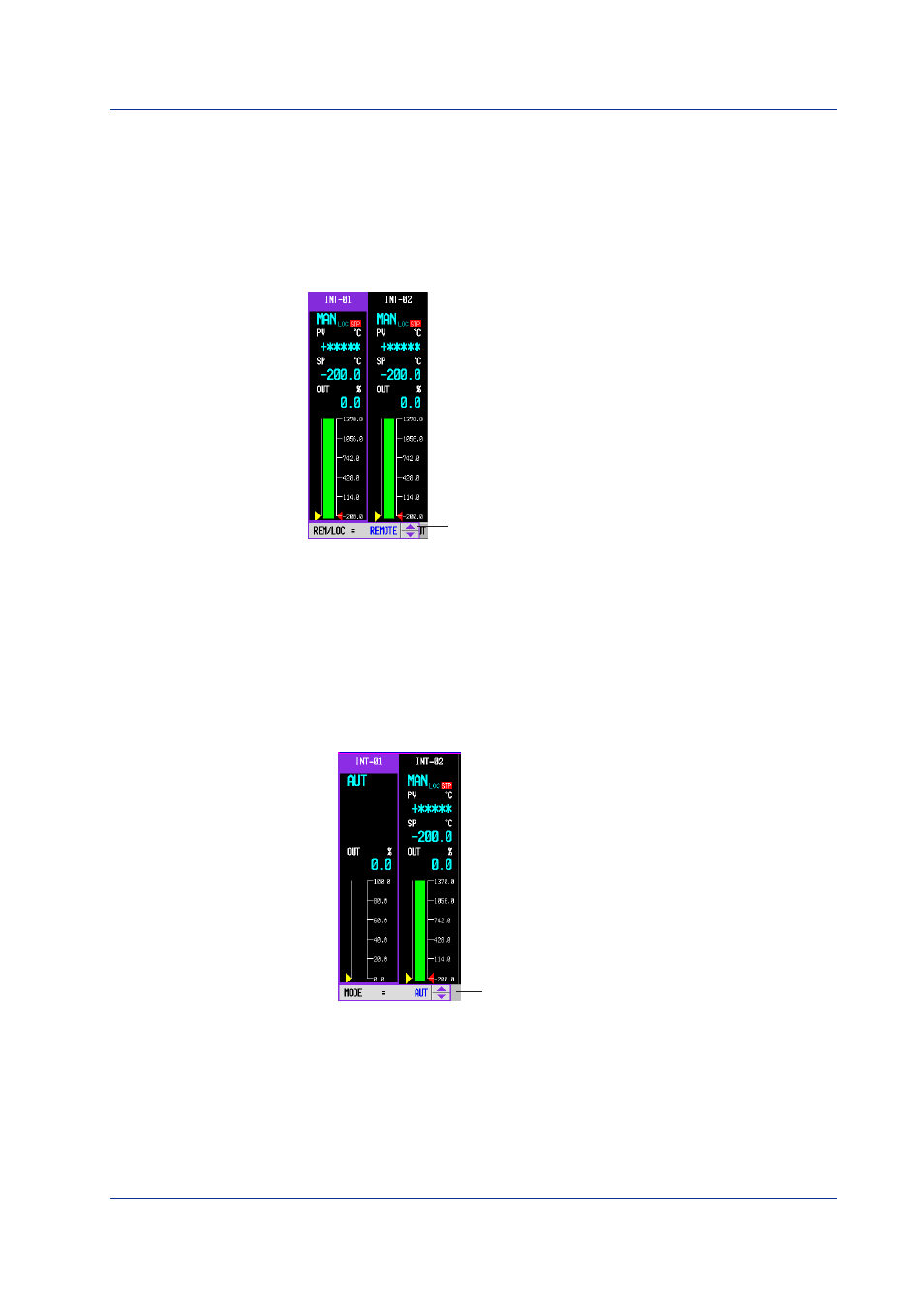

A pop-up window for switching between remote and local appears.
Window for switching between
remote and local
3.
Select REMOTE or LOCAL using the
up and down arrow keys
.
4.
Press the
DISP/ENTER key
to confirm the changes.
Switching between Automatic and Manual for the Analog Retransmission Loop
You can switch the output mode for the control loop specified for analog retransmission.
When set to AUTO, the computed result of analog retransmission is output. When set to
MAN, you can set the direct output value.
1.
Use the
arrow keys
to move the cursor to the desired control loop.
2.
Press the
MODE soft key
.
A pop-up window switching between auto and manual appears.
Auto/manual switching window
3.
Select AUTO or MAN using the
up and down arrow keys
.
4.
Press the
DISP/ENTER key
to confirm the changes.
