Yokogawa Data Acquisition with PID Control CX2000 User Manual

Page 13

IM 04L31A01-02E

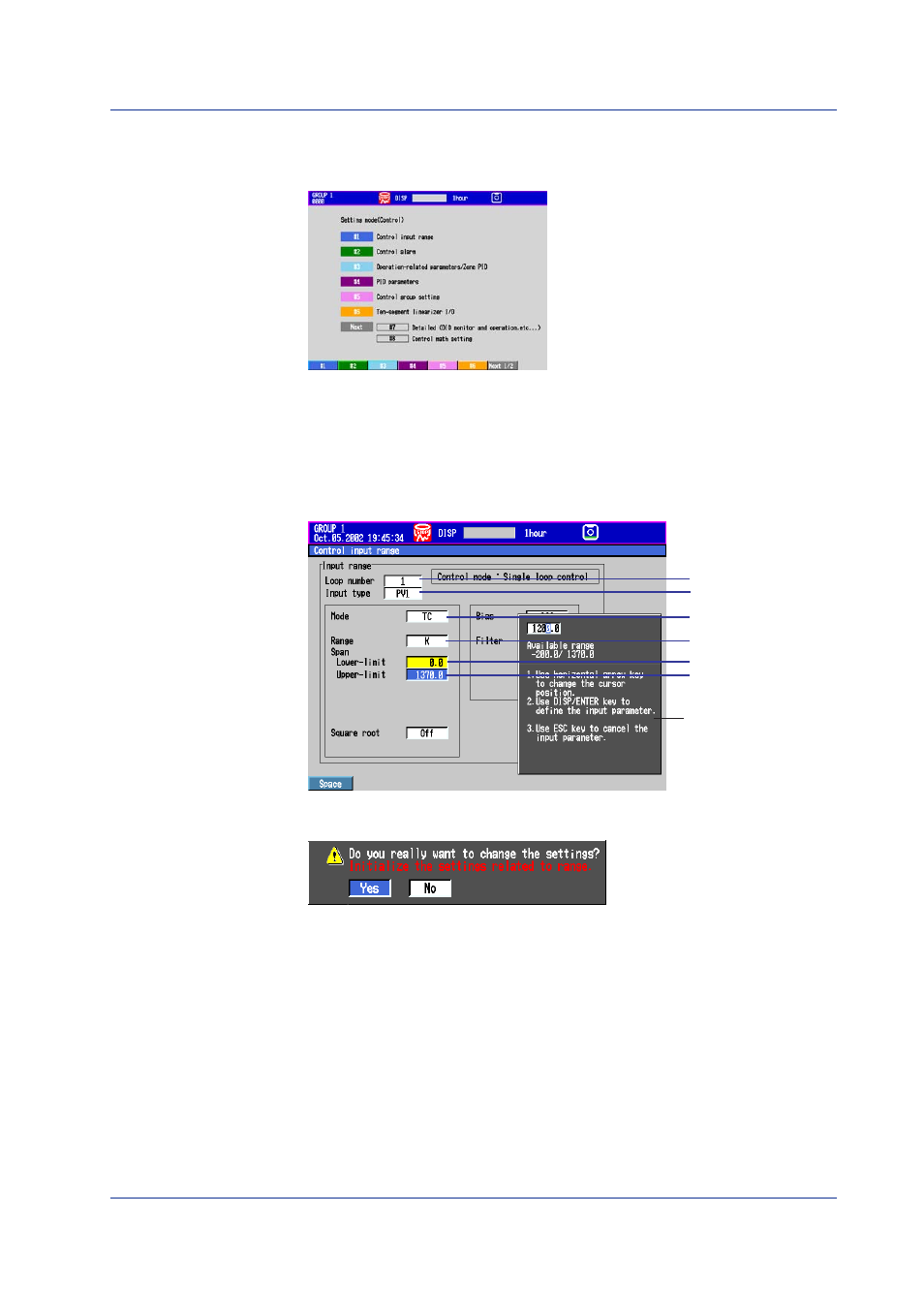

Setting the Control Input Range in Setting Mode

From the operation display, click the

MENU key

to display the control setting menu

shown below.

Press the

#1 soft key

(Control input range).

Press the

arrow keys

to move the cursor (blue) to the setup item box, press the

soft

key

of each value, and press the

DISP/ENTER key

To set the measurement span (span lower/upper-limit, press the

Input soft key

open a numeric entry pop-up window as shown in the figure below. Enter the value
using the

Character/Number key

and the

Space soft key

and then press the

DISP/

ENTER key

Select 1

Select TC

Select K

Select PV1

Set to 0.0

Set to 1200.0

Numeric entry pop-up
window

Press the

DISP/ENTER key

A confirmation window shown below opens.

Press the

DISP/ENTER key

to confirm the settings.

Examples of Control Setup Operation
