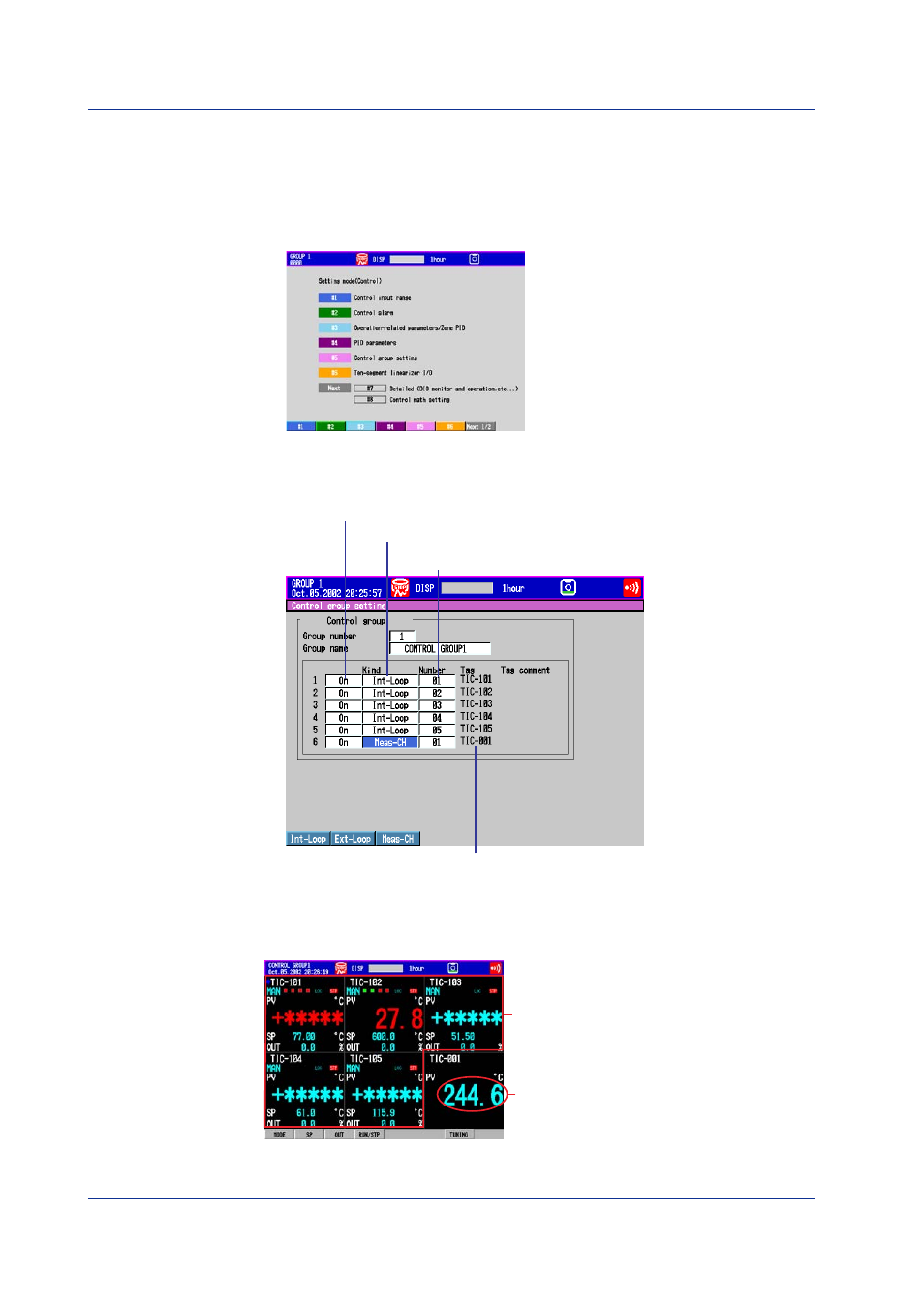

Setting the Display Items on the Control Group Display (Control Group Setting)
Below are the procedures for displaying loops 1 to 5 and measurement channel (input
channel for measurement) 1 on the control group display (group name: CONTROL
GROUP 1) of group number 1.
1.
From the operation display, click the
MENU key
to display the control setting menu
shown below.
2.
Press the
#5 soft key
to show the Control group setting display.
3.
Press the
arrow keys
to move the cursor (blue) to the setup item box, press the
soft
key
of each value according to the following figure.
Select On
Select Int-Loop or Meas CH
If internal loop, select the loop number.
If measurement channel, select the channel number.
Tag display
(Tag is set using the #3 Operation related/zone PID
setting display)
4.
Press the
DISP/ENTER key
to confirm the entry.
Control Group Display Example after Setup
Measured value
measurement
channel 1
Control status
display of
internal loops
1 to 5
Examples of Control Setup Operation
