Changing the Target Setpoint
1.
Use the
arrow keys
to move the cursor to the desired control loop.
2.
Press the
SP soft key
.
The SP modification pop-up window appears. The window shows the current target
setpoint.

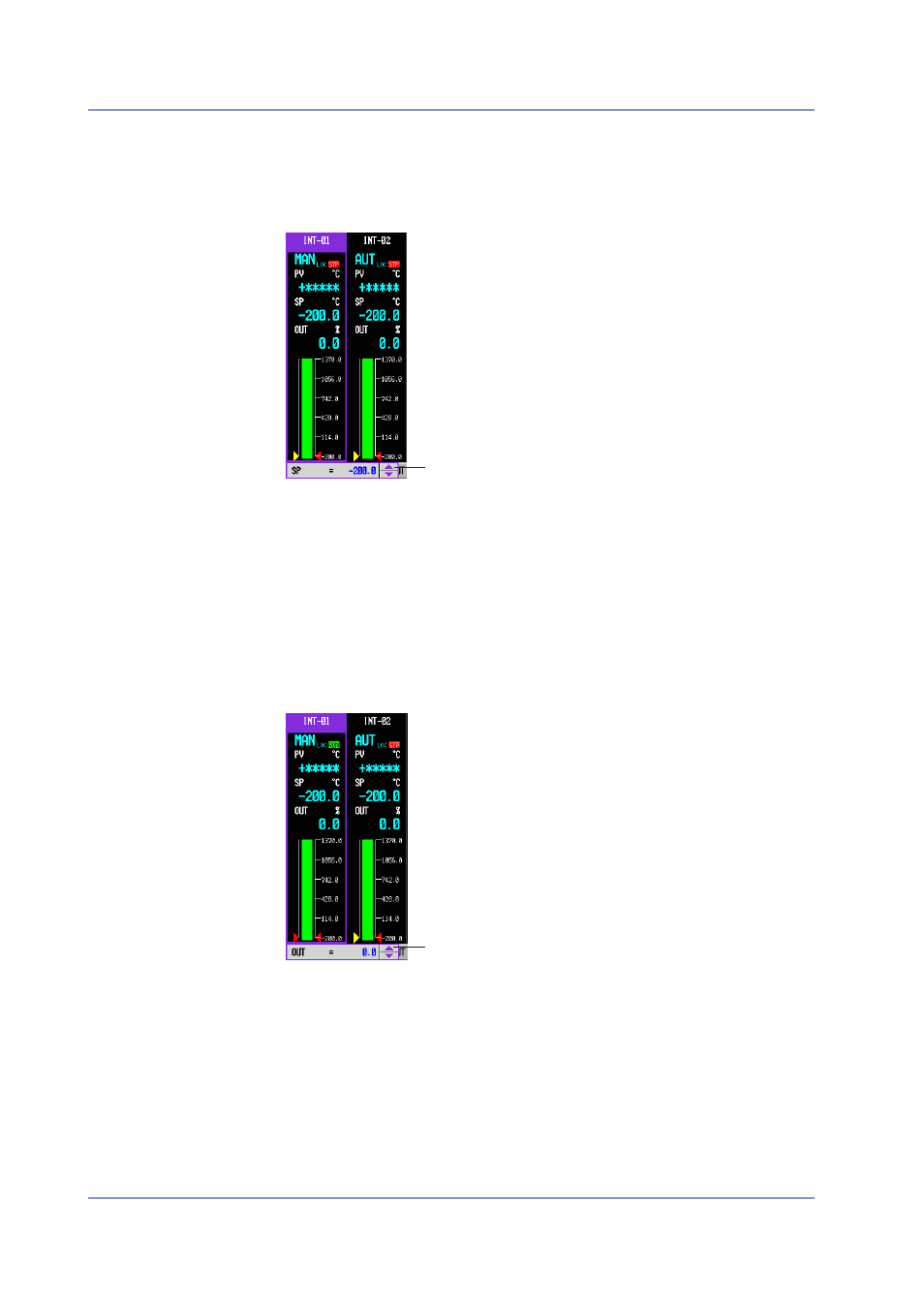

Window for changing the
target setpoint
3.
Change the target setpoint using the
up and down arrow keys
.
4.
Press the
DISP/ENTER key
to confirm the changes.
Changing the Control Output
The following operation cannot be performed during auto operation, when operation is
stopped, or when the primary loop of cascade control is selected. When the operation is
stopped, the preset value is output.
1.
Use the
arrow keys
to move the cursor to the desired control loop.
2.
Press the
OUT soft key
.
The OUT modification pop-up window appears. The window shows the current
control output.
Window for changing the
control output
3.
Change the control output using the
up and down arrow keys
.
The control output is set to the new value at this point.
4.
Press the
DISP/ENTER key
to complete the procedure.
Switching the Operation Mode
