Yokogawa Data Acquisition with PID Control CX2000 User Manual

Page 24

IM 04L31A01-02E

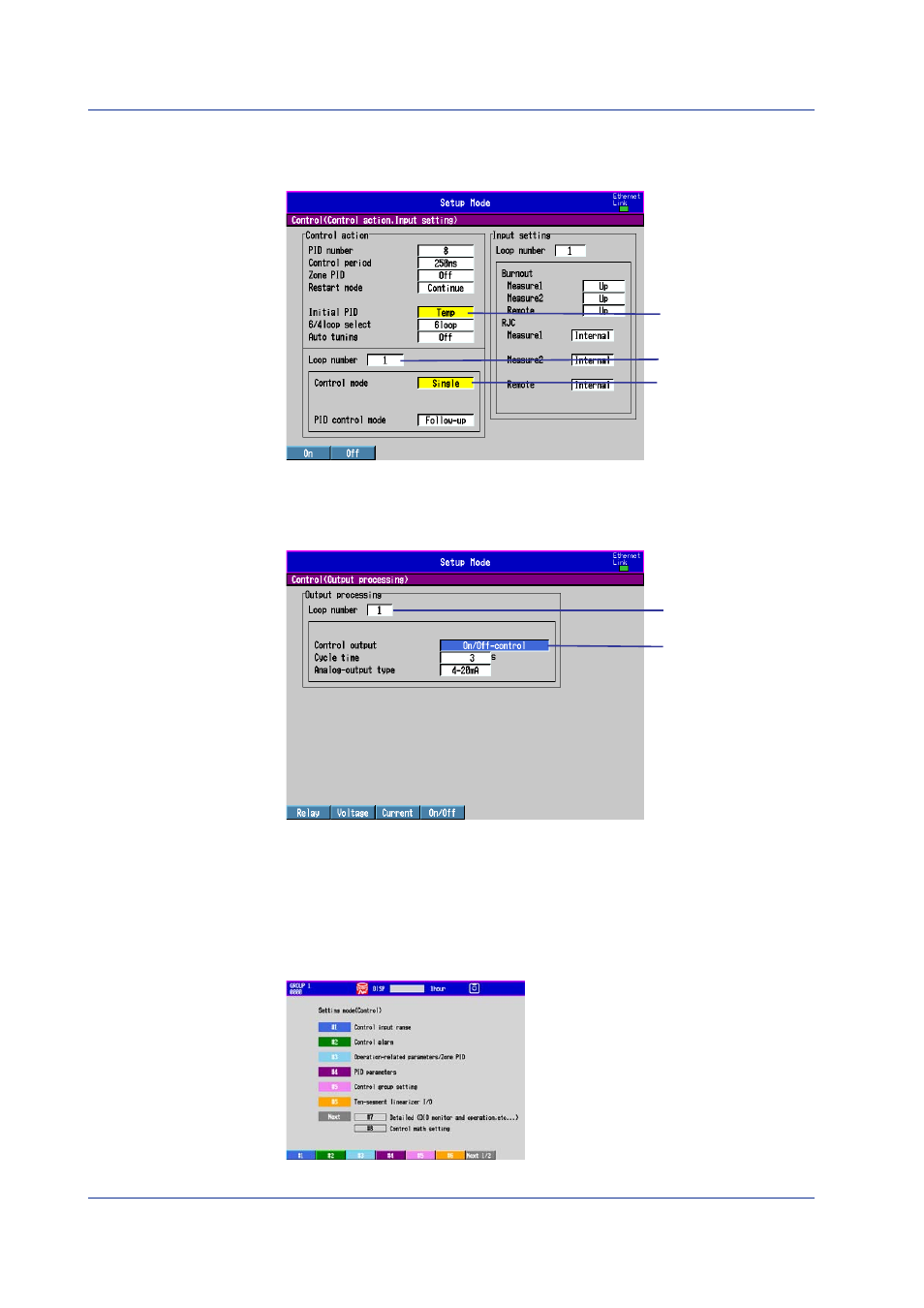

Press the

#1 soft key

(Control action, Input setting).

Press the

arrow keys

to move the cursor (blue) to the setup item box, press the

soft

key

of each value according to the following figure, and press the

DISP/ENTER key

Select 1

Select Single

Select Temp

Press the

ESC key

to return to the basic control setting menu.

Press the

#3 soft key

(Output processing).

Press the

arrow keys

to move the cursor (blue) to the setup item box, press the

soft

key

of each value according to the following figure, and press the

DISP/ENTER key

Select 1

Select On/Off-control

* No need to set
Cycle time and
Analog-output type

Press the

ESC key

twice to return to the menu display (basic setting mode 2/2).

Press the

End soft key

A window appears for you to confirm the saving of the new settings.

Press the

DISP/ENTER key

to confirm the settings.

Setting the Control Input Range in Setting Mode

From the operation display, click the

MENU key

to display the control setting menu

shown below.

Examples of Control Setup Operation
