2.
Press the
#1 soft key
(Control input range).
3.
Press the
arrow keys
to move the cursor (blue) to the setup item box, press the
soft
key
of each value according to the following figure.

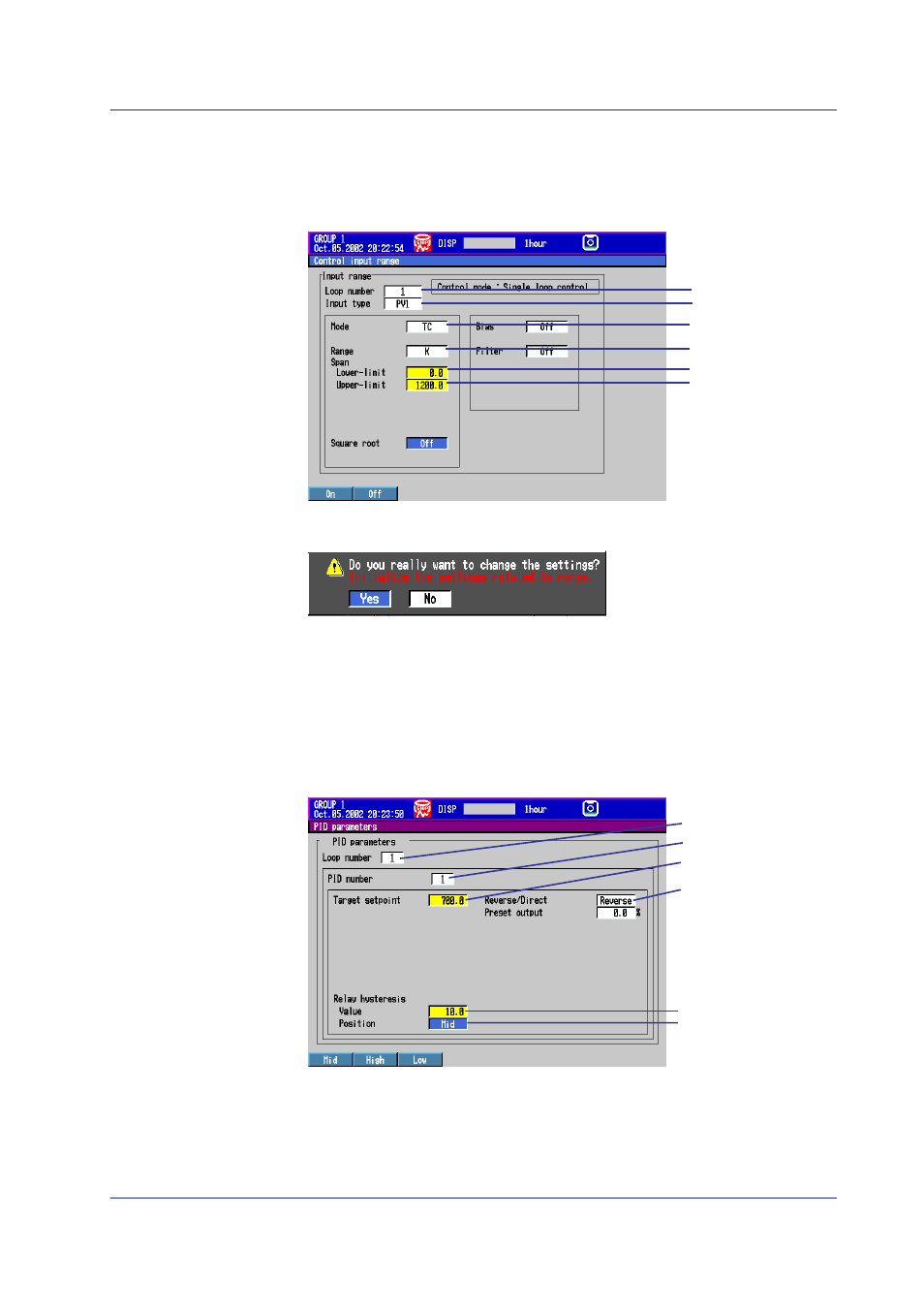

The numeric values of the lower/upper limit of range are entered using the pop-up
window that appears by pressing the
Input soft key
.
Select 1
Select TC
Select K
Select PV1
Set to 0.0
Set to 1200.0
4.
Press the
DISP/ENTER key
.
A confirmation window shown below opens.
5.
Press the
DISP/ENTER key
to confirm the settings.
Setting Control Parameters in Setting Mode
1.
From the operation display, click the
MENU key
to display the control setting menu.
2.
Press the
#4 soft key
(PID parameters).
3.
Press the
arrow keys
to move the cursor (blue) to the setup item box, press the
soft
key
of each value according to the following figure.
The numeric values of the target setpoint and relay hysteresis setpoint are entered
using the pop-up window that appears by pressing the
Input soft key
.
Select 1
Set to 700.0
Select Reverse
Select 1
Set to 10.0
Select Mid
4.
Press the
DISP/ENTER key
to confirm the settings.
Examples of Control Setup Operation
