Yokogawa Data Acquisition with PID Control CX2000 User Manual
Page 14
14
IM 04L31A01-02E

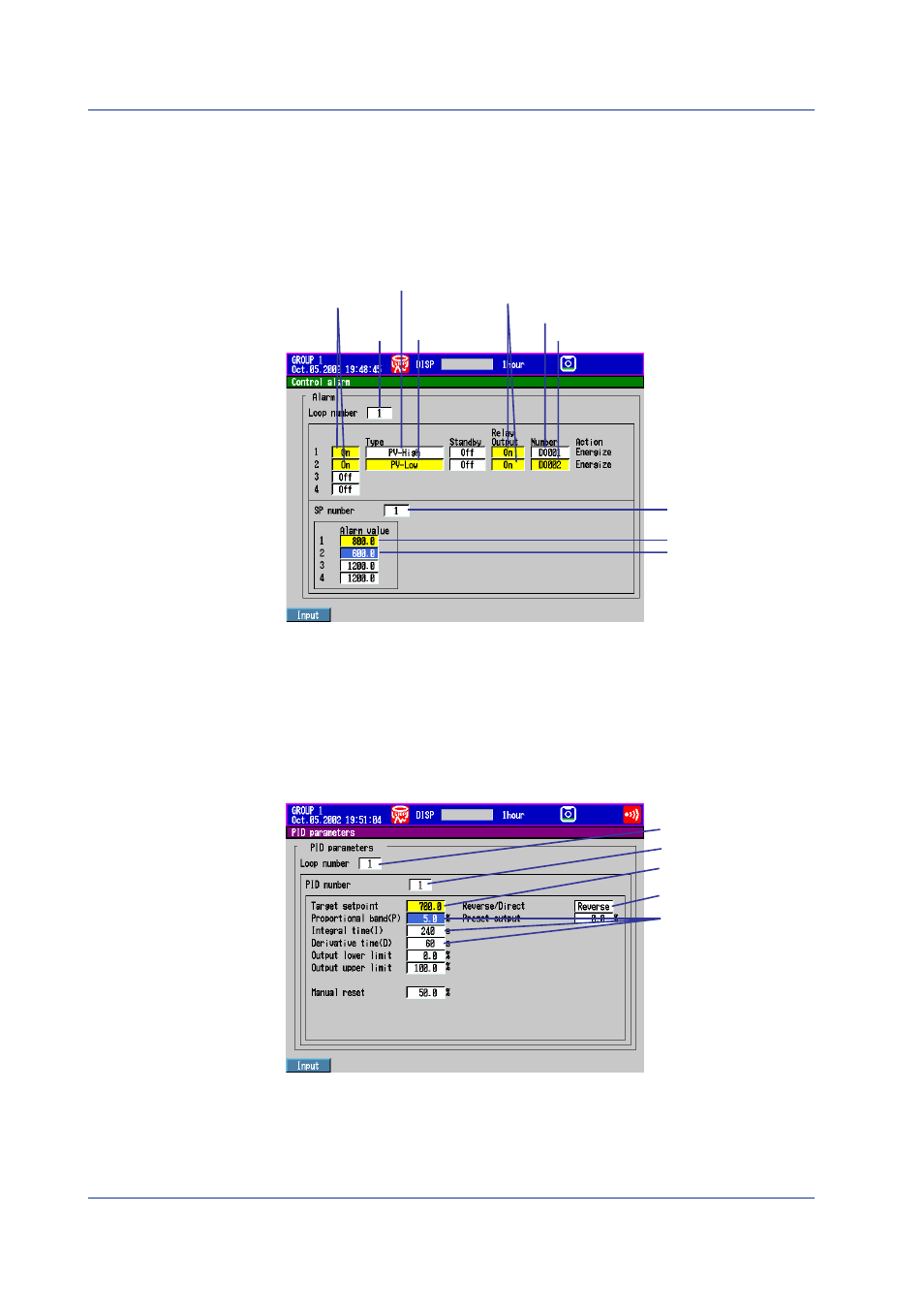

Setting Control Alarms in Setting Mode
1.
From the operation display, click the
MENU key
to display the control setting menu.
2.
Press the
#2 soft key
(Control alarm).
3.
Press the
arrow keys
to move the cursor (blue) to the setup item box, press the
soft
key
of each value according to the following figure.
The numeric value of the alarm is entered using the pop-up window that appears by
pressing the
Input soft key
.
Select 1
Set to 600.0
Set to 800.0
Select DO002
Select DO001
Select On
Select PV-Low
Select PV-High
Select On
Select 1
4.
Press the
DISP/ENTER key
to confirm the settings.
Setting PID Parameters in Setting Mode
1.
From the operation display, click the
MENU key
to display the control setting menu.
2.
Press the
#4 soft key
(PID parameters).
3.
Press the
arrow keys
to move the cursor (blue) to the setup item box, press the
soft
key
of each value according to the following figure.
The numerical values such as the SP are entered using the pop-up window that
appears by pressing the
Input soft key
.
Select 1
Set to 700.0
Select Reverse
Select 1
Keep the initial PID
values for Temp
4.
Press the
DISP/ENTER key
to confirm the settings.
Examples of Control Setup Operation
