5.3 Outline of display screen
(1) Measurement mode screen (appears when the power is turned ON)
The measurement screen depends on the number of components. The following screen configura-
tion as shown as an example is for NO, SO
2
, CO
2
, CO and O
2
(output: 12 channel).

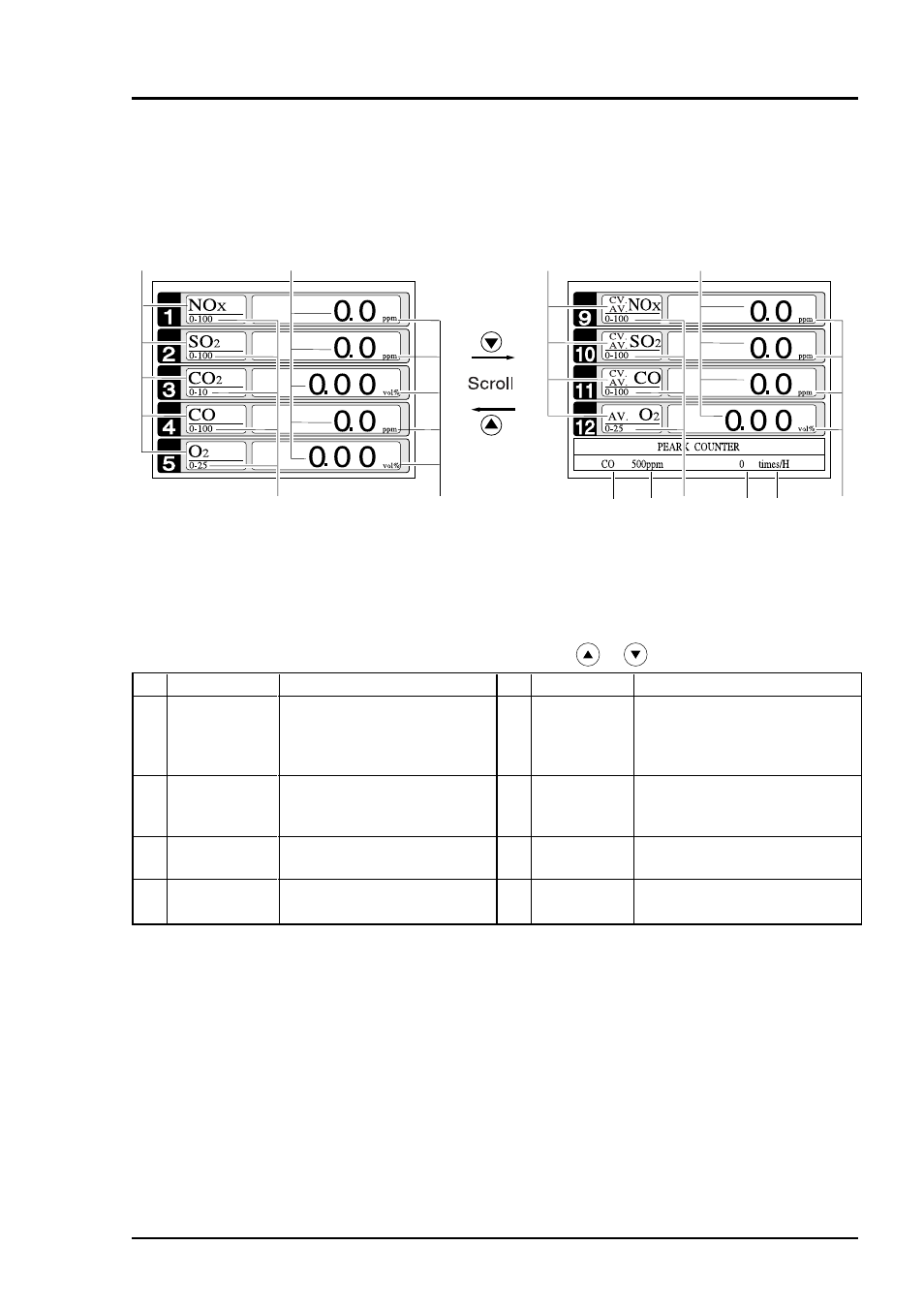

Fig. 5-3 Name and function of measurement mode screen
No.
(1)
(2)
(3)
(4)
Function
Displays component of instanta-
neous value, corrected instanta-
neous value, corrected average
value, etc.
Displays measured value of
concentration.
Displays range values.
Displays unit with ppm and
vol%.
Description
Displays peak alarm component.
Displays peak alarm concentra-
tion display.
(Upper limit value)
Displays the alarm times
exceeding the peak value.
Displays units of peak alarm with
times/H.
No.
(5)
(6)
(7)
(8)
Name
Peak alarm
component
display
Peak alarm
concentration
display
Peak alarm
times
Peak alarm
unit display
Name
Component
display
Concentration
display
Range display
Unit display
CV.
AV.
* corrected instantaneous value ..... CV.
** corrected average value ...............
* For outputs of more than 5 channels, scroll the arrow key or to view.
C h
C h
C h
C h
C h
(1) (2)
(3) (4)
(1) (2)
(4) (5) (6) (3) (7) (8)
C h
C h
C h
C h
