3 external dimensions, Analyzer main unit – Yokogawa IR400 User Manual

Page 105

9 - 10

IM 11G02N01-01E

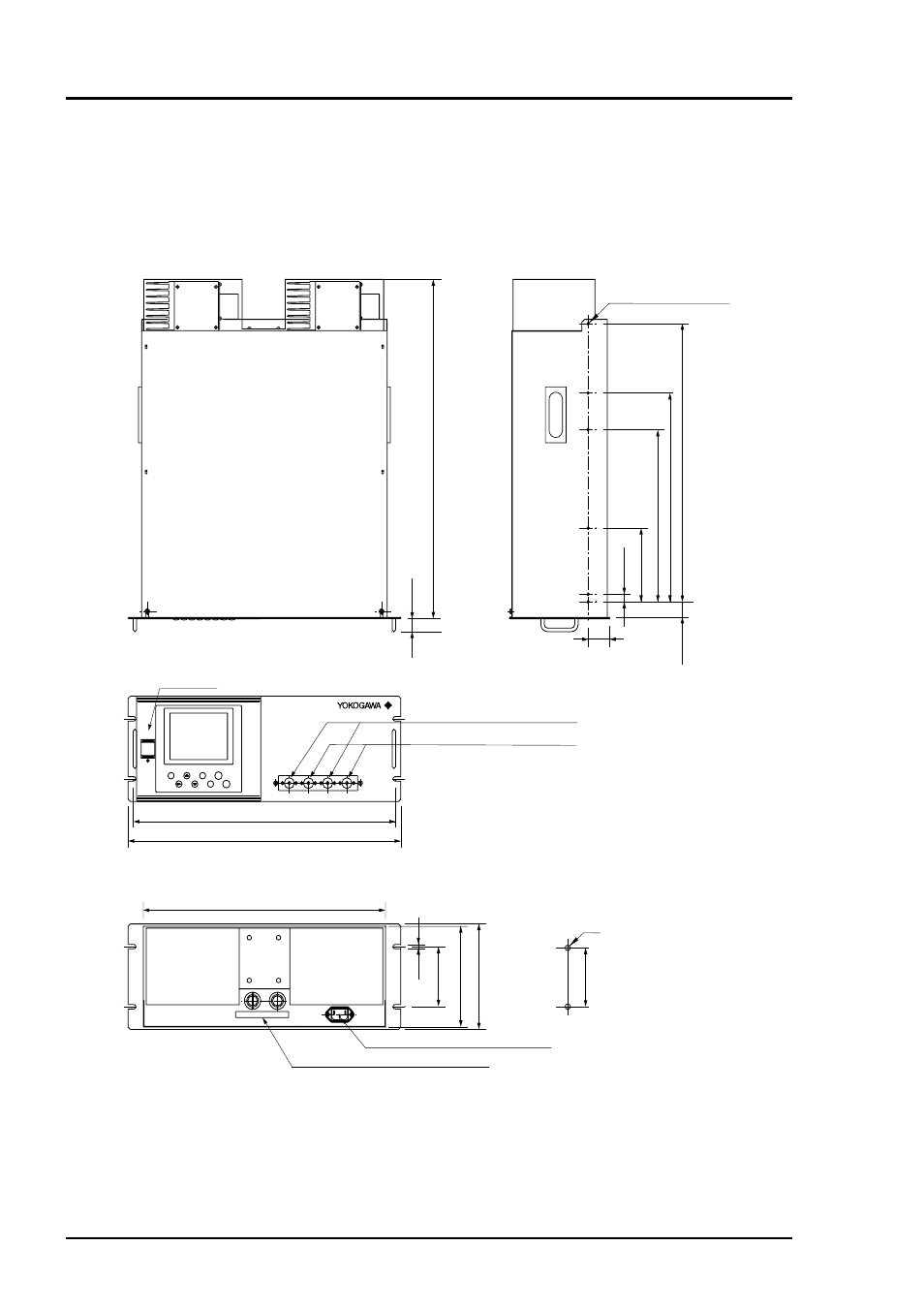

Unit:mm

578 Max.

M4 (For mounting slide rail)

12.7

123.8

288.9

315.8

466.7

7.5

100.8

177

(22)

26.1

465

483

429

SPAN

ENT

ZERO

ESC

MODE

POWER

INFRARED GAS ANALYZER

169

Power switch

Sample gas inlet Rc1/4 or 1/4NPT

Sample gas outlet Rc1/4 or 1/4NPT

(Purge gas inlet Rc1/4 or 1/4NPT)

JIS : 100mm

EIA : 101.6mm

Power inlet (100 to 240 V AC, 50/60 Hz)

Connector for imput/output terminal module

9.3 External Dimensions

Unit : mm
