Wa t l o w S e r i e s S D 3 1 ■ 39 ■ C h a p t e r 8 Ti m e r

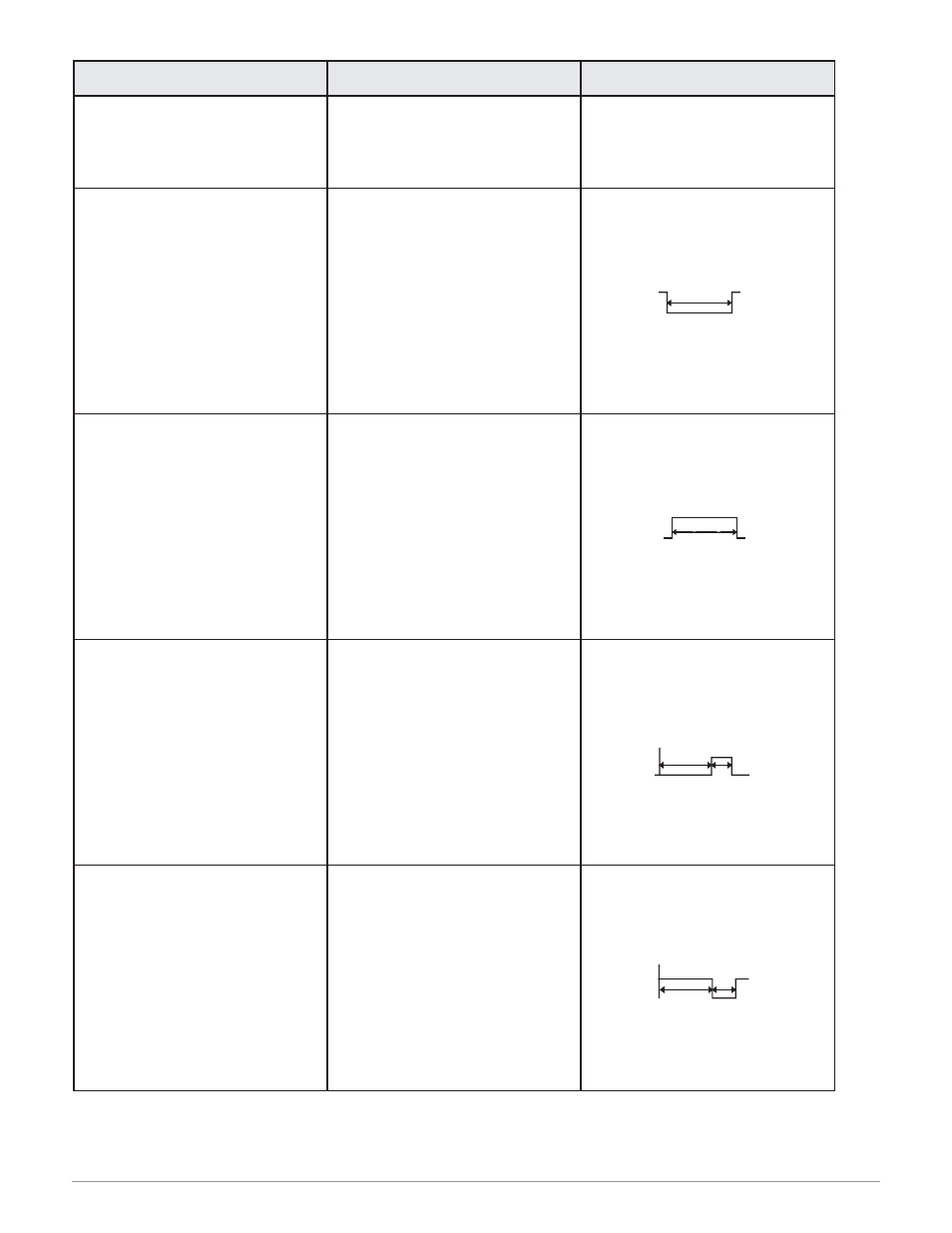

Prompt Timer Related Settings
Timer Output Function
[ti;F1], [ti;F2]
[ti.F1] , [ti.F2]
Each timer output can independ-
ently have its timer output func-
tion selected. Delay On, Delay Off,
Signal On, and Signal Off.
Delay On
[dl;On]
[dl.On]
Output is energized before timer
sequence; de-energized during
timer sequence; energized after
timer sequence.
Delay ON
Output is ON before
timing; OFF during
timing; ON after timing.
[dl;On]
Timer
Delay Off
[dl;OF]
[dl.OF]
Output is de-energized before
timer sequence; energized during
timer sequence; de-energized after
timer sequence
Delay OFF
Output is OFF before
timing; ON during tim-
ing; OFF after timing.
[dl;Of]
Timer
Signal On
[Sg;On]
[Sg.On]
Output is de-energized before
timer sequence; de-energized dur-
ing timer countdown; energized for
the signal time, de-energized after
signal time
Signal ON
Output is OFF before
& during timing; ON
after timing; then OFF.
[Sg;On]
Timer
Signal
Time
Signal Off
[Sg;OF]
[Sg.OF]
Output is energized before timer
sequence; energized during timer
countdown; de-energized for the
signal time, energized after signal
time.
Signal OFF
Output 2 is ON before
& during timing; OFF
after timing; then ON.
Timer
Time
Signal
[SG;OF]
