Wa t l o w S e r i e s S D 3 1

9

C h a p t e r 2 I n s t a l l a n d W i r e

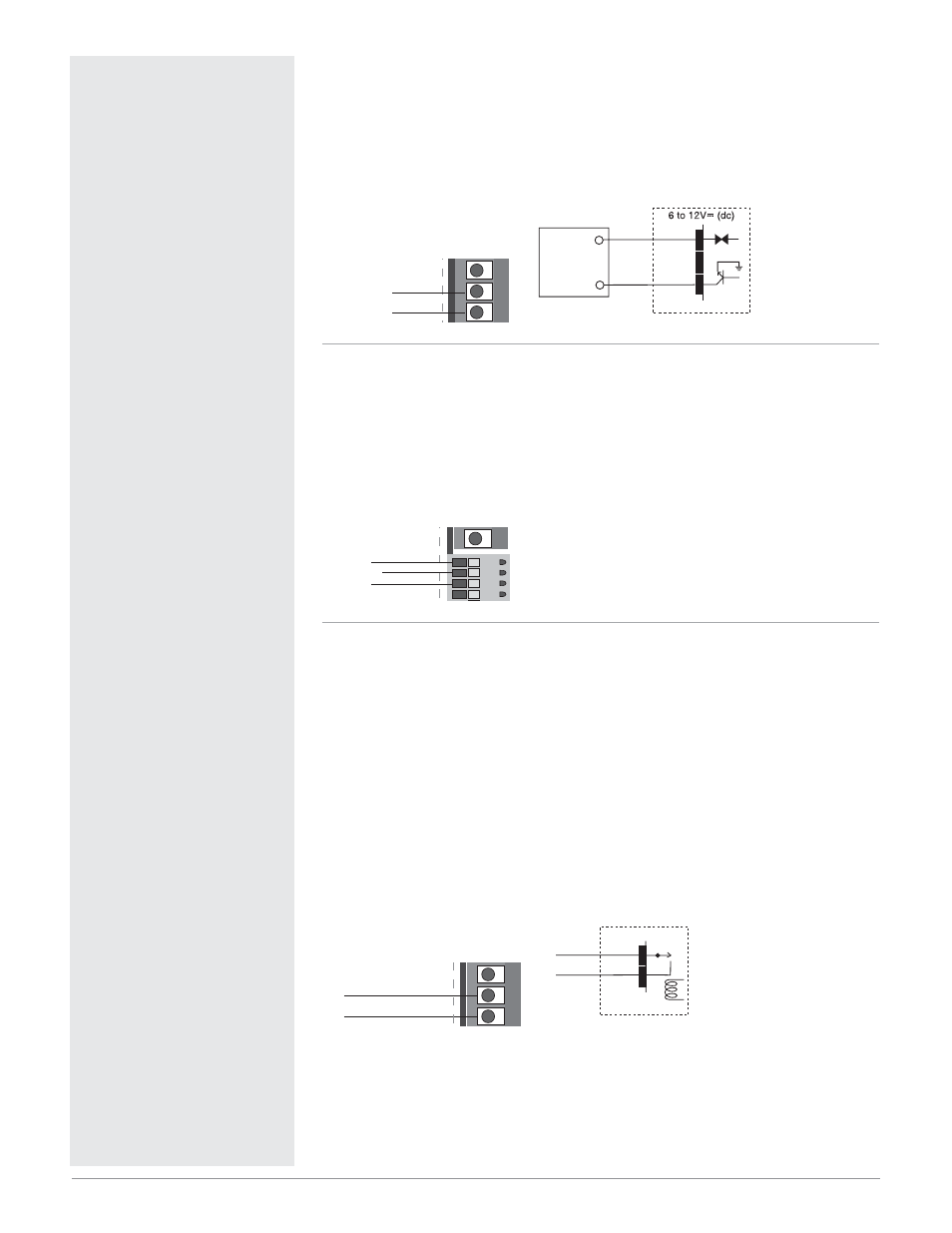

Figure 9a —

Output 1 Switched DC

SD31 - _ C _ _ - _ _ _ _

• Supply current 30 mA

Î (dc) maximum

• Supply voltage 6 to 12V

Î (dc)

• Not recommended for switching mechanical relays

• Output supplies power

Figure 9b —

Output 1 Process

SD31 - _ F _ _ - _ _ _ _

• Analog output is scalable between 0 to 10V

Î (dc) or 0 to 20 mAÎ (dc)

• Load capability: voltage 1 k

minimum; current 800

maximum

• Output supplies power

• Cannot use voltage and current output at the same time

Figure 9c —

Output 2 Mechanical Relay

SD31 - _ _ J _ - _ _ _ _

• Form A contact

• 2 A, resistive

• 125 VA pilot duty, 120/240V

Å (ac), inductive

• See Quencharc note

• 240V

Å (ac) maximum

• 30V

Î (dc) maximum

• For use with ac or dc

• Minimum load current 10 mA

• Output does not supply power

Internal Circuitry

COM.

N.O.

Mechanical Relay

3

4

2
3

4

3

4

normally open

common

4

8

5
6
7

volts+ 6

com- 7

amps+ 5

Internal Circuitry

dc-

dc+

Load

Switched DC

-

+

5

6

4

56

5
6

dc+
dc-

ç

Warning:
Use National Electric (NEC) or
other country-specific standard
wiring and safety practices when
wiring and connecting this con-
troller to a power source and to
electrical sensors or peripheral
devices. Failure to do so may re-
sult in damage to equipment and
property, and/or injury or loss of
life.

Note: To prevent ground loops,
isolation needs to be maintained
from input to output when using
switched DC or analog process
outputs.

Quencharc Note:
Switching pilot duty inductive
loads (relay coils, solenoids,
etc.) with the mechanical relay
or solid-state relay output op-
tions requires use of an R.C.
suppressor.

Watlow carries the R.C. sup-
pressor Quencharc brand name,
which is a trademark of ITW
Paktron. Watlow Part No. 0804-
0147-0000.

Spring clamp wiring connector
note:
To insert the wire, push the wire
into the desired connection num-
ber, and it should automatically
lock into place. To remove the
wire, press and hold the orange
release tab with a small screw-
driver. Pull the wire out of the
connection. Solid or tinned wire
recommended.
