WATLOW Series 988 User’s Manual 6.1 Factory Menus, Chapter 6
Navigating the Factory Menus
To reach the Factory Menus, begin in the Display Loop and press the Up-
arrow > and Down-arrow < keys together and hold for three seconds.
The
[`SEt] prompt will appear in the lower display. Press and hold the
Up-arrow > and Down-arrow < keys together again for three seconds
until the
[Fcty] prompt appears in the lower display. The Factory Menus
will not appear if the hardware lockout DIP is set to on. (See Chapter 1 for
more information on DIP switch settings.) The three Factory Menus are:
Panel Lockout
[PLOC]; Diagnostics [diAg]; and Calibration [`CAL]. Upon
reaching the Factory Menu prompt [Fcty] use the Up-arrow > or Down-
arrow < key to select a menu and the Mode key µ to step through a
menu.
You will not see every prompt in any of these menus. The unit’s configura-
tion and model number determine which prompts appear. After stepping
through each menu, the Series 988 returns to the Factory Menu prompt
[Fcty]. Use the Up-arrow > and Down-arrow < keys to select the next
menu, or use the Mode key µ to advance through the same menu again.
To move backwards through the menu hold down the Mode key µ and
press the Up-arrow key >. Use the Up-arrow > or Down-arrow <
key to change the prompt setting.
Chapter 6 The Factory Menus

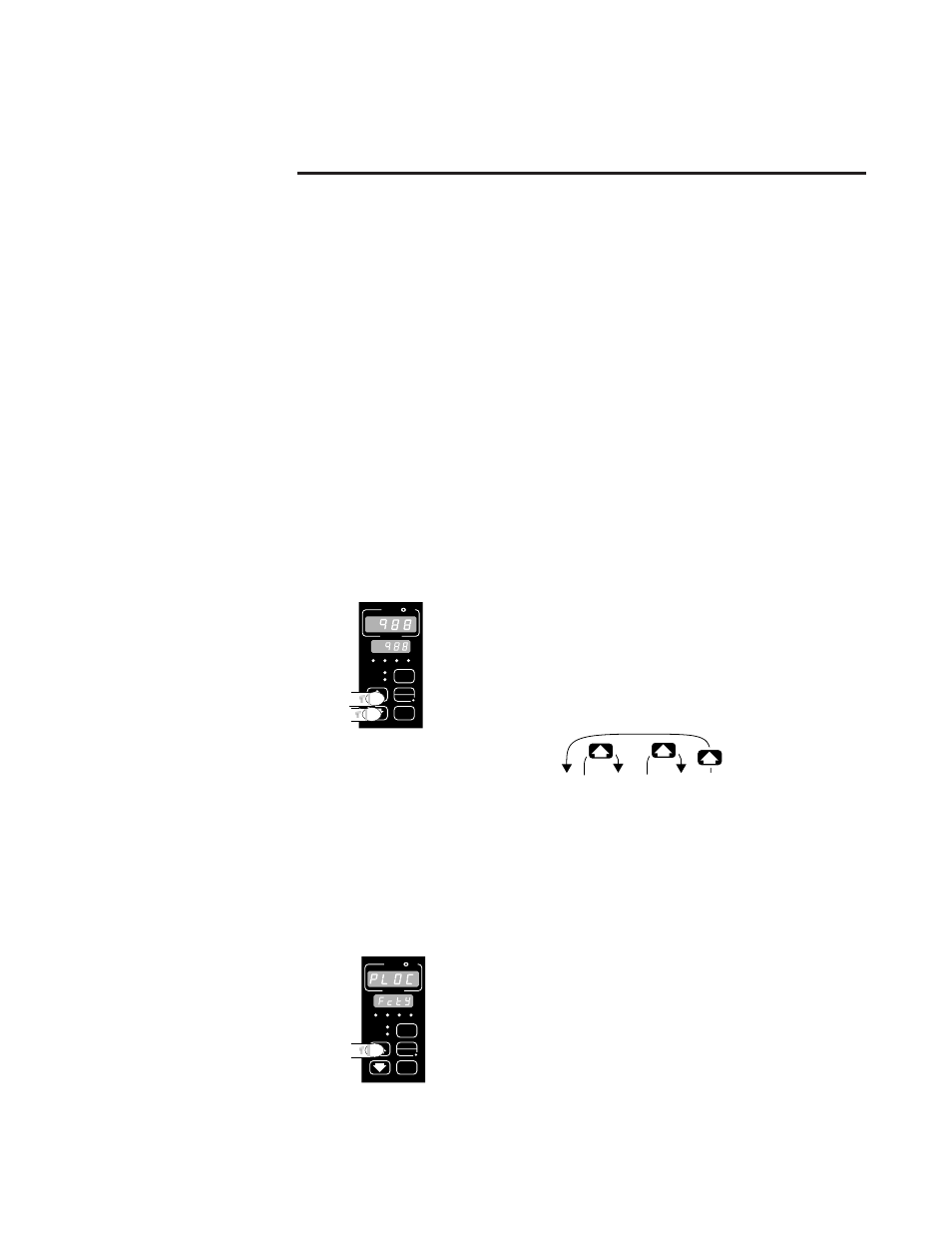

Figure 6.1 -
Navigating the
Factory Menus.
[PLOC] [diAg] [`CAL]
[Fcty] [Fcty] [Fcty]
❶ Press the Up-arrow > and Down-arrow < keys
together and hold until the
[`SEt] prompt appears in
the lower display. Press and hold again until the
[Fcty] prompt appears in the lower display.
❷ Use the Up-arrow key > to select one of the
Factory Menus.
TL W WA
PROCESS
L1 L2 L3 L4
DEV
% OUT DISPLAY
SERIES 988
MODE
AUTO
MAN
˜
NOTE:
Press the Display
key ∂ to return to
the Display Loop
from any point in
any menu.
˜
NOTE:
The Factory Menus
can only be entered
when the setup
prompt
[`SEt] is
displayed.
Panel Diagnostics Calibration
Lockout Menu Menu
Menu p 6.7 p 6.13
p 6.2
˜
NOTE:
The Factory Menus
will not appear if the
hardware lockout
DIP is set to on.
See Chapter 1 for
more information.
