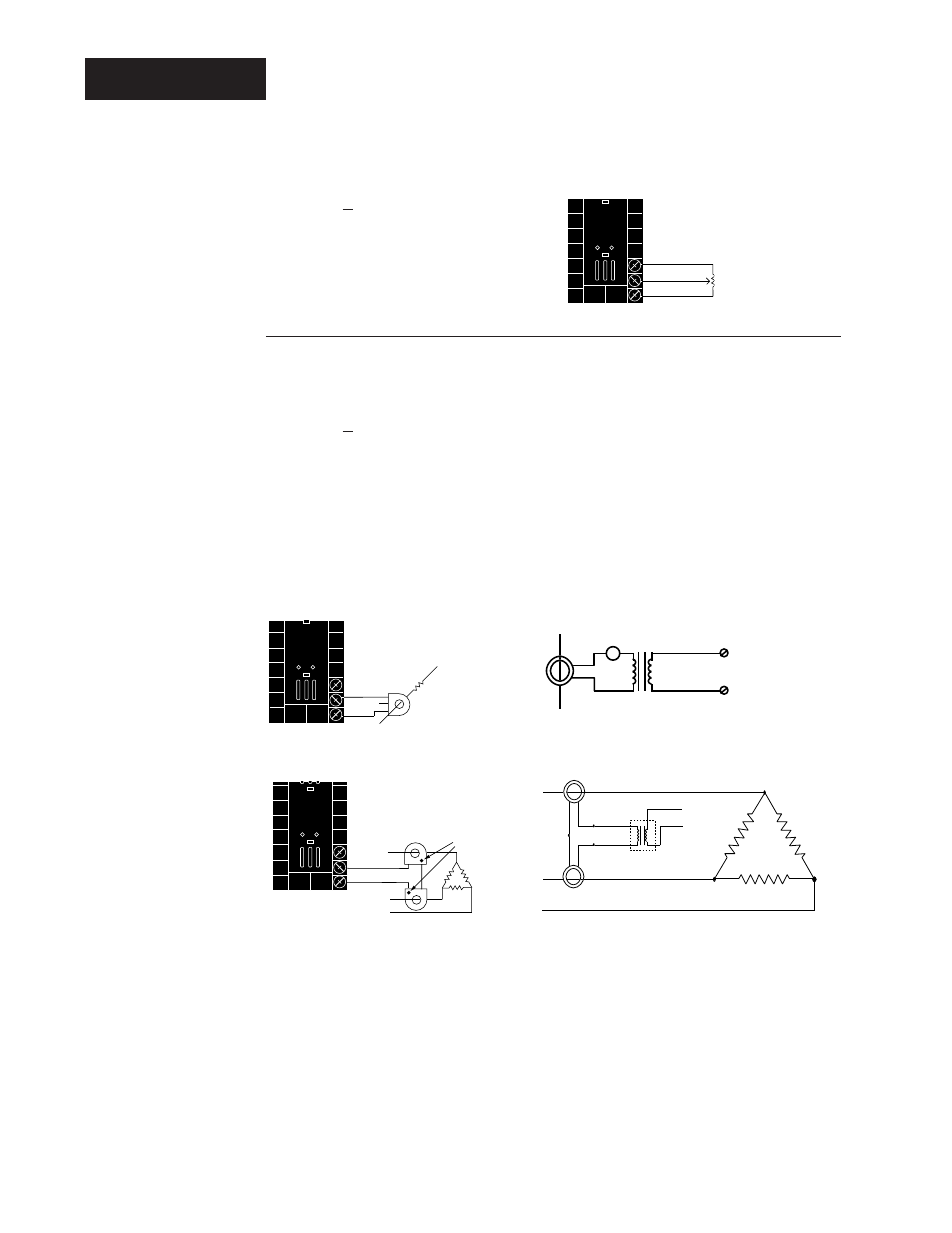

Page 20: Figure 2.10b, Figure 2.10a

background image

Figure 2.10b —

Current Transformer Input

98 _ _ - _ 4 _ _ - _ _ _ _

The current transformer must be purchased separately. Watlow current
transformer part number is 16-0246 (up to 50 amps)..

Systems that use more than 50 Amps need an interstage transformer.
For example, if you use a 300A current transformer, part #16-0073, and
an interstage transformer, part #16-0176, the 300A current transformer
provides a 5A signal to the interstage transformer. In turn, the transformer
sends a 20mA maximum signal to the controller.

20

19

T3

T1

T2

Phase
dot

2.10

WATLOW Series 988 User’s Manual

Installation and Wiring, Chapter 2

Input 2 Wiring

20

19

L2

L1

CT

Load wire

Center leg not used

Figure 2.10a —

Slidewire Feedback or Potentiometer Input

98 _ _ - _ 3 _ _ - _ _ _ _

19

20

18

CW

CCW

Wiper

NOTE:
See Chapter 8 for
information on
slidewire feedback.

˜

NOTE:
A process output
cannot be installed
on output 1 when
using a current
transformer input.

NOTE:
Successful installa-
tion requires five
steps:
• Model number and
software choice
(Appendix);
• DIP switch set-
tings (Chapter 1);
• Sensor match
(Chapter 2 and
Appendix);
• Sensor installation
(Chapter 2); and
• Wiring (Chapter 2).

AC Load

19

20

0 to 5A

AC

0 to
20mA

A

Bk

Red

Red

Wh

Bk

Bk

Wh

Bk

16-0176

Transformer

CT

T1

T3

T2

5A

20mA

19

20

Single-phase

Single-phase current sensing up to 300 amps

3-phase using 2 current transformers

3-phase current sensing up to 300 amps
