Page 30: Inpt, Figure 4.2 - the input menu
4.2
WATLOW Series 988 User’s Manual
Setup Menus, Chapter 4
MODE
*Slidewire Hysteresis
*Hunt
*Linearization 2
*Software Filter 2
*RTD Calibration Curve 2
*Calibration Offset 2
*Learn High
*Learn Low
*Range High 2
*Range Low 2
*Decimal 2
*Remote Set Point
*Input 2
*Linearization 1
Software Filter 1
*RTD Calibration Curve 1
Range High 1
Calibration Offset 1
Setup Prompt
Input 1
*Decimal 1
Range Low 1
Enter your settings,
from the controller's
upper display.
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
MODE
[Inpt]
[`Set]
[`In1]
[deC1]
[`rL1]
[`rH1]
[CAL1]
[rtd1]
[Ftr1]
[Lin1]
[`ln2]
[`rSp]
[deC2]
[`RL2]
[`RH2]
[LrnL]
[LrnH]
[CAL2]
[rtd2]
[Ftr2]
[Lin2]
[Hunt]
[SHYS]

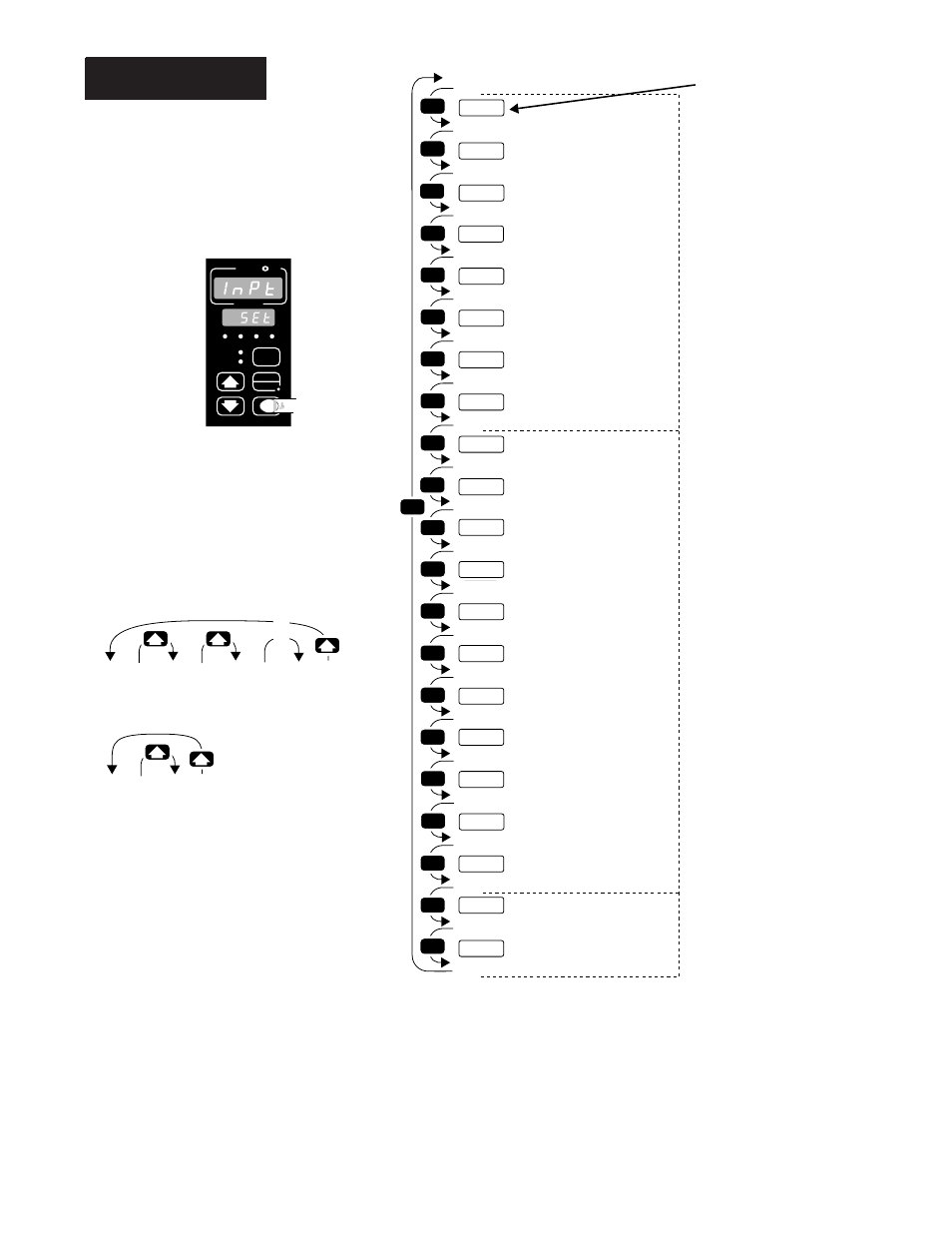

Figure 4.2 -
The Input Menu.
Setup-Input
❸ Select the Input Menu, then press
the Mode key µ to step through the
prompts.
TL
W
WA
PROCESS
L1
L2
L3
L4
DEV
% OUT
DISPLAY
SERIES 988
MODE
AUTO
MAN
❹ Press the Up-arrow key > or the
Down-arrow key < to select one of
the prompt values.
…
…
…
[Ftr1]
[Ftr1]
[Ftr1]
[Ftr1]
[```0]
[```1]
[```2]
[``60]
[root]
[Lin1]
[``no]
[Lin1]
*Prompts may not appear,
depending on controller
configuration.
Reaching the Input Menu
