Auto-tuning (Heat and/or Cool)
The Series 988 can automatically tune the PID parameters to fit the char-
acteristics of your particular thermal system.
Standard software units (98_ A -_ _ _ _-_ _ _ _) have 1 set of PID parame-
ters. Units with enhanced software (98_ B -_ _ _ _-_ _ _ _) and
[AlgO] set
to [Pid2] (Global Menu) have two sets of PID parameters, PID A and PID
B. Only one PID set can be auto-tuned at a time. For information on tun-
ing a cascade system, see Chapter 8.
Before beginning the auto-tune sequence, make sure the [AtSP] parame-
ter located in the Global Menu is at the proper setting. This allows the
user to select the tuning set point as a percentage of the current control
set point. See Chapter 4 for more information on this parameter. The fig-
ure below uses the default setting, 90%, to define the auto-tuning process.
Once the auto-tune sequence has begun, the output 1 and output 2 pro-
portional band is set to 0 and the control goes into an on/off mode of con-
trol at the set point percentage determined by the
[AtSP] parameter. The
displayed set point remains unchanged.
200 °
Temperature
set point
100 °
process
180 °
auto-tune
begins
auto-tune
complete
90% of
set point
( [AtSP] default setting)
Auto-tuning at a set point of 200 °F
Time

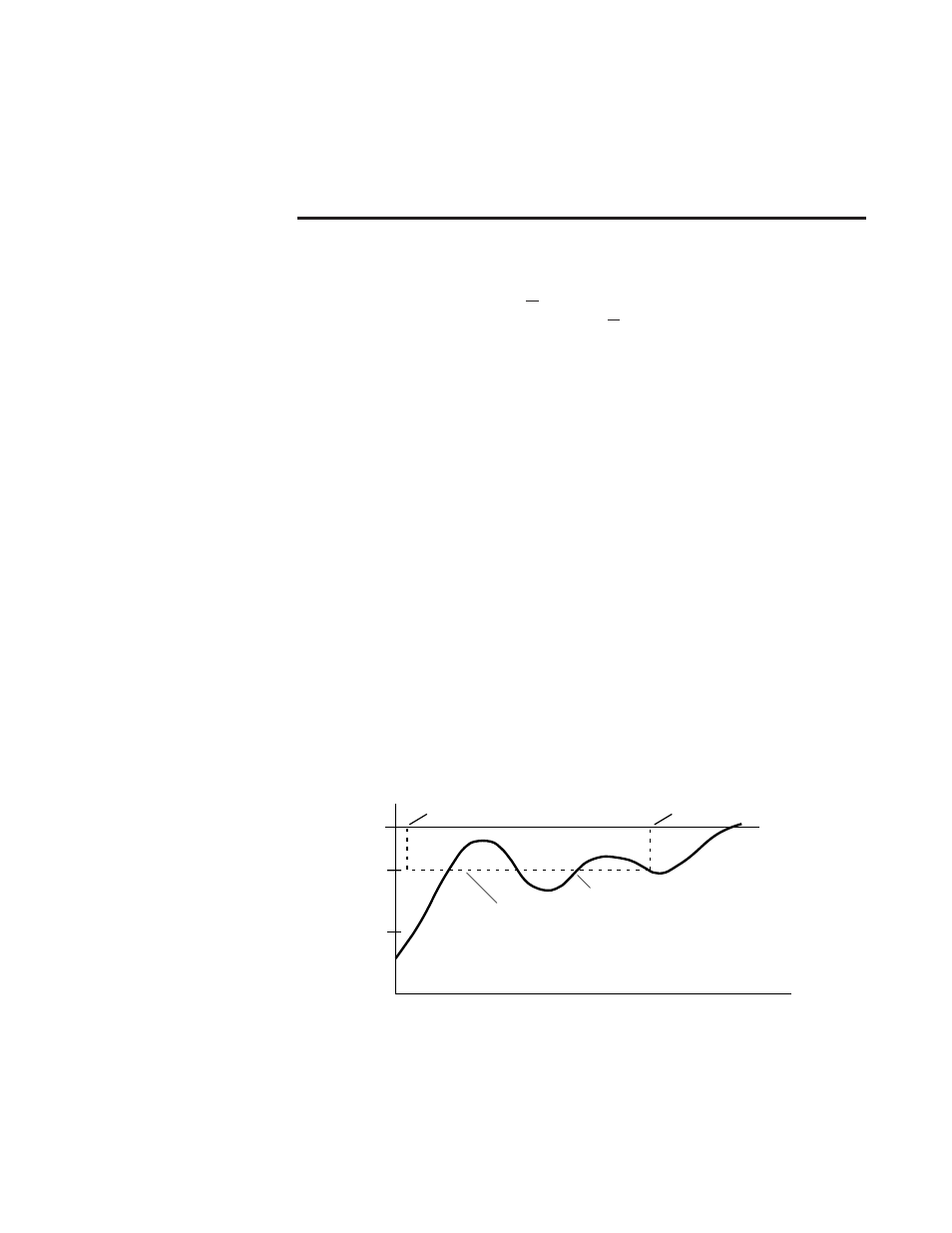

Figure 7.1 -
Auto-tuning
example.
˜
NOTE:
A useful reference
on tuning is Tuning
of Industrial Control
Systems by Arman-
do B. Corripio, pub-
lished by the
Instrument Society
of America.
Chapter 7 Tuning, Manual Operation,
Alarms and Error Codes
NOTE:
Auto-tune cannot be
initiated if
[`rSp] is
set to [``on].
