3 . 4 Wa t l o w M i c r o D I N

Install and Wire

Mounting the MicroDIN on a DIN rail

To Mount MicroDIN

1. Push unit in and down to catch rail hook

on top of rail.

2. Rotate bottom of unit in toward rail.

3. Rail clasp will audibly “snap” into place.

If the MicroDIN does not snap into place,
check to see if the rail is bent.

To Dismount MicroDIN

1. Press down on back of controller until the

bottom hook clears the rail.

2. Then rotate bottom up and away from

rail.

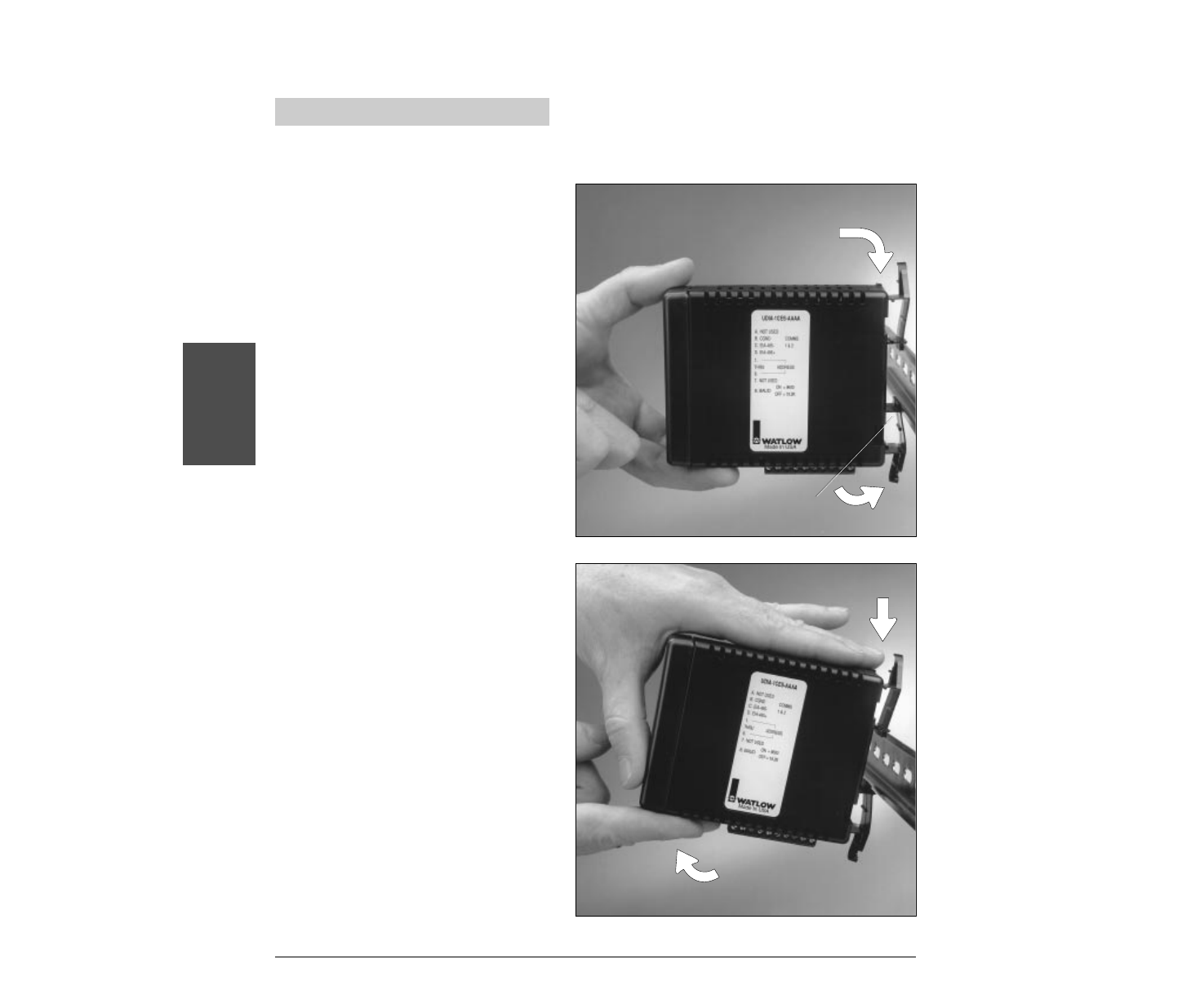

Figure 3.4a -

Mounting a MicroDIN

controller on a DIN rail.

Figure 3.4 b-

Dismounting a MicroDIN

controller from a DIN rail.

①

➁

➂ "Snap"
