PS-3650A / PS-3651A User Manual
3-14

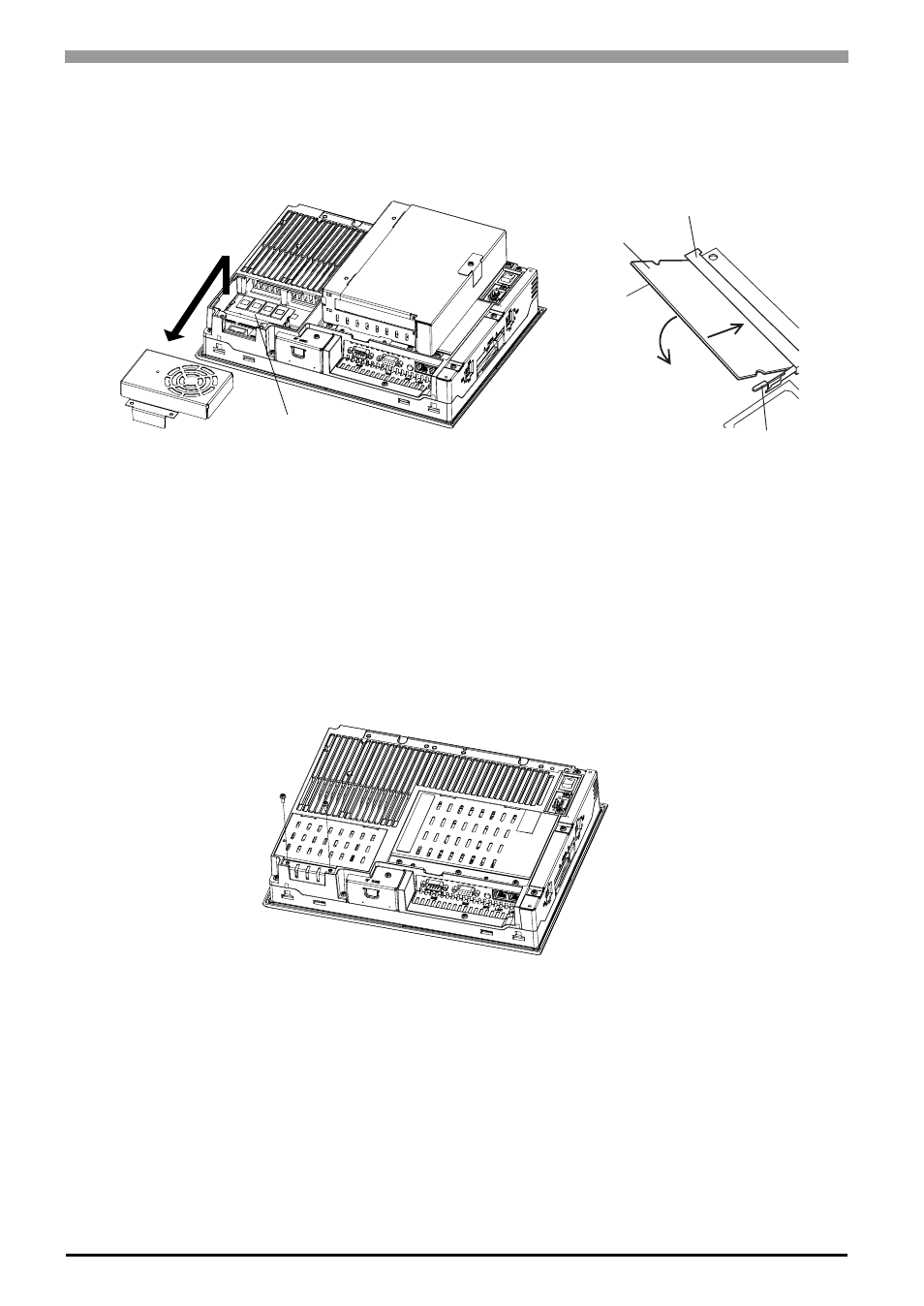

(3) Install the main memory where the following figure shows. Insert the DIM module, which is an optional
product, into the connector completely in an oblique direction, then press it downward until it is locked
into the stopper.
(4) Place back the cooling fan and fix with two screws. The torque required to tighten these screws is 0.5 to
0.6N•m.
„ PS-3651A
(1) Turn OFF the power switch of the PS-A and remove the power cable. Place the PS-A on a flat, level sur-
face facing the display face downwards.
(2) Unscrew the screws (2) as you see on the following figure, then remove the Memory slot cover.
1
2
Connector
Stopper
Main Memory
Main Memory (DIM Module)
