RAS Feature Overview
*1
Be sure to adjust these settings according to your system’s specifications.
*2
Output via the RAS feature.
*3
The PS-3651A has no fans.
*4
DIN1 can be used as Reset Input. To do so, set it up in the System Monitor.
SEE
6.3 Monitoring the PS-A Status (page6-10)

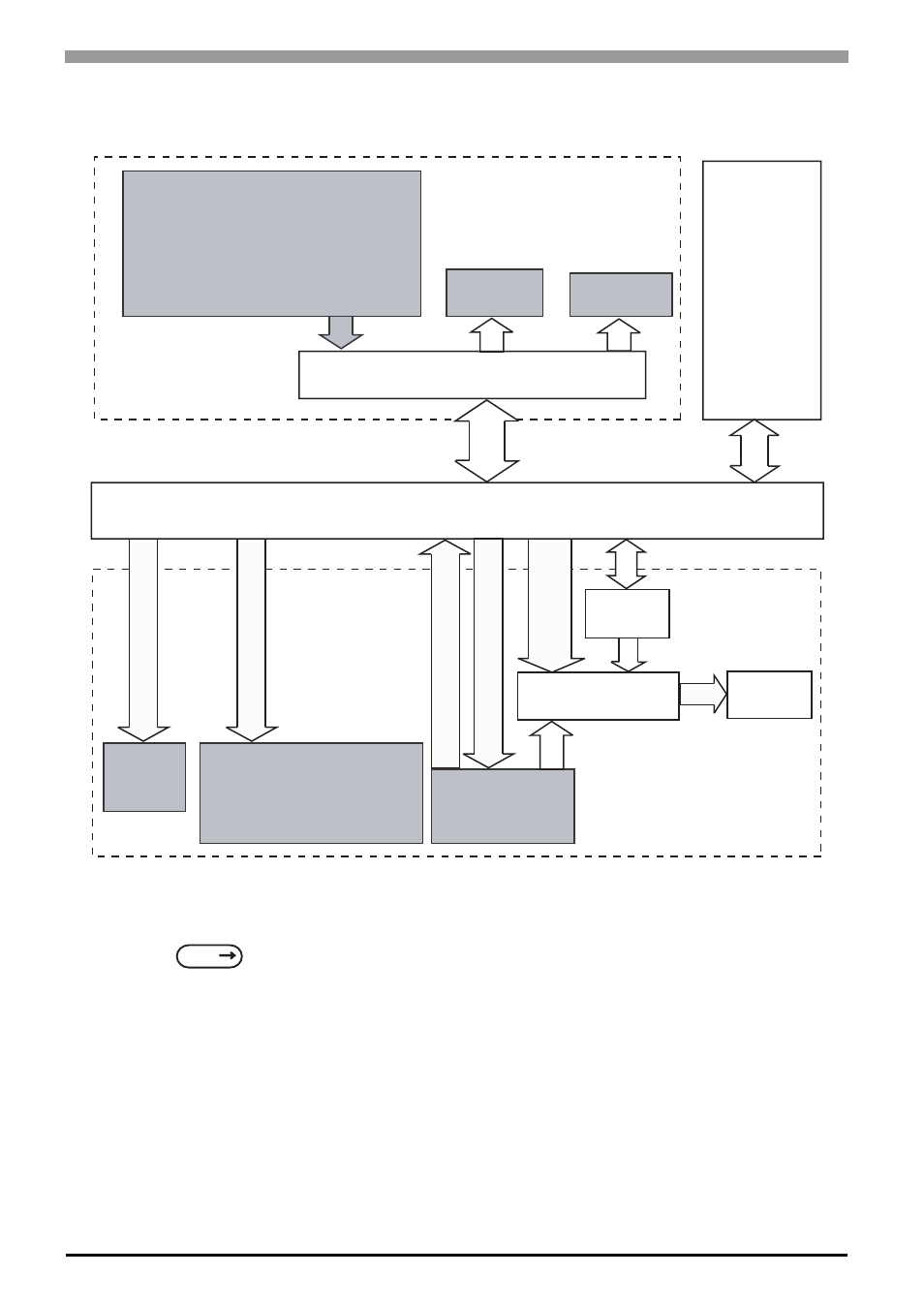

Hardware
System Properties
Voltage, Fan RPM, Temperature Alarm
Detection Level Settings
Enable/Disable Settings
SMART Alarm, Power Alarm, Fan Alarm*3,
Internal Temperature Alarm, Output Settings,
Watchdog Timer Value Settings,
Watchdog Reset Enable/Disable Settings
Mirroring Disk Status Monitoring
Popup
Message
OS Shutdown
User
Application
System Monitoring Application
Driver or API-DLL
Buzzer
Reset Control
Watchdog
Timer
Hardware
Reset
WDT
Reset
Mask Settings
System Monitor
*1
*2
*2
*2
*2
LED
Grenn : Power ON
Orange : RAS Error /
Touch Panel Self-Test Error
Orange/Red Brinking : Backlight Error
Green Brinking : Soft OFF status
DOUT
DIN
RAS Connector
DIN 2 Port
DOUT 2 Port
RESET IN
*2 *4
