PS-3650A / PS-3651A User Manual
7-6
7.4
Replacing the Installation Gasket
The installation gasket provides protection against dust and moisture.
Installation Gasket Attachment Procedure
(1)
Place the PS-A on a flat, level surface facing the display face downwards.
(2)
Remove the gasket from the PS-A.
(3)
Attach the new gasket to the PS-A. Be sure to insert the gasket into the PS-A’s groove so that the
gasket’s groove sides are vertical.
(4)
Check that the gasket is attached correctly to the PS-A. The upper surface of the gasket should protrude
approximately 2 mm [0.08 in.] out of the groove evenly.
• A gasket which has been used for a long period of time may have scratches or dirt
on it, and could have lost the moisture resistance to be equivalent to IP65f. when
installing the PS-A removed from the enclosure again, the moisture resistance to be
equivalent to IP65f may go down. Be sure to change the gasket at least once a year,
or when scratches or dirt become visible.
• The PS-A unit installation gasket’s model number is CA3-WPG12-01.

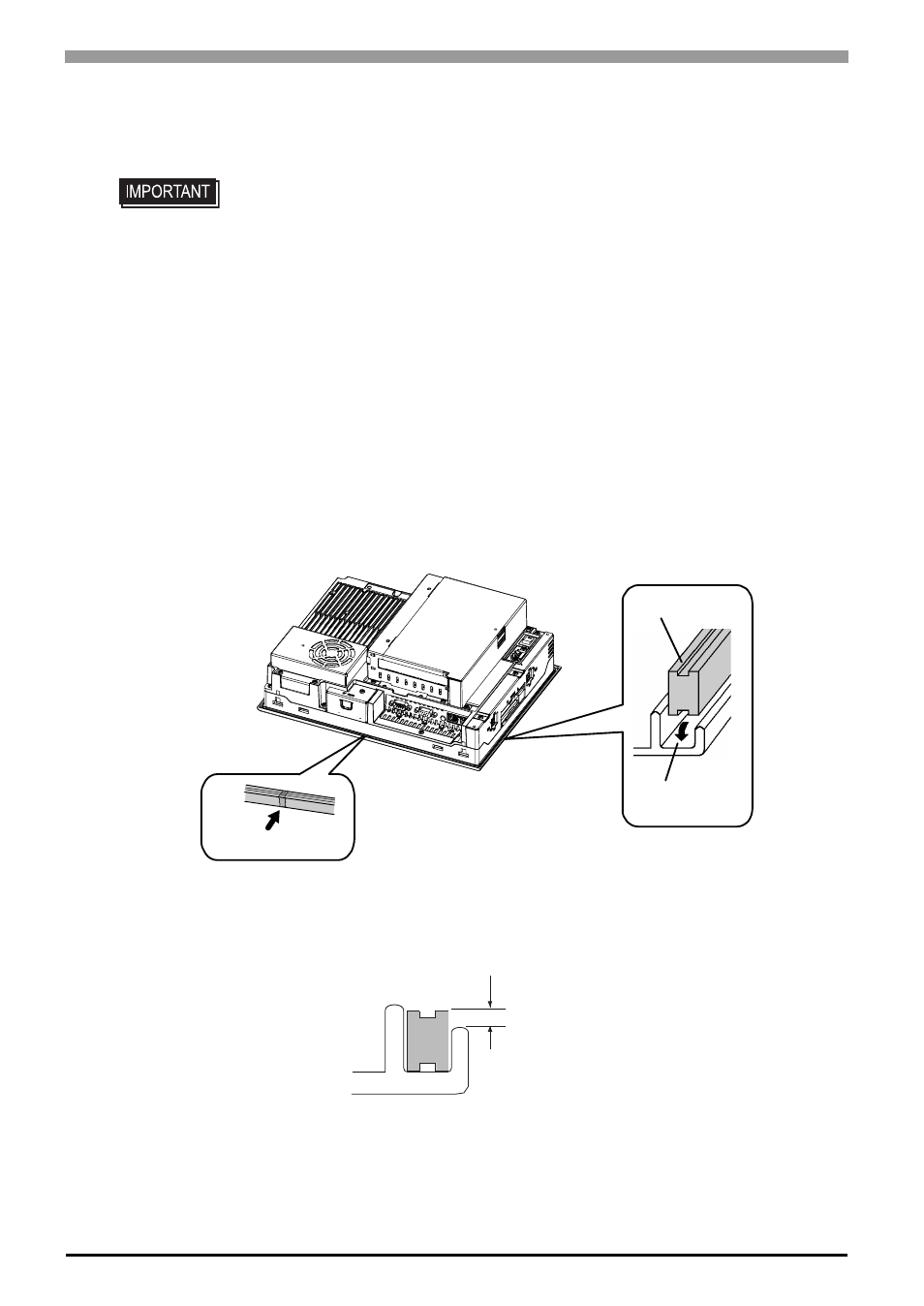

PS-A Rear Face
Gasket Seam
Gasket
Installation
Groove
2.0 [0.08]
Unit:mm [in.]
