NANO-945GSE EPIC Motherboard

Page 91

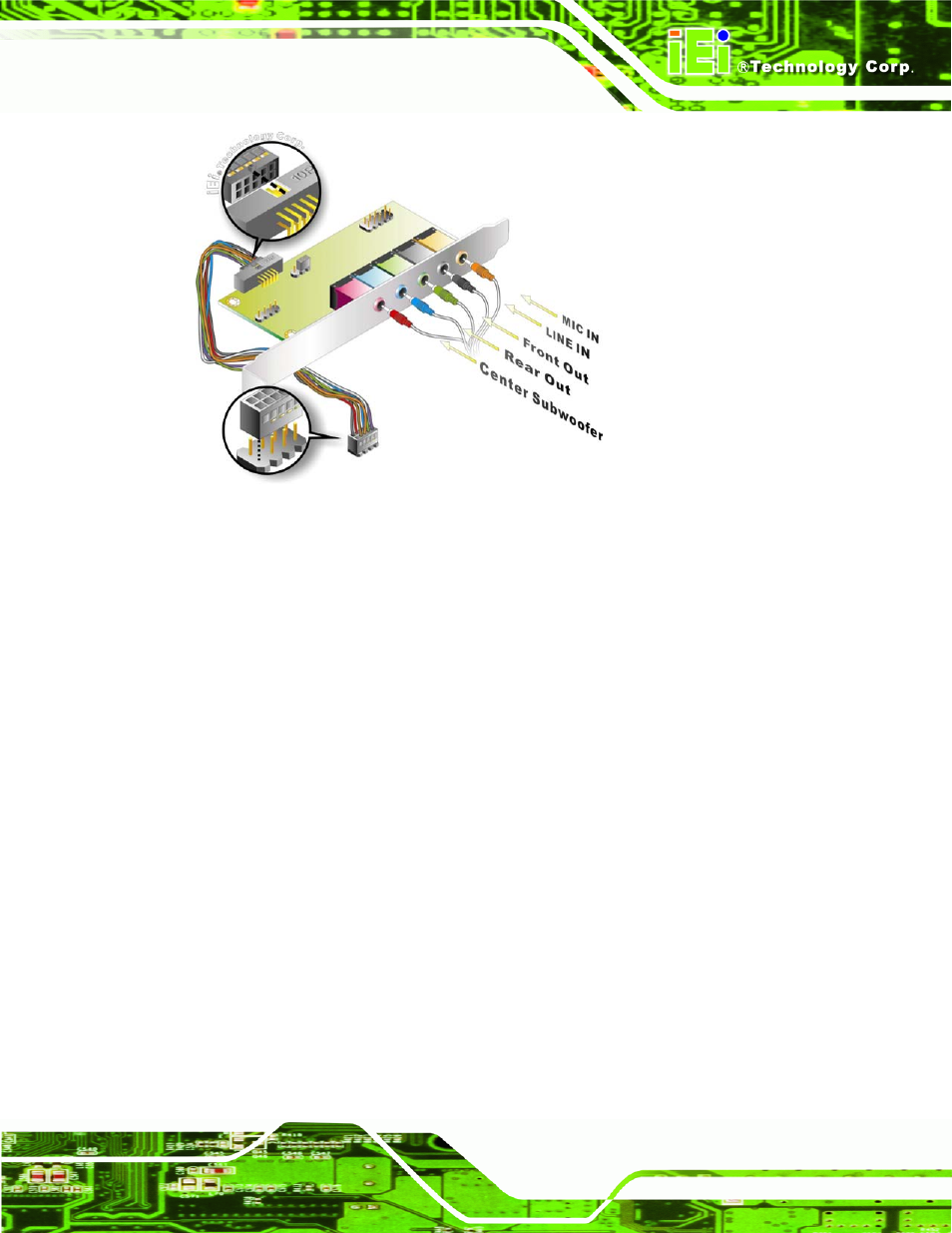

Figure 4-14: 7.1 Channel Audio Kit

Step 4:

Mount the audio kit onto the chassis. Once the audio kit is connected to the

NOVA-9452, secure the audio kit bracket to the system chassis.

Step 5:

Connect the audio devices. Connect one speaker to the line-in audio jack, one

speaker to the line-out audio jack and a microphone to the mic-in audio jack.

Step 6:

Install the driver. If the 7.1 channel audio kit is used, the ALC883 Realtek

codec driver must be installed. Refer to Chapter 7 for driver installation

instructions.

Step 0:

4.7.5 ATA Flat Cable Connection

The ATA 66/100 flat cable connects to the NANO-945GSE to one or two IDE devices. To

connect an IDE HDD to the NANO-945GSE please follow the instructions below.

Step 1:

Locate the IDE connector. The location/s of the IDE device connector/s is/are

shown in Chapter 3.

Step 2:

Insert the connector. Connect the IDE cable connector to the onboard

connector. See
