DESCRIPTION (LVDS1)
Pin 1-2 Pin 3-4 LVDS1
OFF OFF 800 x 600 (18-bit)
ON OFF 024 x 768 (18-bit)
OFF ON 1280 x 1024 (36-bit)
ON ON 1400 x 1050 (36-bit)
DESCRIPTION (LVDS2)
Pin 5-6 Pin 7-8 LVDS2
OFF OFF 1024 X 768 (18-bit)
ON OFF 1024 X 768 (24-bit)
OFF ON 1280X1024 (36-bit)
ON ON 1280X1024 (48-bit)
Table 4-6: LVDS Panel Resolution Jumper Settings
The LVDS Panel Resolution jumper location. is shown in Figure 4-8.

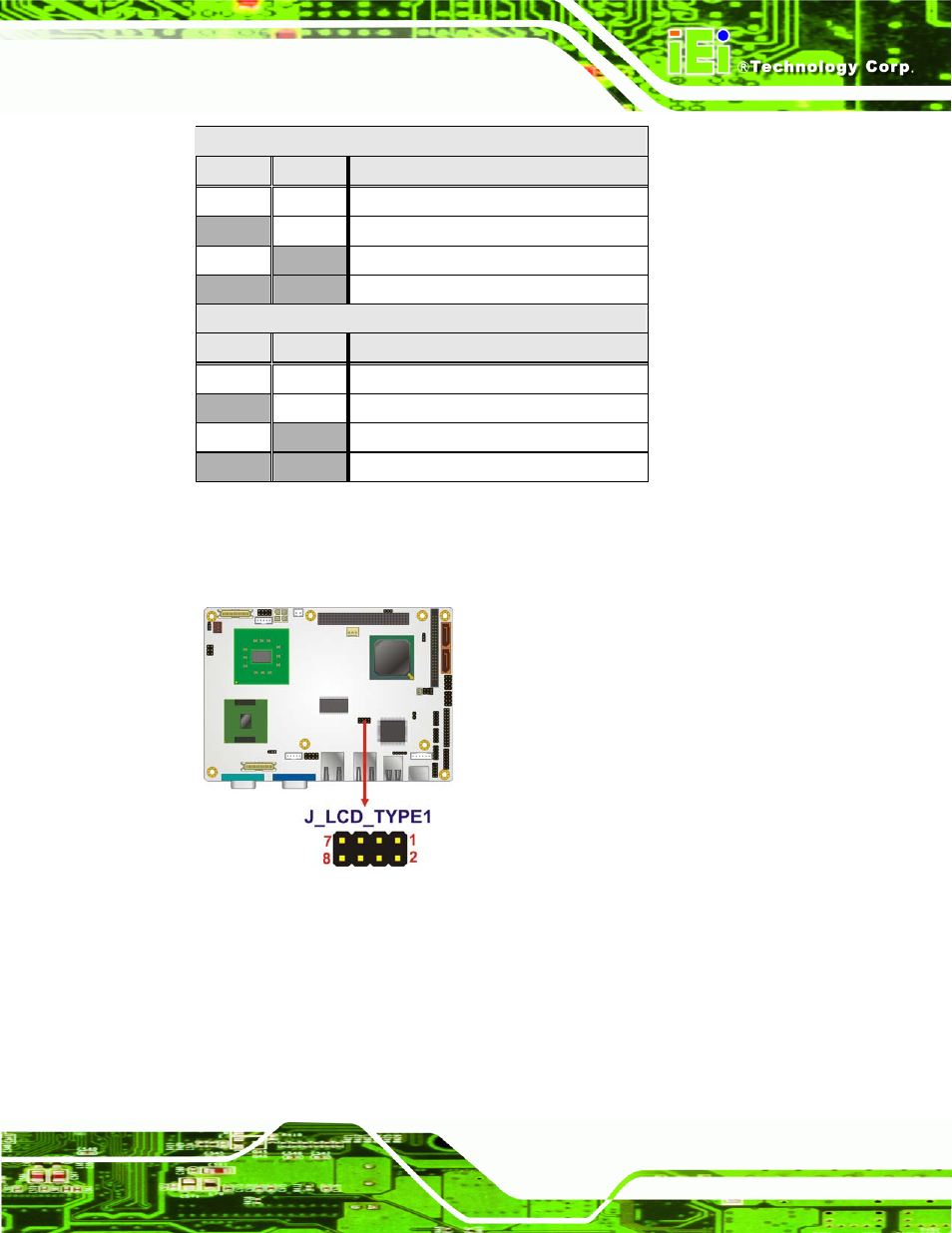

Figure 4-8:LVDS Panel Resolution Jumper Pinout Locations
