NANO-945GSE EPIC Motherboard

Page 64

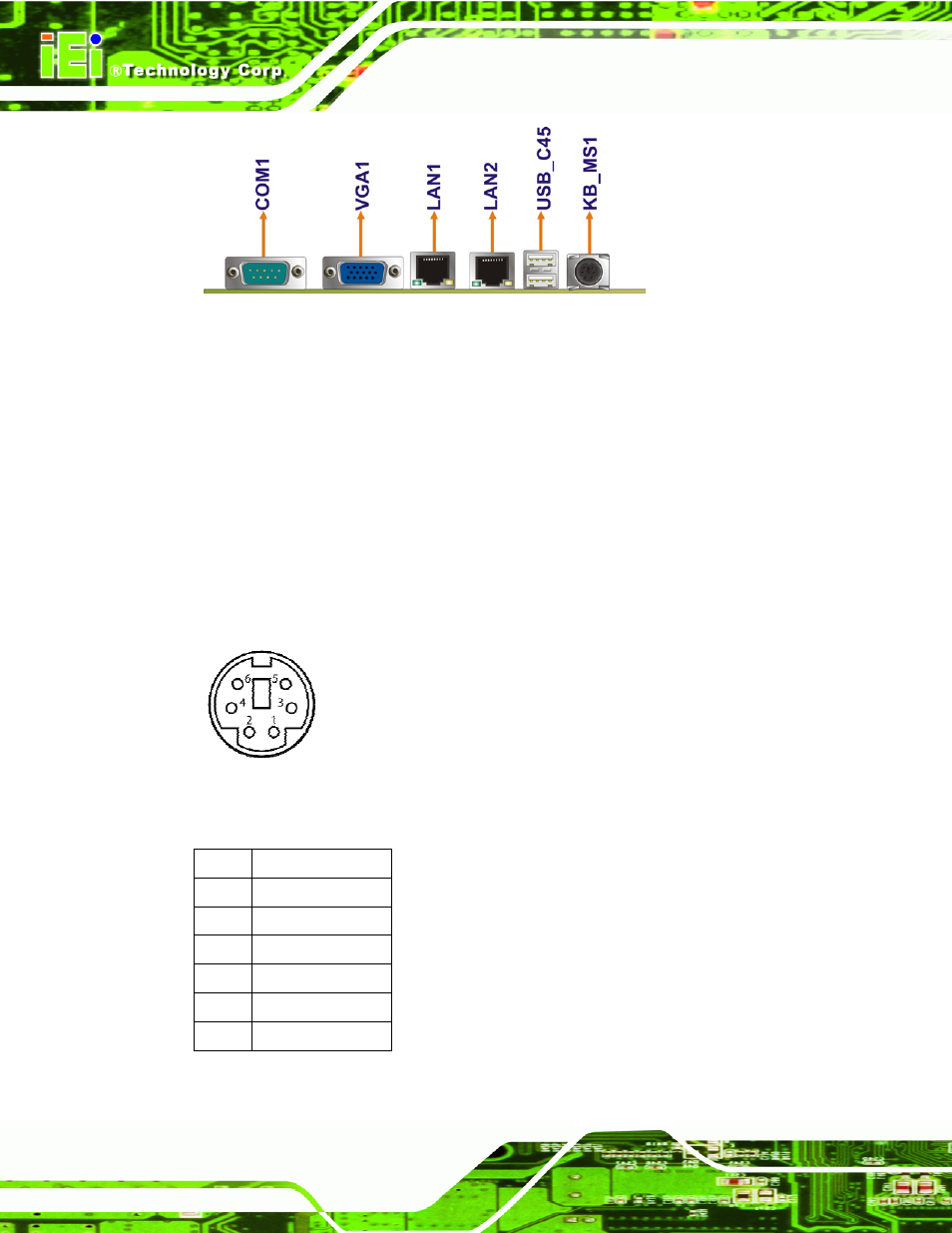

Figure 3-24: NANO-945GSE External Peripheral Interface Connector

3.4.1 Keyboard/Mouse Connector

CN Label:

KB/MS

CN Type:

PS/2

CN Location:

See Figure 3-24 (labeled 1)

CN Pinouts:

See Figure 3-25, Table 3-25

The NANO-945GSE keyboard and mouse connector is a standard PS/2 connector.

Figure 3-25: PS/2 Pinout and Configuration

PIN DESCRIPTION

1 KB

DATA

2 MS

DATA

3 GND

4 VCC

5 KB

CLOCK

6 MS

CLOCK

Table 3-25: Keyboard Connector Pinouts
