NANO-945GSE EPIC Motherboard
Page 41

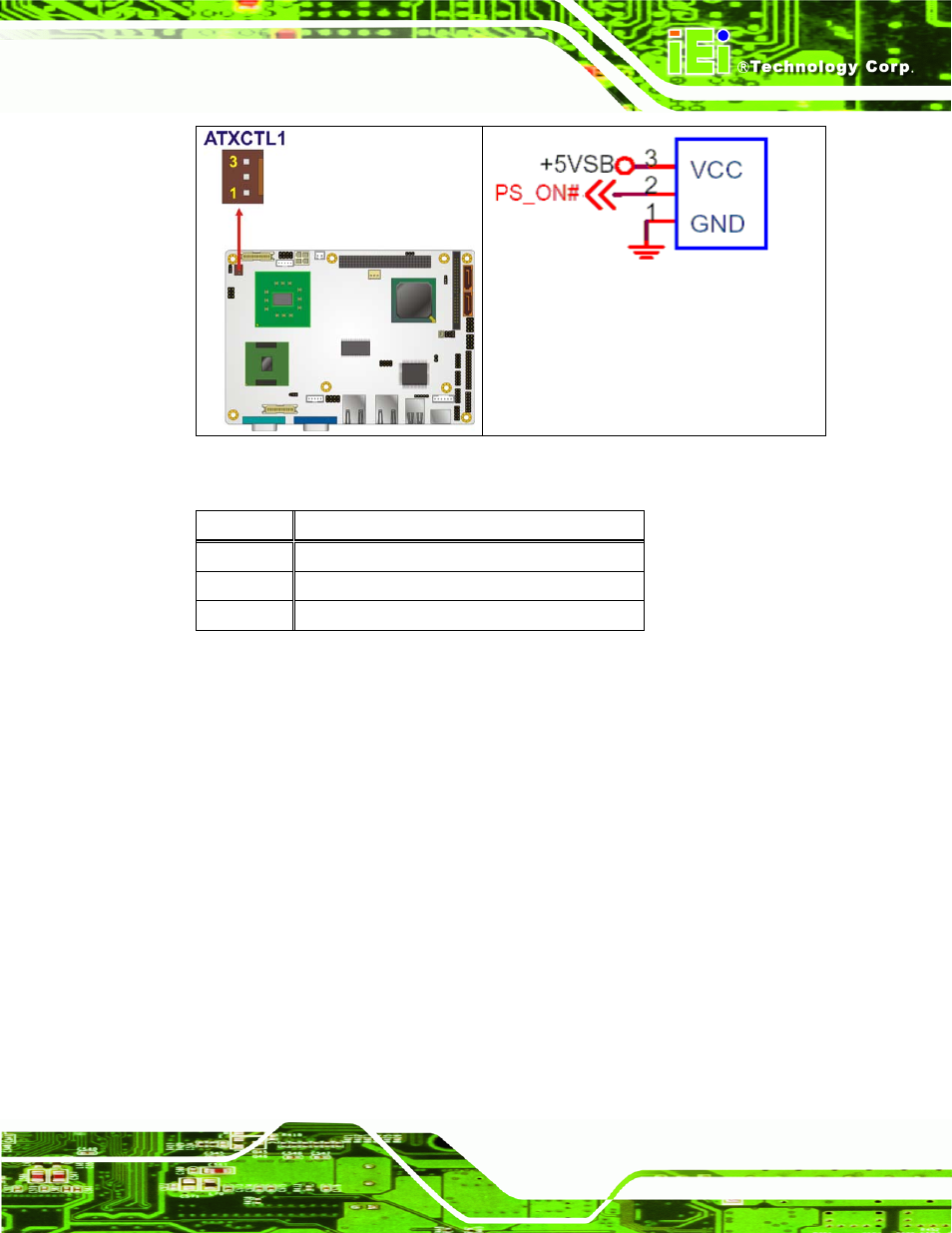

Figure 3-5: ATX Power Supply Enable Connector Location
PIN NO. DESCRIPTION
1 GND
2 PS-ON
3 +5V Standby
Table 3-5: ATX Power Supply Enable Connector Pinouts
3.3.4 Audio Connector (9-pin)
CN Label: J_AUDIO1
CN Type: 9-pin header (2x5)
CN Location: See Figure 3-6
CN Pinouts: See Table 3-6
The 9-pin audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.
