NANO-945GSE EPIC Motherboard

Page 77

AT Power Select

Description

Short 1 – 2

Use AT power

Default

Open Use

ATX

power

Table 4-2: AT Power Select Jumper Settings

The location of the AT Power Select jumper is shown in Figure 4-4 below.

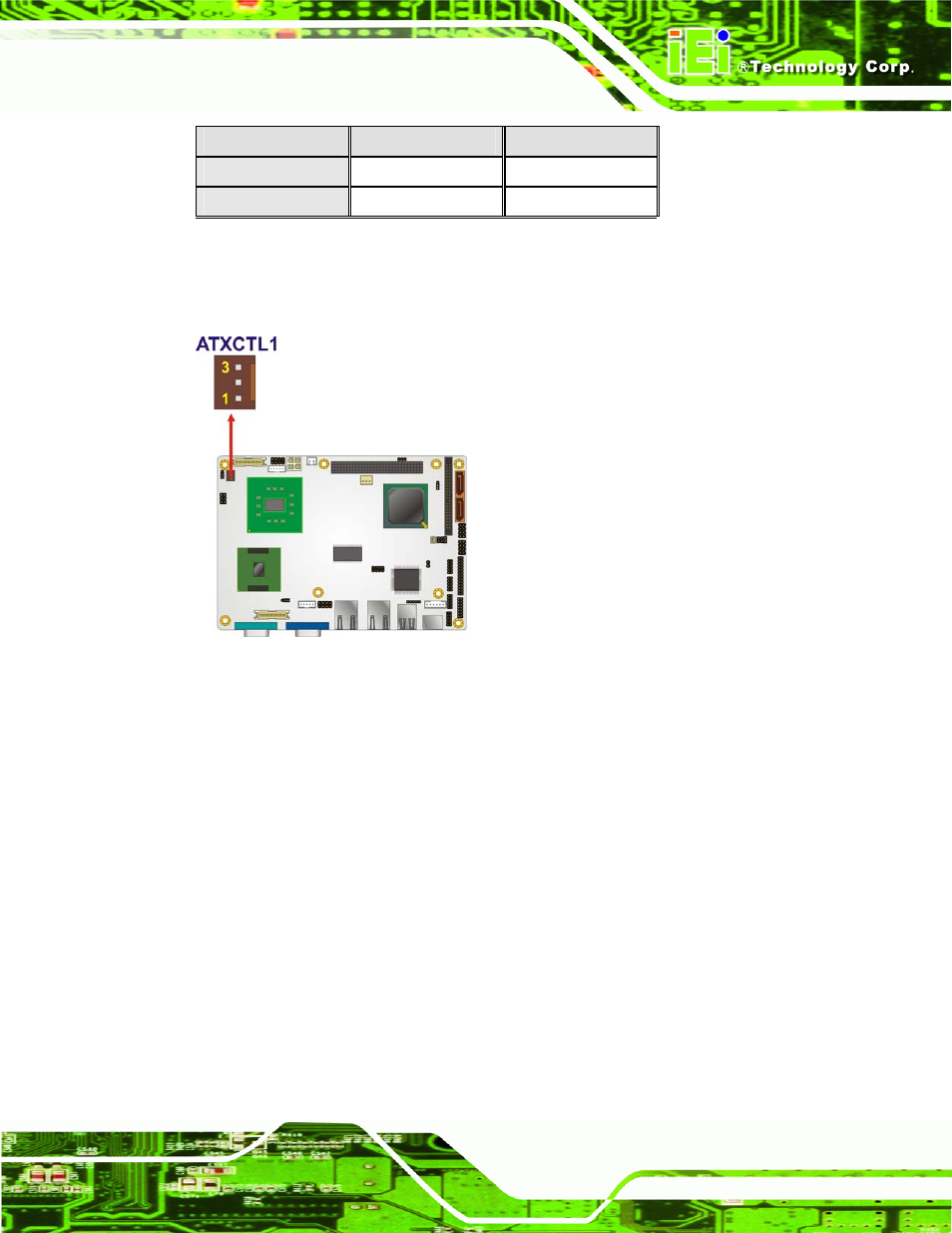

Figure 4-4: AT Power Select Jumper Location

4.5.2 CF Card Setup

Jumper Label:

JCF1

Jumper Type:

2-pin header

Jumper Settings:

See Table 4-3

Jumper Location:

See Figure 4-5

The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave

device or the master device. CF Card Setup jumper settings are shown in Table 4-3.
