NANO-945GSE EPIC Motherboard
Page 61
3.3.19 Serial Port Connector (COM 2)(RS-232, RS-422 or RS-485)
CN Label: COM2
CN Type: 14-pin header (2x7)
CN Location: See Figure 3-21
CN Pinouts: See Table 3-22
The 14-pin serial port connector connects to the COM2 serial communications channels.
COM2 is a multi function channel. In default mode COM2 is an RS-232 serial
communication channel but, with the COM2 function select jumper, can be configured as
either an RS-422 or RS-485 serial communications channel.

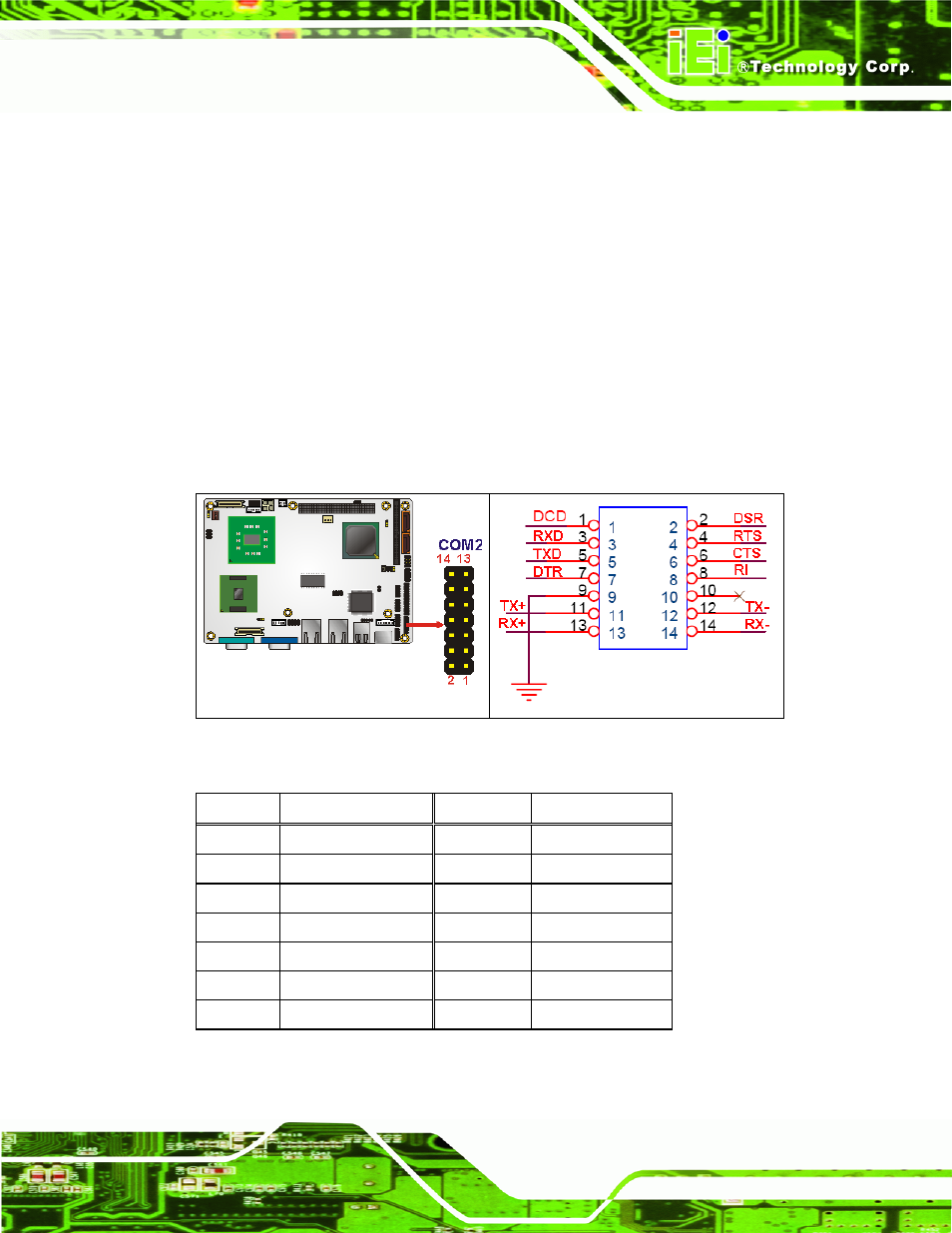

Figure 3-21: RS-232/422/485 Serial Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NDCD 2 NDSR2
3 NRX 4 NRTS2
5 NTX 6 NCTS2
7 NDTR 8 NRI2
9 GND 10 GND
11 TXD485+ 12 TXD485-
13 RXD485+ 14 RXD485-
Table 3-22: RS-232/RS-485 Serial Port Connector Pinouts
