Page 101

NANO-945GSE EPIC Motherboard

Page 101

Step 1:

Locate the dual PS/2 connector. The location of the PS/2 connector is shown

in Chapter 3.

Step 2:

Insert the keyboard/mouse connector.

Insert the PS/2 connector on the end

of the PS/2 y-cable into the external PS/2 connector. See Figure 4-24.

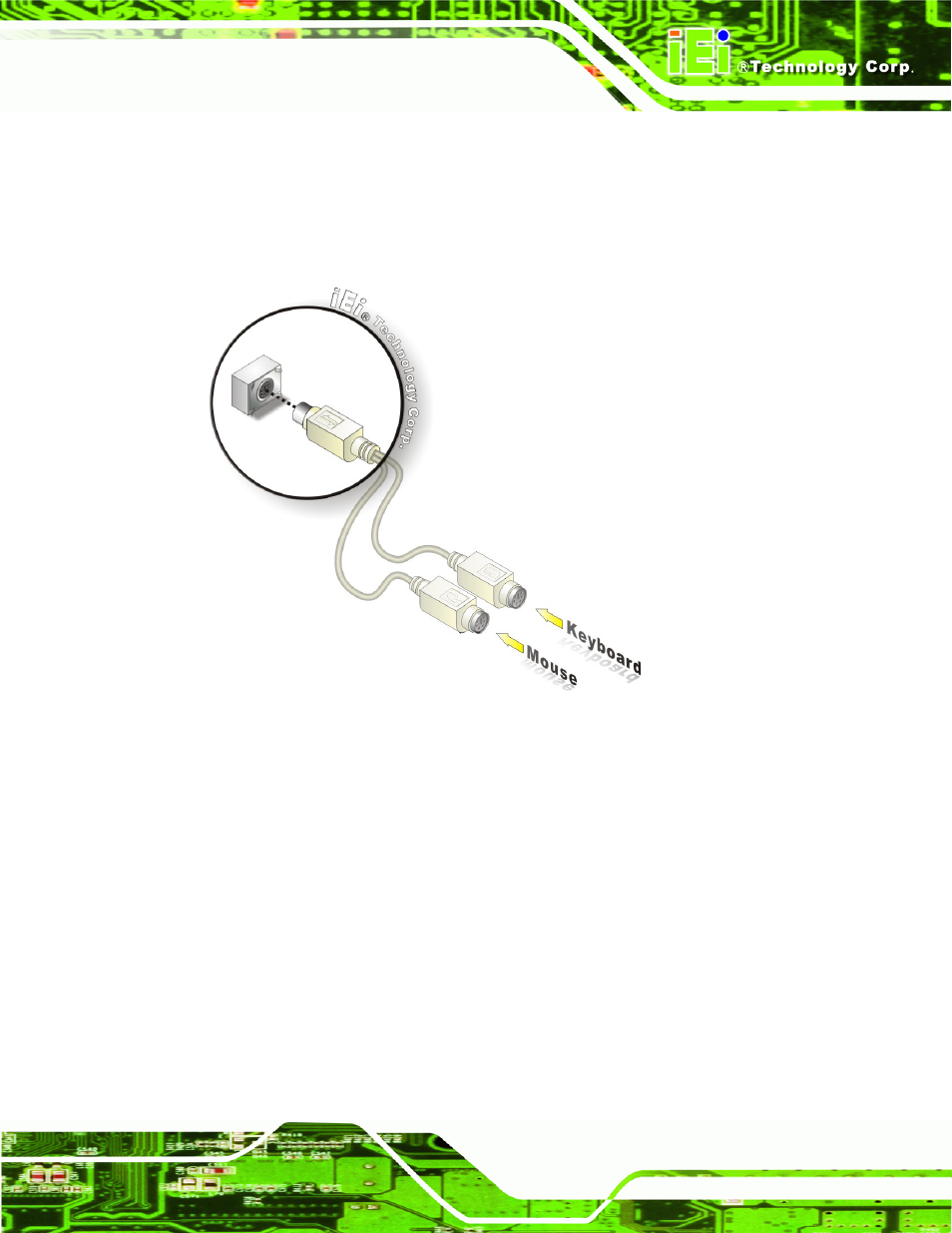

Figure 4-24: PS/2 Keyboard/Mouse Connector

Step 3:

Connect the keyboard and mouse. Connect the keyboard and mouse to the

appropriate connector. The keyboard and mouse connectors can be

distinguished from each other by looking at the small graphic at the top of the

connector.

Step 0:

4.8.3 Serial Device Connection

The NANO-945GSE has a single female DB-9 connector on the external peripheral

interface panel for a serial device. Follow the steps below to connect a serial device to the

NANO-945GSE.

Step 1:

Locate the DB-9 connector. The location of the DB-9 connector is shown in
