Page 42

NANO-945GSE EPIC Motherboard

Page 42

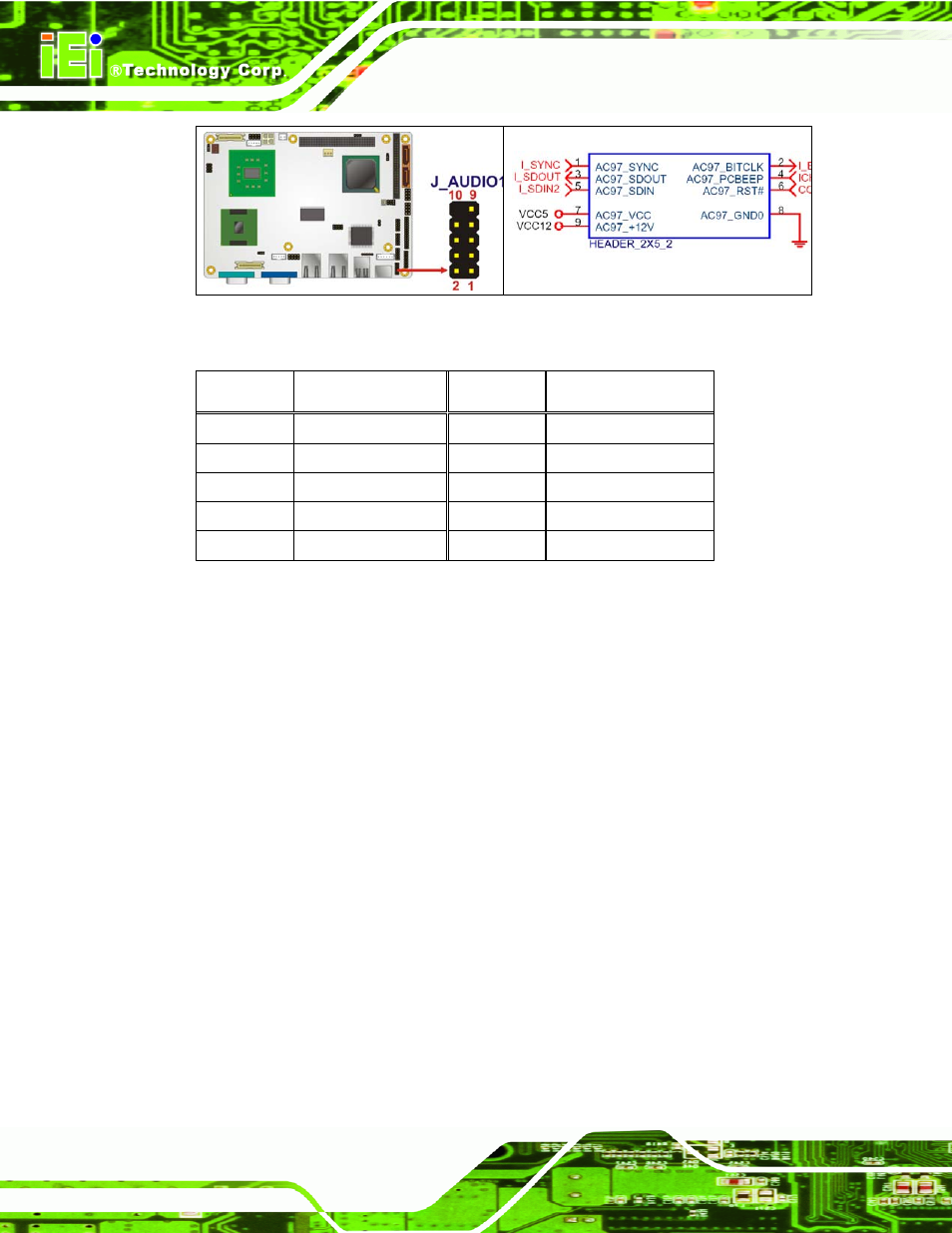

Figure 3-6: Audio Connector Location (9-pin)

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 SYNC

2 BITCLK

3 SDOUT

4 PCBEEP

5 SDIN

6 RST#

7 VCC

8 GND

9 +12V

Table 3-6: Audio Connector Pinouts (9-pin)

3.3.5 Backlight Inverter Connector

CN Label:

INVERTER1 and INVERTER2

CN Type:

5-pin wafer (1x5)

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-7

The backlight inverter connectors provide the backlights on the LCD display connected to

the NANO-945GSE with +12V of power.
