The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0

ports. Each USB connector can support two USB devices. Additional external USB ports

are found on the rear panel. The USB ports are used for I/O bus expansion.

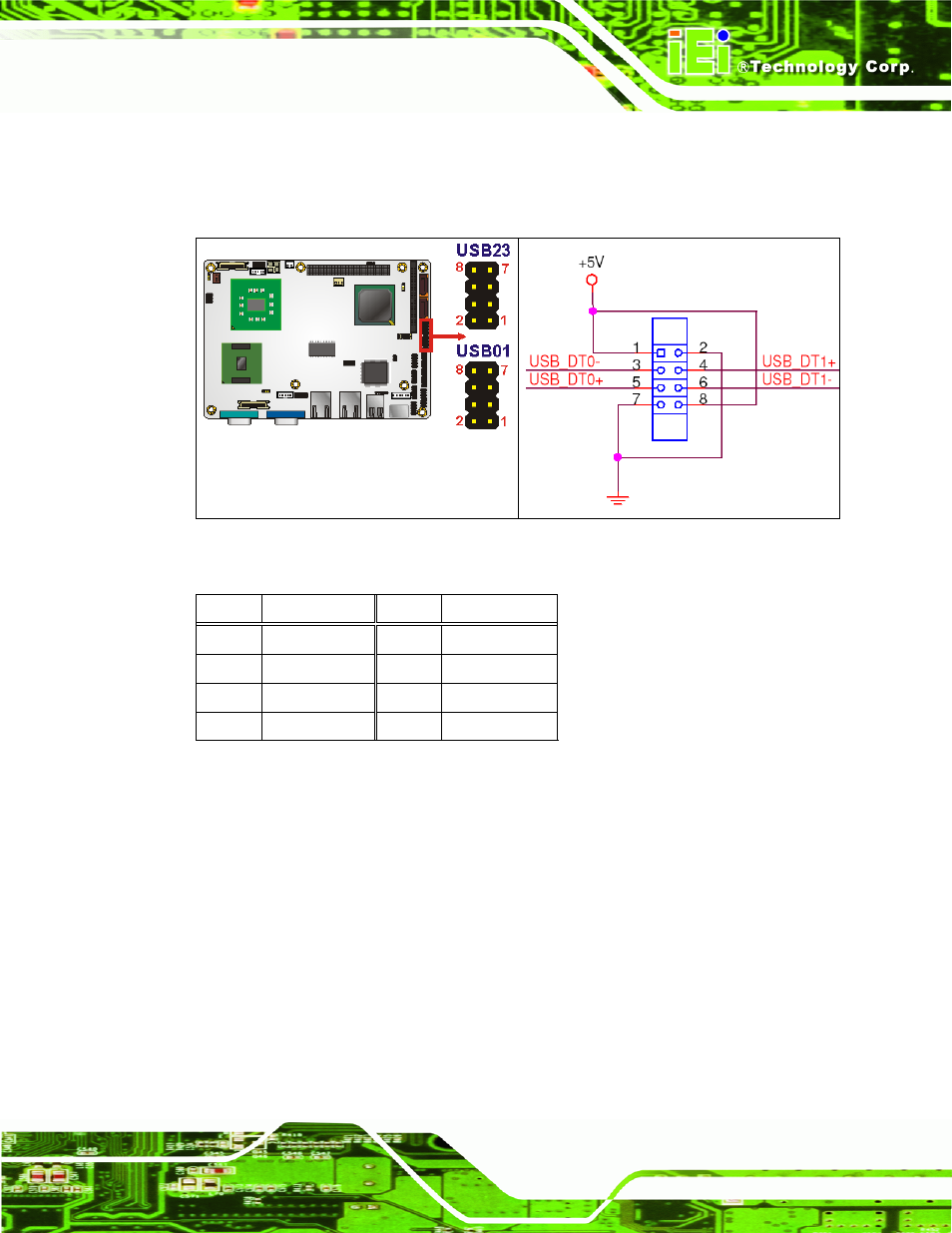

Figure 3-23: USB Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC

2 GND

3 DATA- 4 DATA+

5 DATA+ 6 DATA-

7 GND

8 VCC

Table 3-24: USB Port Connector Pinouts

3.4 External Peripheral Interface Connector Panel

Figure 3-24 shows the NANO-945GSE external peripheral interface connector (EPIC)

panel. The NANO-945GSE EPIC panel consists of the following:



2 x RJ-45 LAN connectors



1 x PS/2 connectors



1 x Serial port connectors



2 x USB connectors



1 x VGA connector
