 Load Optimal Defaults
 Load Failsafe Defaults.
After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in
7
Table 4-4.
AT Power Select Description
Short 1 - 2 Keep CMOS Setup Default
Short 2 - 3 Clear CMOS Setup
Table 4-4: Clear CMOS Jumper Settings
The location of the clear CMOS jumper is shown in
7
Figure 4-6 below.

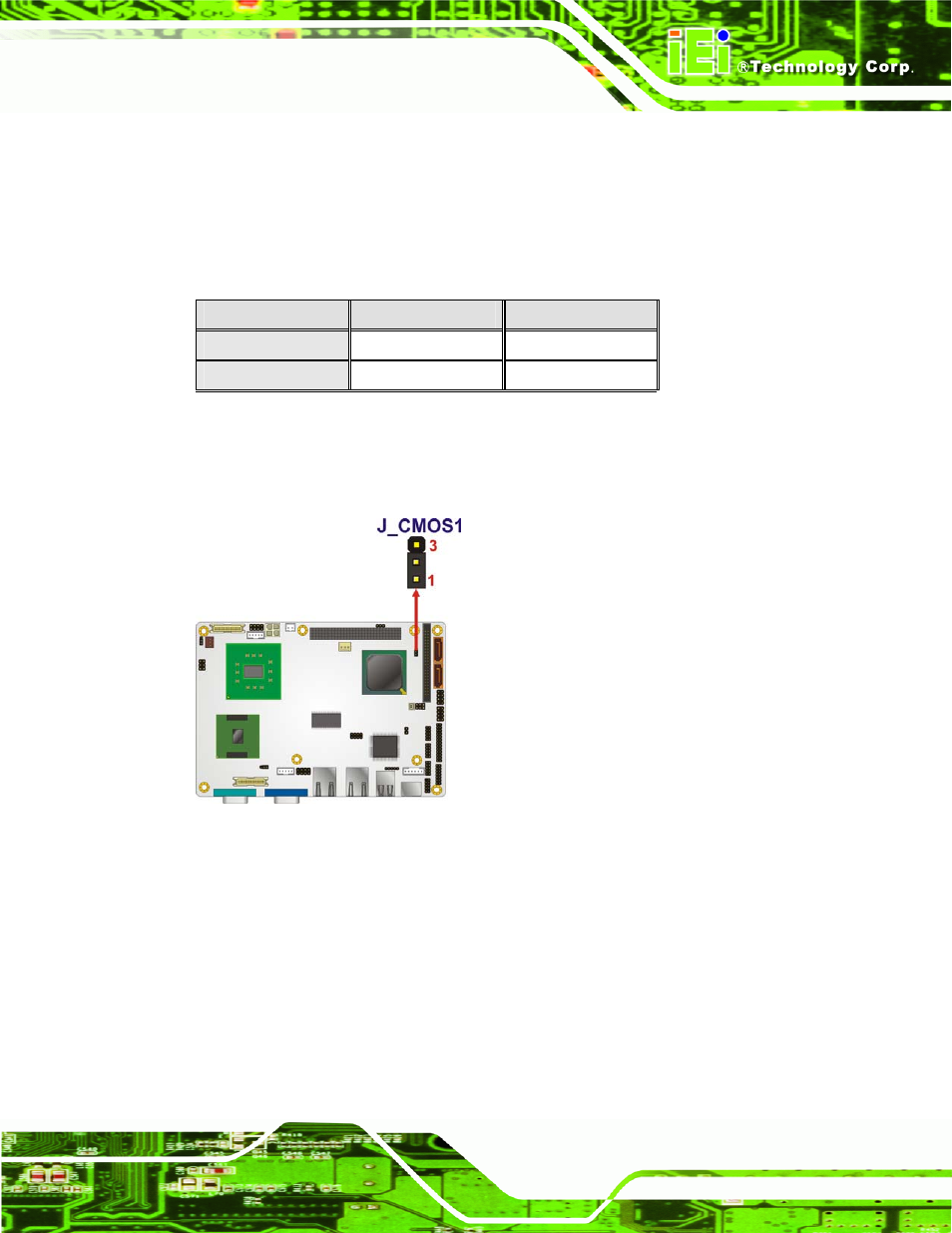

Figure 4-6: Clear CMOS Jumper
4.5.4 COM 2 Function Select Jumper
Jumper Label: JP1
Jumper Type: 6-pin header
Jumper Settings: See Table 4-5
Jumper Location: See Figure 4-7
