NANO-945GSE EPIC Motherboard

Page 54

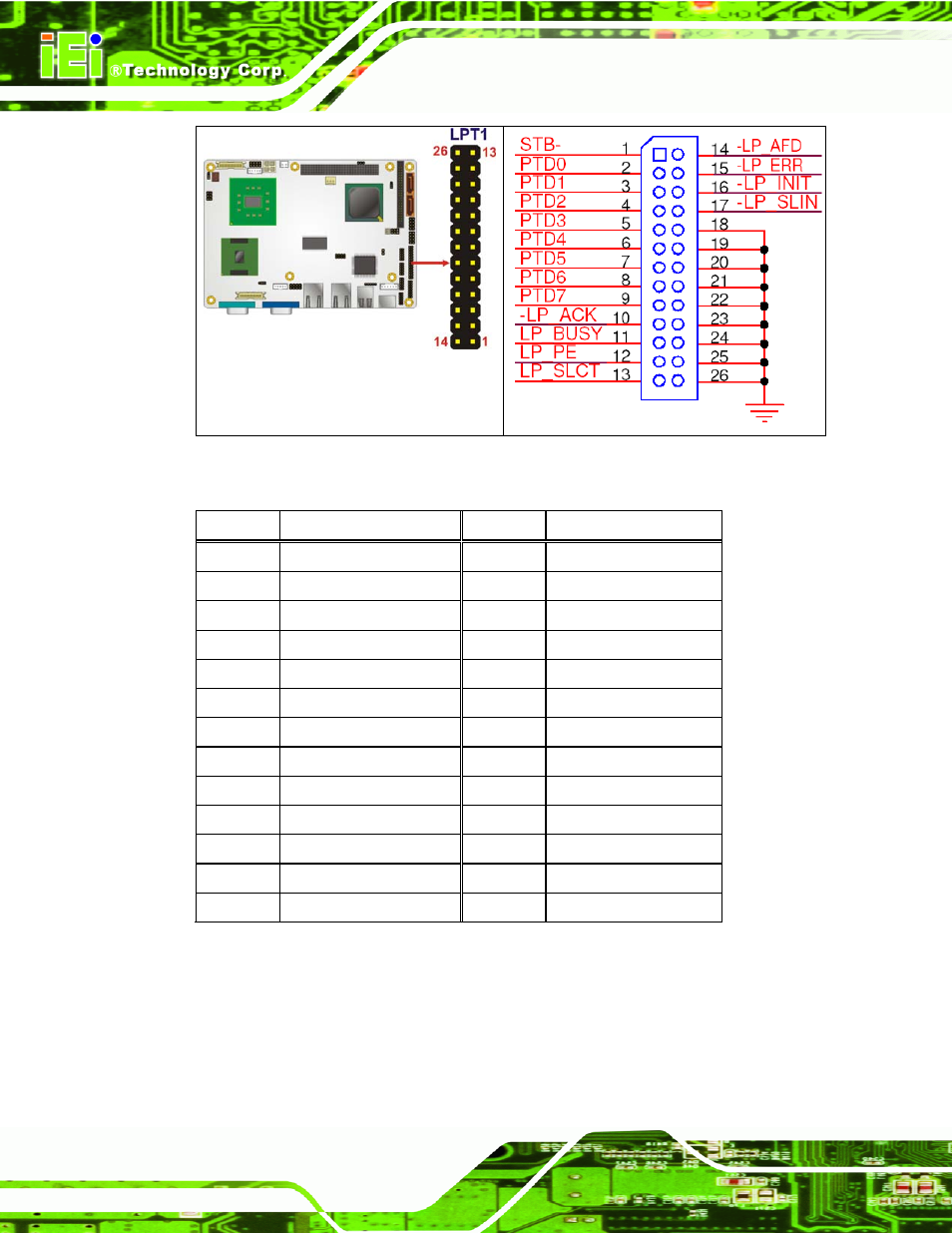

Figure 3-16: Parallel Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 STROBE#

2 DATA

0

3 DATA

1

4 DATA

2

5 DATA

3

6 DATA

4

7 DATA

5

8 DATA

6

9 DATA

7

10

ACKNOWLEDGE

11 BUSY

12 PAPER

EMPTY

13 PRINTER

SELECT 14 AUTO

FORM

FEED

#

15 ERROR#

16 INITIALIZE

17 PRINTER

SELECT

LN#

18 GROUND

19 GROUND

20 GROUND

21 GROUND

22 GROUND

23 GROUND

24 GROUND

25 GROUND

26 NC

Table 3-17: Parallel Port Connector Pinouts

3.3.15 PCIe Mini Card Slot

CN Label:

CN4
