NANO-945GSE EPIC Motherboard
Page 65
3.4.2 LAN Connectors
CN Label: LAN1 and LAN2
CN Type: RJ-45
CN Location: See
7
Figure 3-24
CN Pinouts: See
7
Table 3-26
The NANO-945GSE is equipped with two built-in RJ-45 Ethernet controllers. The
controllers can connect to the LAN through two RJ-45 LAN connectors. There are two
LEDs on the connector indicating the status of LAN. The pin assignments are listed in the
following table:
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 3-26: LAN Pinouts

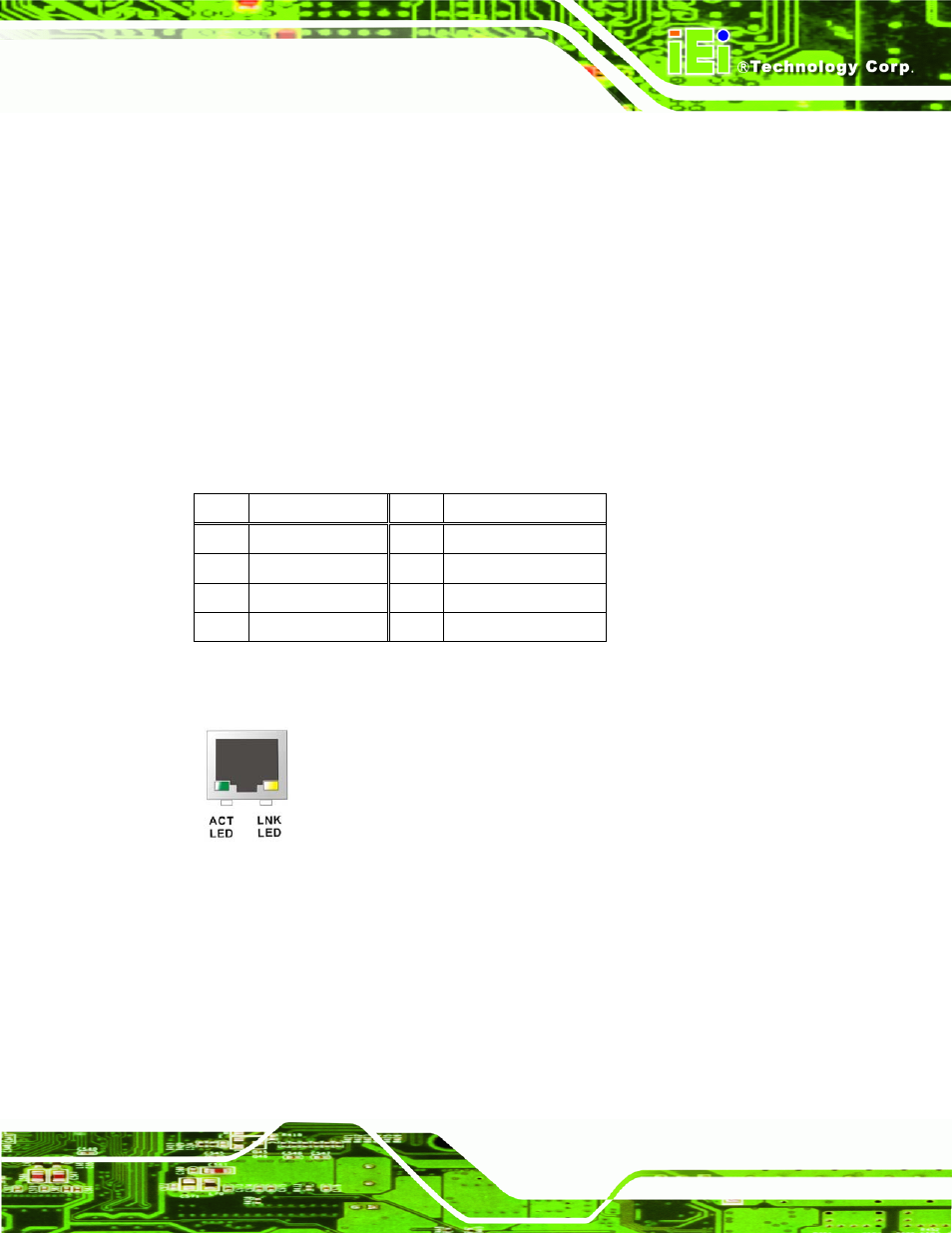

Figure 3-26: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
7
Table 3-27.
