NANO-945GSE EPIC Motherboard

Page 51

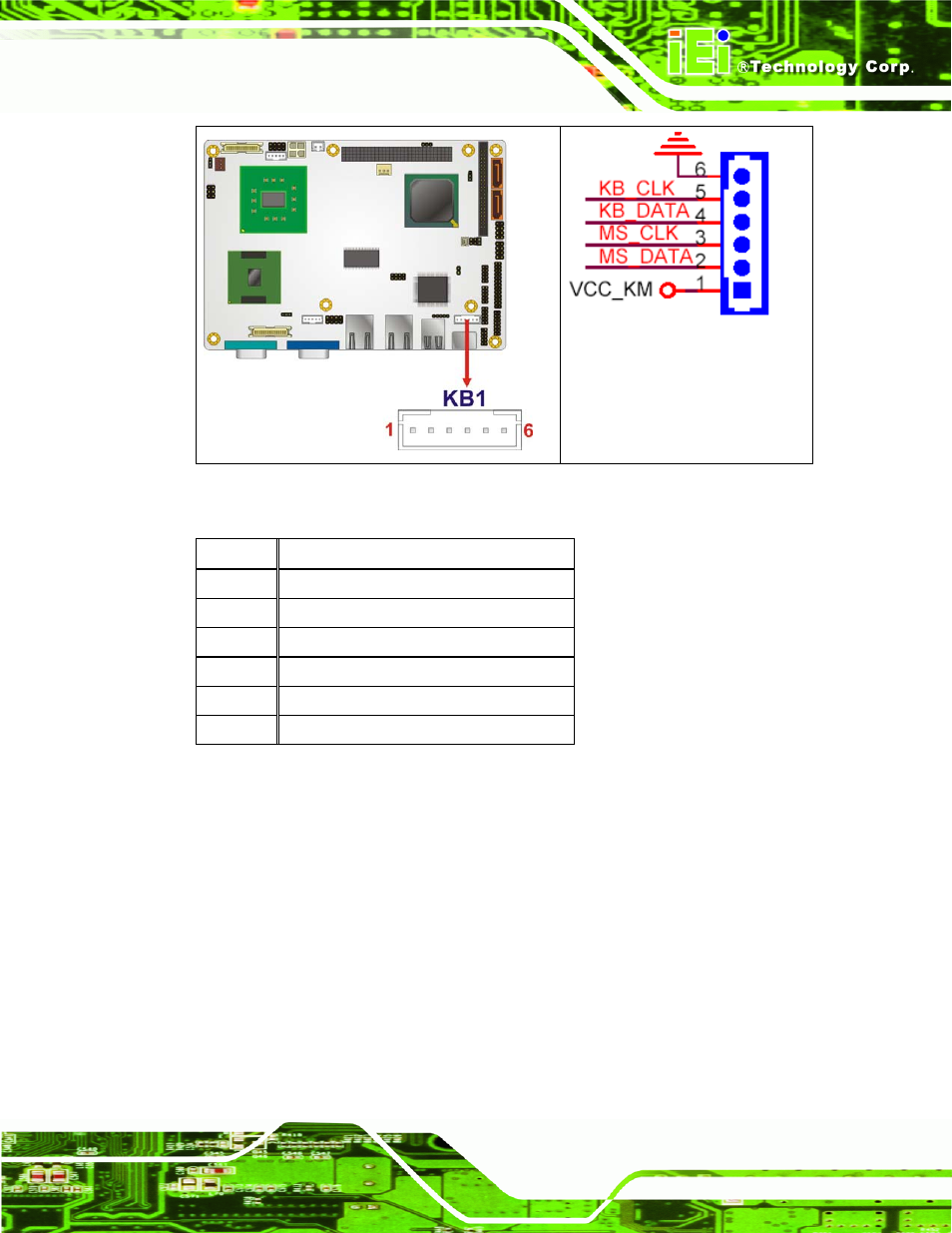

Figure 3-14: Keyboard/Mouse Connector Location

PIN NO.

DESCRIPTION

1

+5V KB DATA

2 MS

DATA

3 MS

CLK

4 KB

DATA

5 KB

CLK

6 GROUND

Table 3-14: Keyboard/Mouse Connector Pinouts

3.3.13 LVDS LCD Connector

CN Label:

LVDS1 and LVDS2

CN Type:

30-pin crimp (2x10)

CN Location:

See

7

Figure 3-15

CN Pinouts:

See

7

Table 3-15 and Figure 4-16

The 30-pin LVDS LCD connectors can be connected to single channel or dual channel,

24-bit or 36-bit LVDS panel.
