IEI Integration NANO-945GSE v2.00 - Manual (Page 48)

NANO-945GSE EPIC Motherboard
Page 48
FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION
1 PWR_BTN 2 VCC5 Power
Button 3 GND
Power LED
4 GND
5 HDD_LED+ 6 SYSRST- HDD LED
7 HDD_LED-
Reset
8 GND
Table 3-11: Front Panel Connector Pinouts (8-pin)
3.3.10 IDE Connector (44-pin)
CN Label: IDE1
CN Type: 44-pin header (2x22)
CN Location: See
6
Figure 3-12
CN Pinouts: See
6
Table 3-12
One 44-pin IDE device connector on the NANO-945GSE supports connectivity to two hard
disk drives.

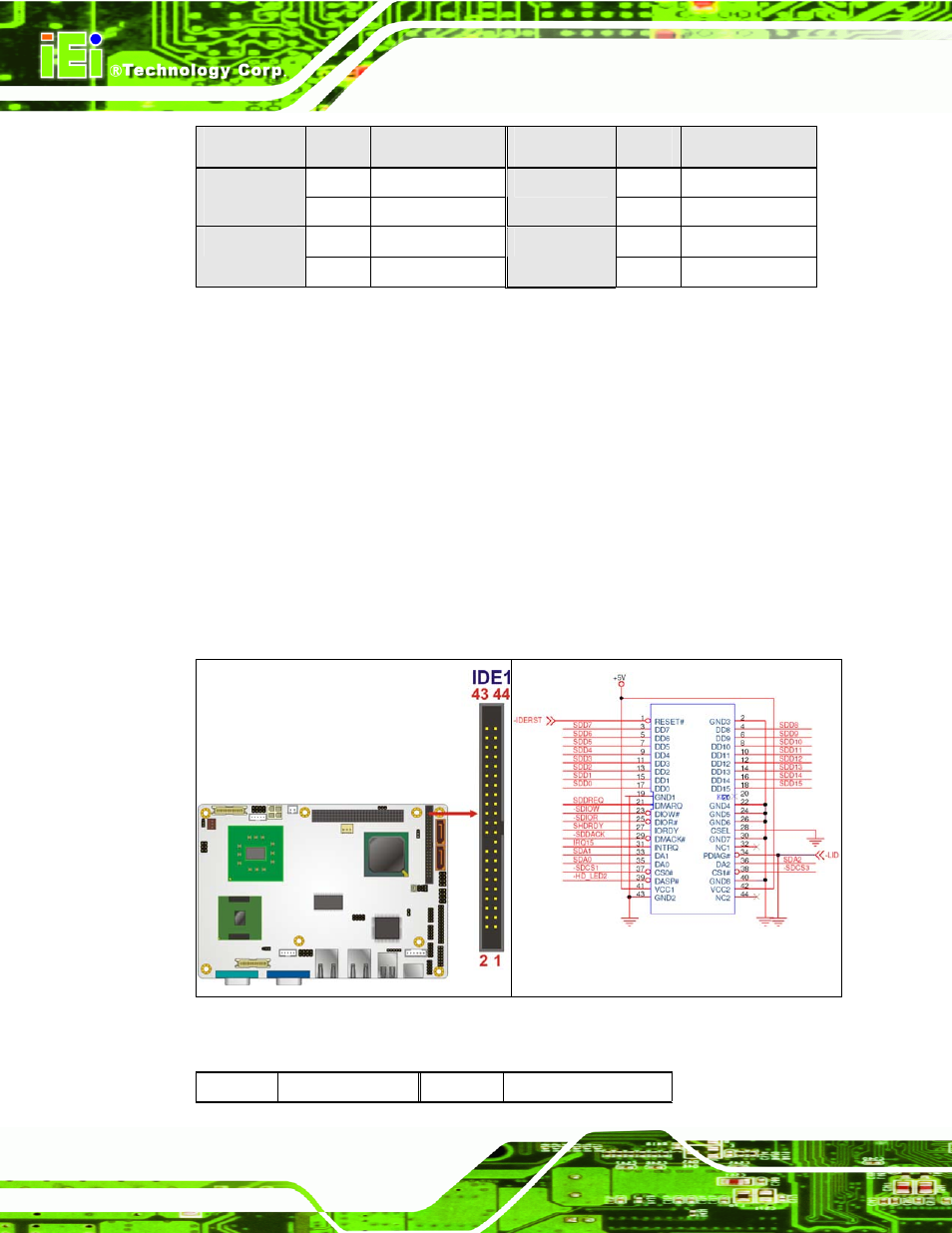

Figure 3-12: Secondary IDE Device Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
