3.3.20 TV Out Connector
CN Label: TV1
CN Type: 6-pin header (2x3)
CN Location: See
7
Figure 3-22
CN Pinouts: See
7
Table 3-23
The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA
connector. The TV out connector makes displaying media data on a television easier.

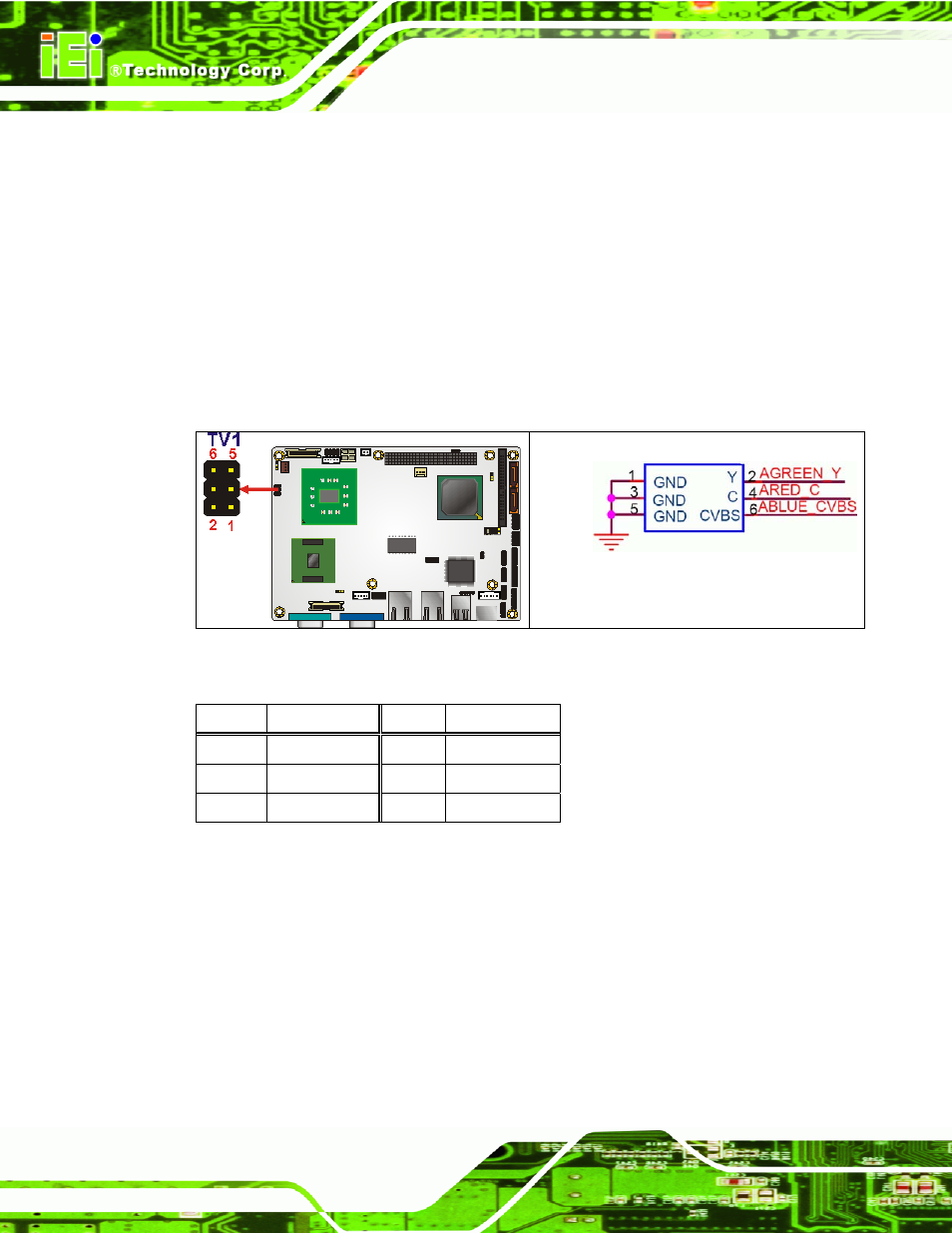

Figure 3-22: TV Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 IOY
3 GND 4 IOC
5 GND 6 IOCOMP
Table 3-23: TV Port Connector Pinouts
3.3.21 USB Connectors (Internal)
CN Label: USB01 and USB23
CN Type: 8-pin header (2x4)
CN Location: See
7
Figure 3-23
CN Pinouts: See
7
Table 3-24
