NANO-945GSE EPIC Motherboard
Page 78
CF Card Setup Description
Open Slave Default
Closed Master
Table 4-3: CF Card Setup Jumper Settings
The CF Card Setup jumper location is shown in Figure 4-5.

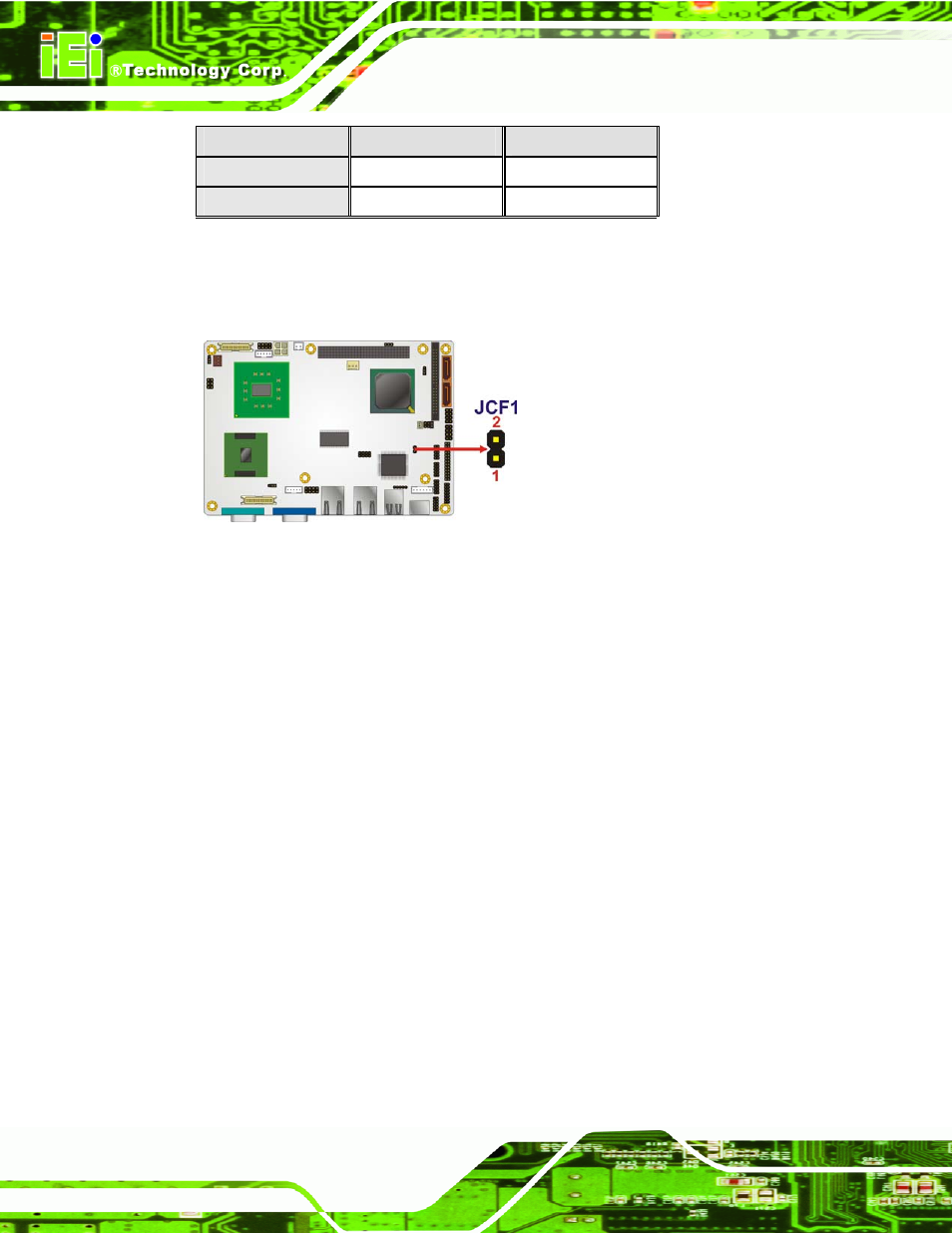

Figure 4-5: CF Card Setup Jumper Location
4.5.3 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type: 3-pin header
Jumper Settings: See
7
Table 4-4
Jumper Location: See
7
Figure 4-6
If the NANO-945GSE fails to boot due to improper BIOS settings, the clear CMOS jumper
clears the CMOS data and resets the system BIOS information. To do this, use the jumper
cap to close pins 2 and 3 for a few seconds then reinstall the jumper clip back to pins 1
and 2.
If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault
may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the
following:
 Enter the correct CMOS setting
