NANO-945GSE EPIC Motherboard
Page 21

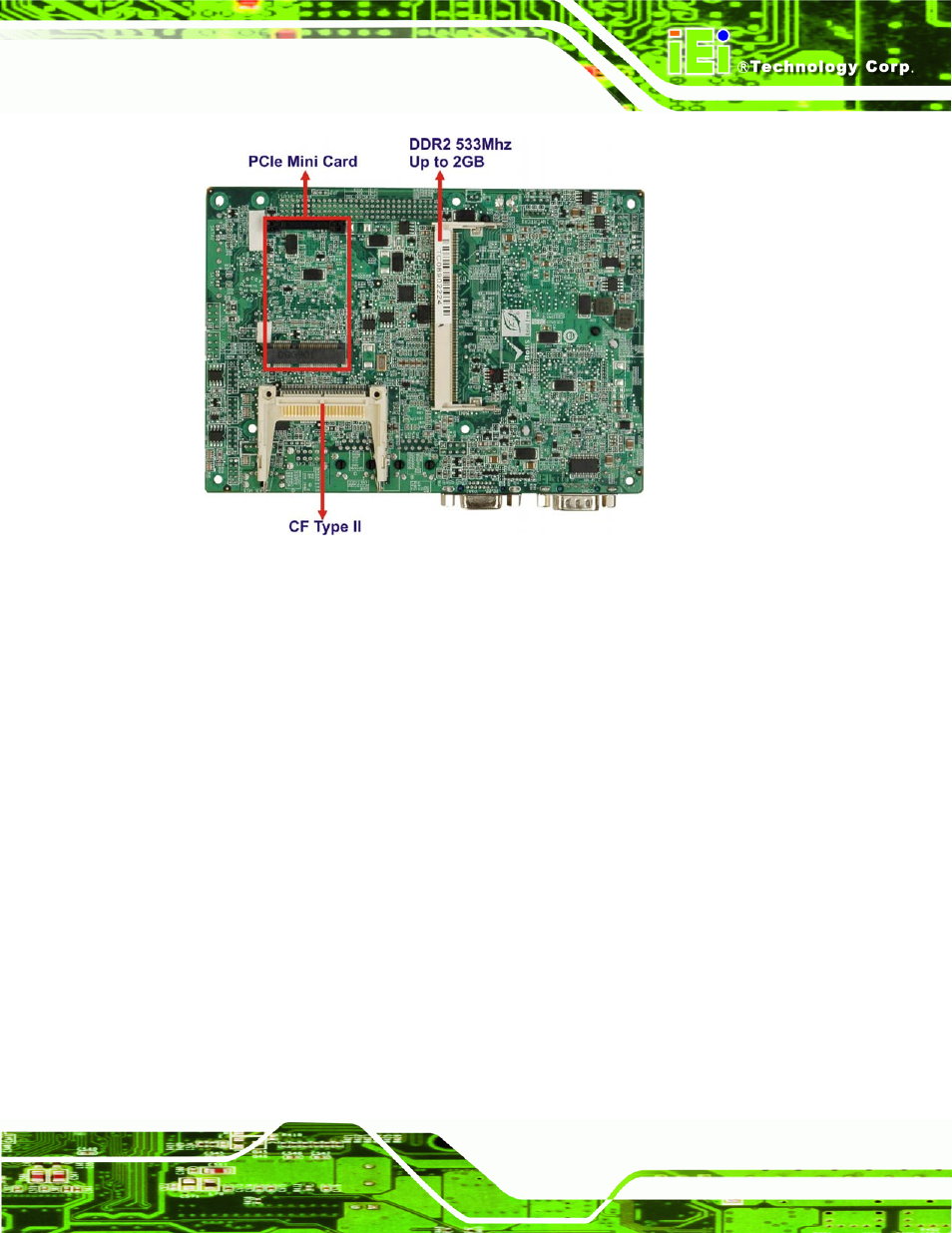

Figure 1-3: NANO-945GSE Overview [Solder Side]
The NANO-945GSE has the following connectors on-board:
 1 x +12V power source connector
 1 x 5V power connector
 1 x Audio connector
 1 x ATX power control connector
 2 x Backlight inverter connectors
 1 x CompactFlash® socket
 1 x Digital input/output (DIO) connector
 1 x Fan connector
 1 x Front panel connector
 1 x IDE disk drive connectors (44-pin)
 1 x Infrared interface (IrDA) connector
 1 x Keyboard connector
 2 x LVDS connectors
 1 x Parallel port connector
 1 x PCI-104 slot
 1 x PCIe Mini Card slot
