4.3 Unpacking
When the NANO-945GSE is unpacked, please check all the unpacking list items listed in
Chapter 3 are indeed present. If any of the unpacking list items are not available please
contact the NANO-945GSE vendor reseller/vendor where the NANO-945GSE was
purchased or contact an IEI sales representative.
4.4 SO-DIMM and CF Card Installation
4.4.1 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the NANO-945GSE. Please make sure the purchased SO-DIMM
complies with the memory specifications of the NANO-945GSE.
SO-DIMM specifications compliant with the NANO-945GSE are listed
in Chapter 2.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.

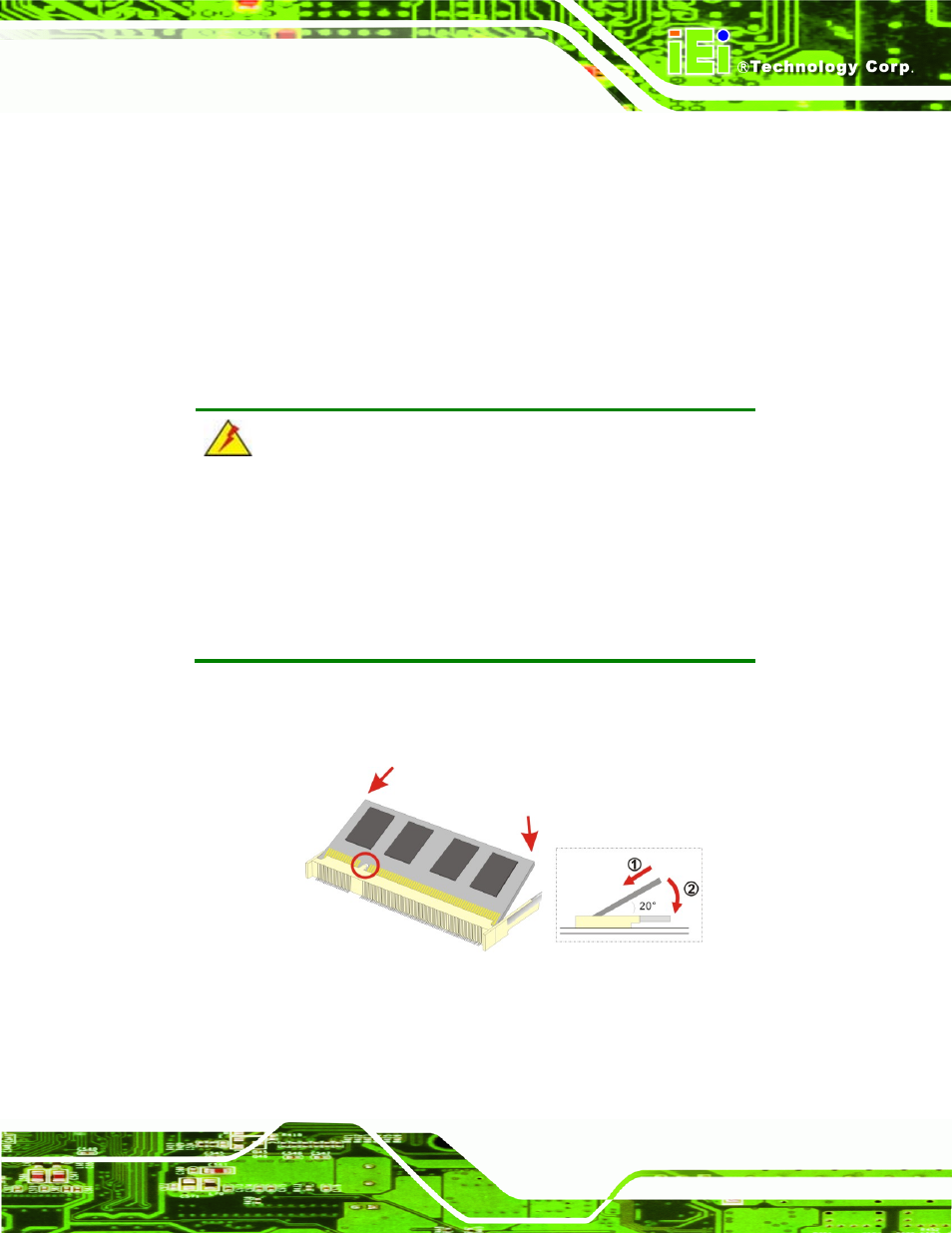

Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the NANO-945GSE on an anti-static pad
with the solder side facing up.
