Figure 4-13: vga connector – IEI Integration KINO-DH810 User Manual

Page 72

background image

KINO-DH810

P a g e 60

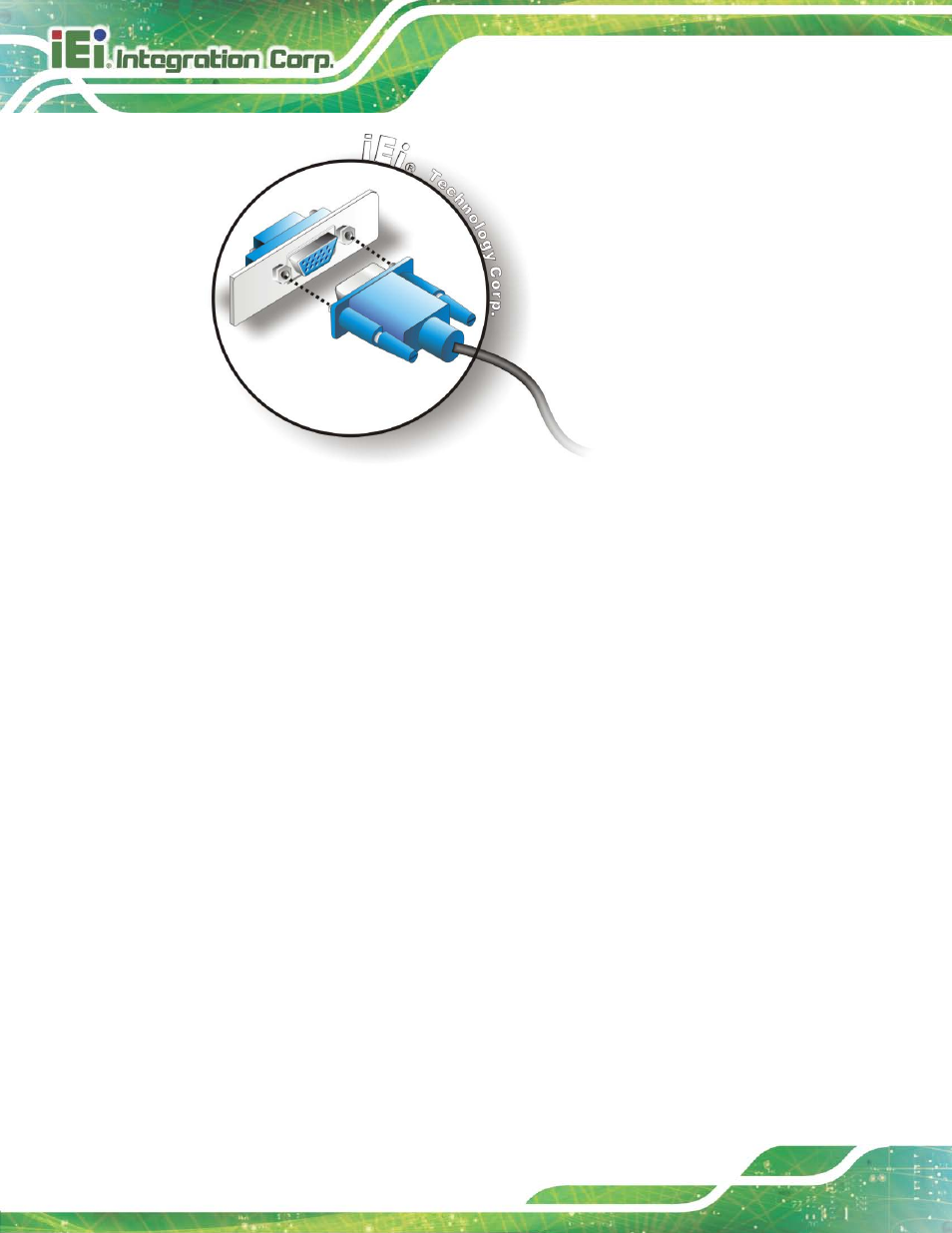

Figure 4-13: VGA Connector

S te p 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
