KINO-DH810
P a g e 27
CN Lo c a tio n : See Figure 3-12
CN P in o u ts : See Table 3-12
The front panel connector connects to the indicator LEDs and buttons on the computer’s
front panel.

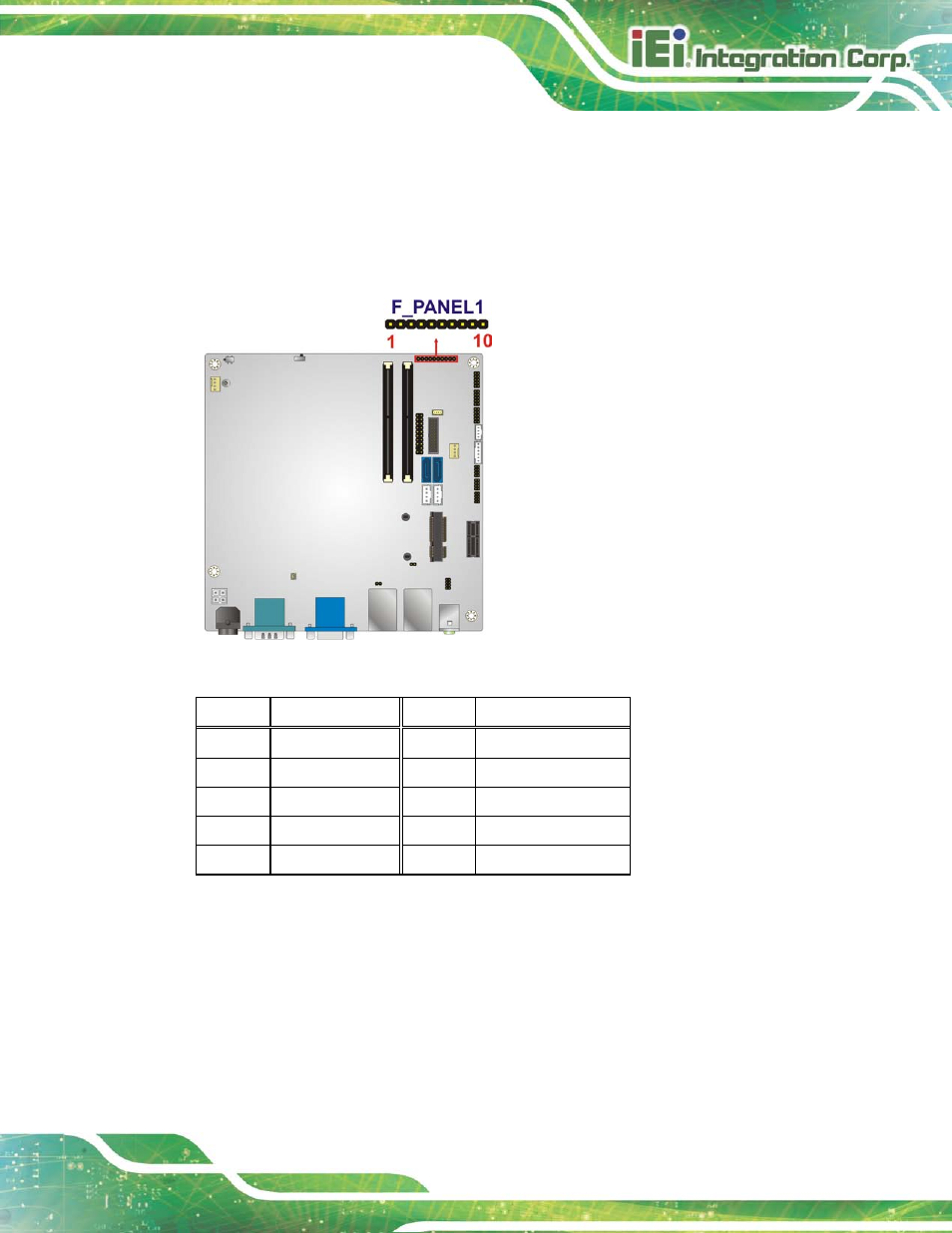

Figure 3-12: Front Panel Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 NC 2 PWRBTN_SW
3 GND 4 HDDLED+
5 HDDLED- 6 PWRLED+
7 PWRLED+ 8 GND
9 EXTRST- 10 GND
Table 3-12: Front Panel Connector Pinouts
3.2.12 Ke yb o a rd /Mo u s e Co n n e c to r
CN La b e l: KB_MS 1
CN Typ e : 6-pin wafer
CN Lo c a tio n : See Figure 3-13
