1.1 In tro d u c tio n

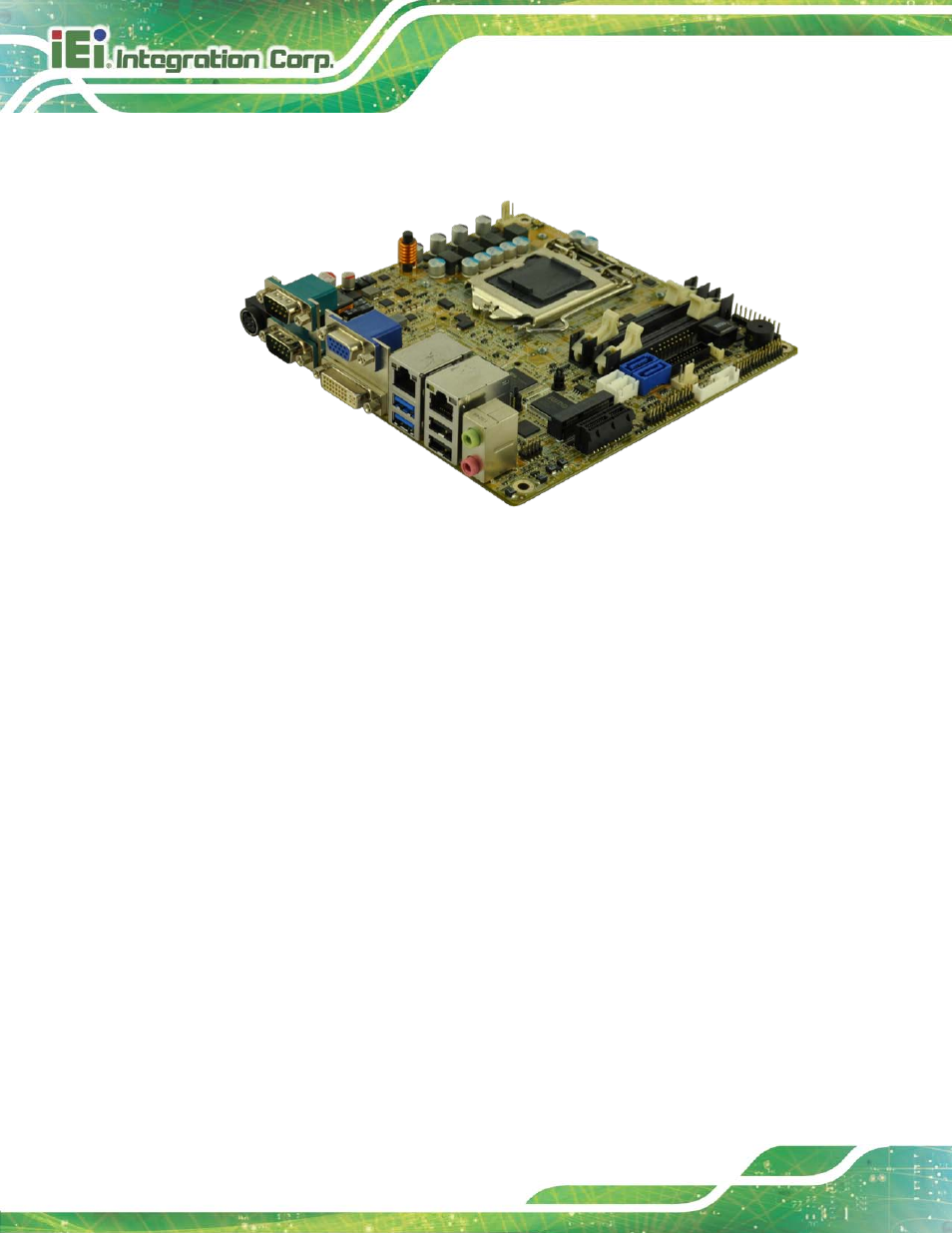

Figure 1-1: KINO-DH810

The KINO-DH810 is a Mini-ITX motherboard. It accepts a LGA1150 Intel® Core™ i7/i5/i3

and Celeron® processor and supports two 204-pin 1066/1333/1600 MHz dual-channel

DDR3 SDRAM unbuffered SO-DIMM modules up to 16 GB.

The integrated Intel® H81 system chipset supports two GbE LAN ports through dual

Intel® I211AT PCIe GbE controllers.

The KINO-DH810 includes one external VGA connector, one external DVI-D connector

and one internal display port connector. Expansion and I/O include one PCIe x1 slot, one

mini PCIe card slot, two USB 3.0 connectors on rear panel, two USB 2.0 connectors on

rear panel, four USB 2.0 connectors by pin header and two SATA 6Gb/s connectors.

Serial device connectivity is provided by one internal RS-422/485 connector, three internal

RS-232 connectors and two external RS-232 connectors.
