KINO-DH810
P a g e 35
CN P in o u ts : See Table 3-18
The SMBus (System Management Bus) connector provides low-speed system
management communications.

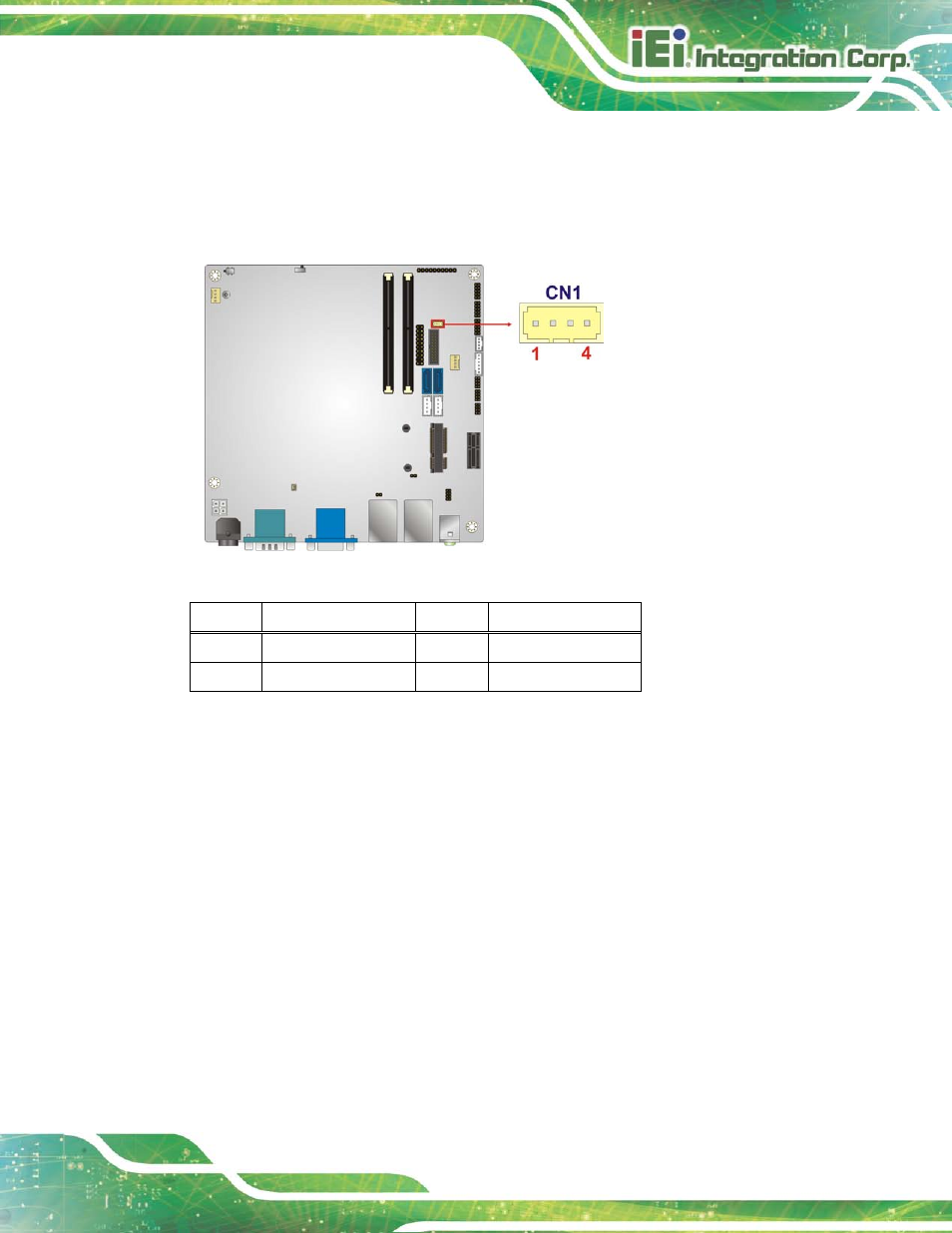

Figure 3-22: SMBus Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 GND 2 SMBDATA
3 SMBCLK 4 +5V
Table 3-18: SMBus Connector Pinouts
3.2.22 TP M Co n n e c to r
CN La b e l: TP M1
CN Typ e : 20-pin connector
CN Lo c a tio n : See Figure 3-23
CN P in o u ts : See Table 3-19
The Trusted Platform Module (TPM) connector secures the system on bootup.
