3.2.16 P o we r Bu tto n

CN La b e l:

P WR_S W1

CN Typ e :

Push button

CN Lo c a tio n :

It is an on-board power button. Push the power button to turn on the system.

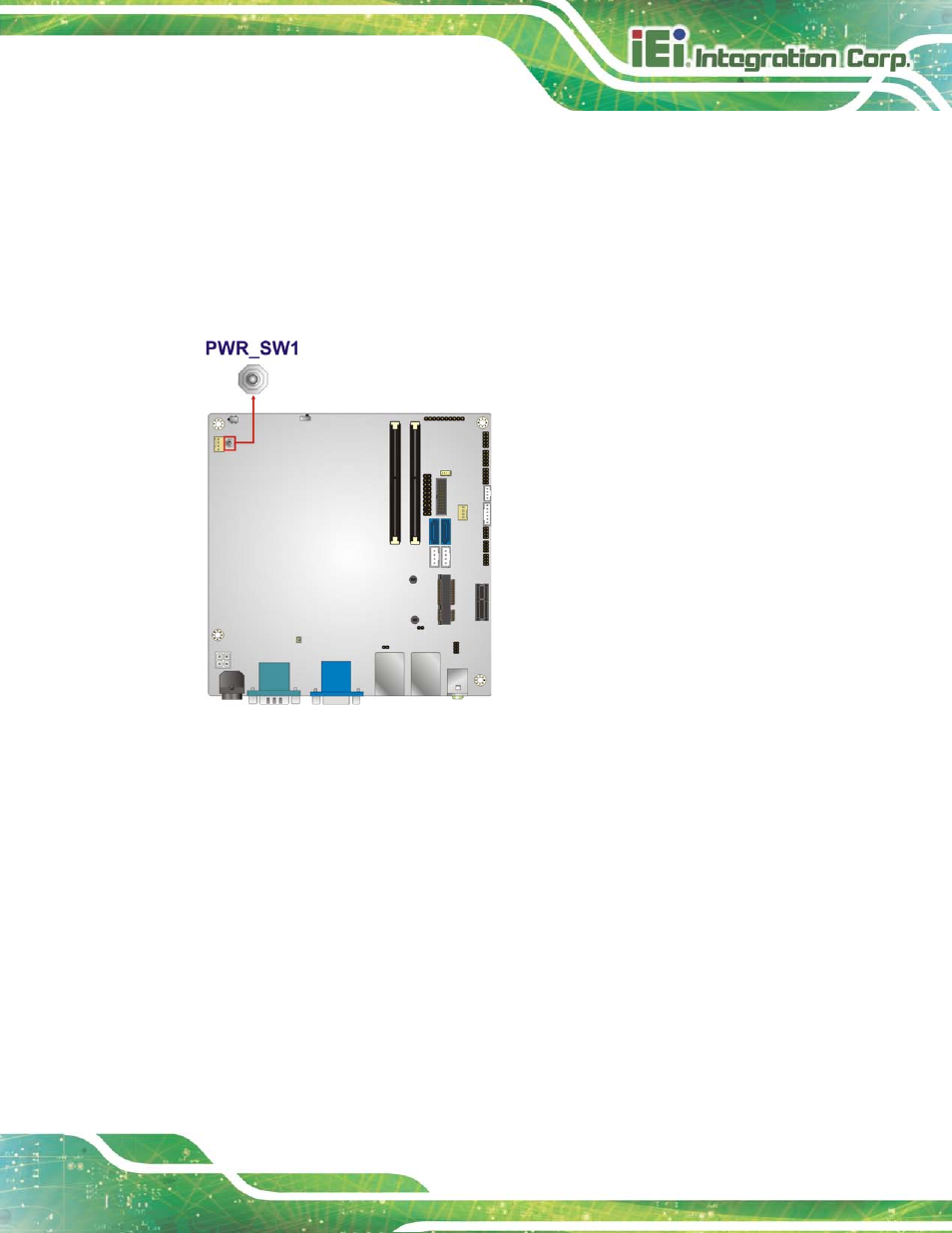

Figure 3-17: Power Button Location

3.2.17 S ATA 6Gb /s Drive Co n n e c to rs

CN La b e l:

S_ATA1, S_ATA2

CN Typ e :

7-pin SATA connector

CN Lo c a tio n :

The two SATA 6Gb/s drive connectors are each connected to a SATA 6Gb/s drive. The

SATA 6Gb/s drives transfer data at speeds as high as 6Gb/s.
